Baomain
Baomain Red Insulated Fork Spade Wire Connector Electrical Crimp Terminal 16-22AWG #8 USA Screw 100 Pack
See current price
Check the current price and availability on Amazon.com.
View on AmazonAffiliate link — we may earn a commission at no extra cost to you. Learn more
- Gauge
- 18.0
- Connector Type
- Crimp
- Contact Material
- Copper
- Insulation Material
- Polyvinyl Chloride
Key features
- Cable size: 0.5-1.5mm²(AWG 22-16)
- Max current: Imax=19A
- Insulation: Vinyl, Terminal Body: Copper

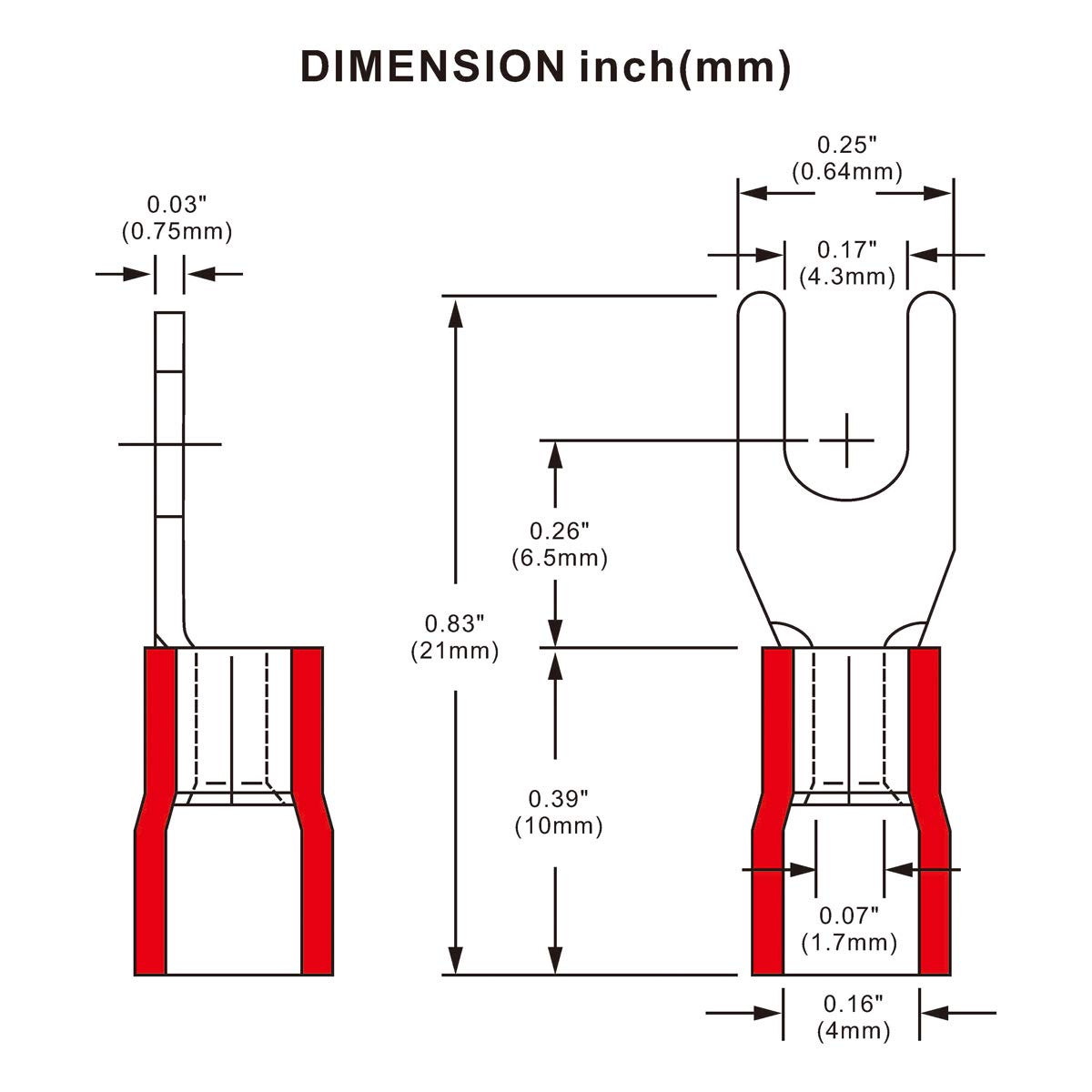

- USA screw: #8, screw dia.(mm): 4.3(.169")
- Package Content: 100 x Terminal
Specifications
| Color | Red |
|---|---|
| Gauge | 18.0 |
| Connector Type | Crimp |
| Contact Material | Copper |
| Insulation Material | Polyvinyl Chloride |
| Package Dimensions | 3.39 x 3.11 x 0.63 inches; 1.76 Ounces |
| Item model number | SV 1.25-4S |
| Manufacturer | Baomain |
| ASIN | B01B1753K2 |
About this product
Comply with all relevant European standards Comply with all relevant European standards Allows visual inspection, prevents corrosion, and provided a waterproof seal Allows visual inspection, prevents corrosion, and provided a waterproof seal Can be ideal used in marine and automobile applications Can be ideal used in marine and automobile applications For best results use a hot air gun until it reduces in size and the adhesive flows, filling gaps within the terminal For best results use a hot air gun until it reduces in size and the adhesive flows, filling gaps within the terminal
