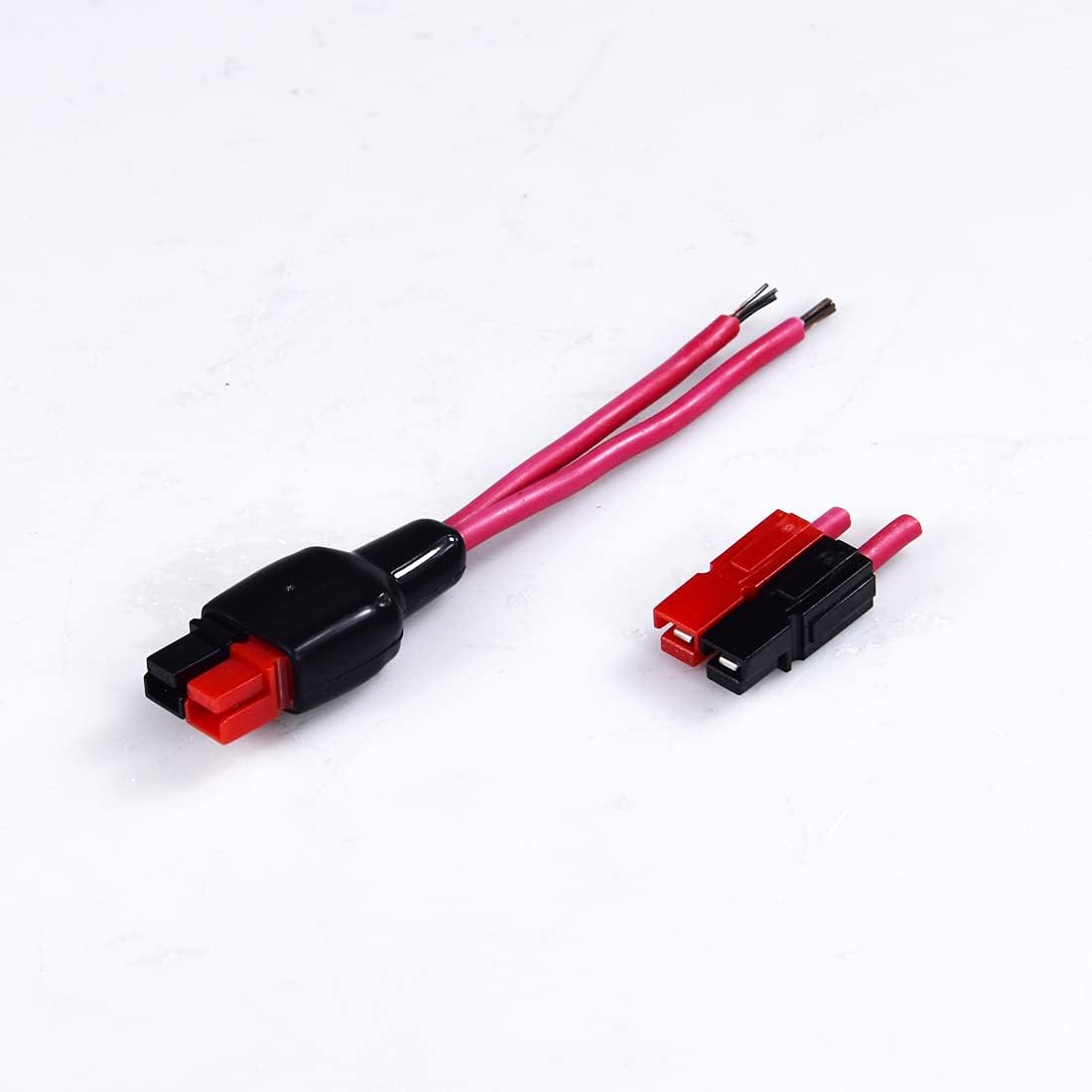

Battery Connector 30A Quick Connect Battery Modular Power Connectors Quick Disconnect (20)

Key features

• Package included: All is included in the first picture.Material: Silver Copper.Rated currents (Amperes): 30 A.Rated Voltage (Volts): 600 V.
• 30 Amp. Suitable for 1.3mm2 -3.3mm2 (16-12 AWG) cables. Medium Contact Resistance (micro ohm): <500. Test Voltage Resistant Insulation (AC / DC Volts): 2200V. Contact Retention Force (lbf) 25lbf.
• No load (contact / disconnect cycles): At 10,000.Under load (Hot Plug 250 cycles @ 120V) .Minimum insertion force (pounds): 3-5lbf.Operating temperature ° C: -20 ° to 105 ° Flammability class of the housing material: UL 94-V0.
• Flat wiping contact system, High Current Minimum Contact Resistance The wiping action cleans the contact surface during connection / disconnection. Colored modular housings, provides a visual identification of the compatible connector.
• Molded Dovetail Ends, Secures Individual Connectors in "Keyed" Assemblies That Prevent Connection Errors With Similar Configurations.Design without sex, makes assembly quick and easy, and reduces the number of parts stored
