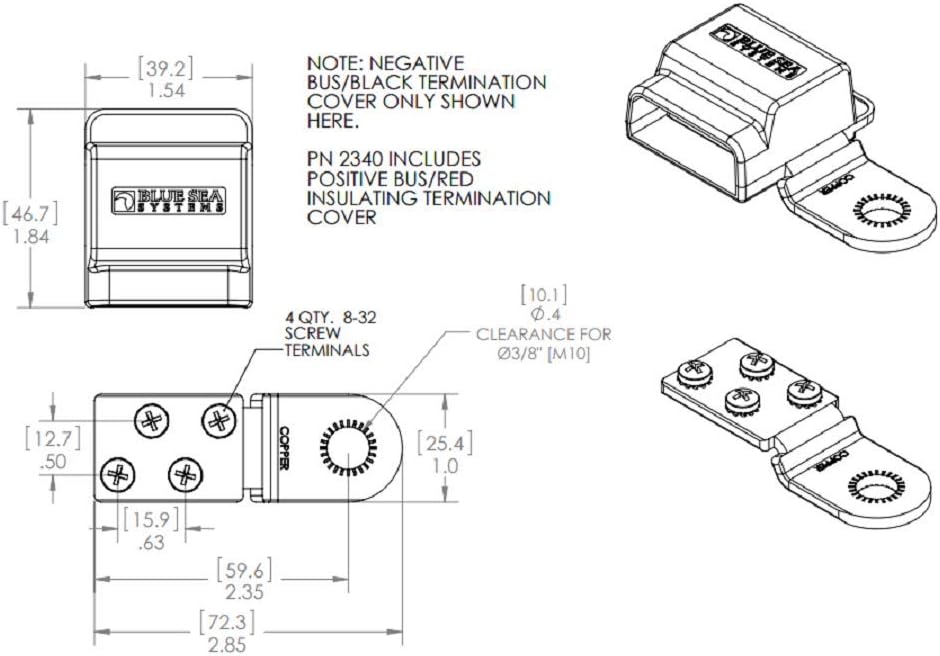

Blue Sea Systems 2340 Battery Terminal Mount Tin-plated Copper BusBars, Positive and Negative with 4 x 10-24" Stainless Screws, 32V, 100A,Red/Black
See current price
Check the current price and availability on Amazon.com.
View on AmazonAffiliate link — we may earn a commission at no extra cost to you. Learn more
- Connector Type
- Screw
- Contact Material
- Copper
- Insulation Material
- Nylon
- Terminal
- Ring Terminal
Key features
- Easily add positive and negative busbars directly to a threaded-post battery terminal
- Max volts: 32V DC, Continuous rating: 100A DC, Screw terminal type: #8-32 Screws with Captive Star Lock washer
- Tin-plated pure electrical copper for maximum conductivity
- Insulating covers meet ABYC/USCG insulation requirements
- Includes four 16-14 AWG and four 12-10 AWG Nylon insulated ring terminals
Specifications
| Color | Red/Black |
|---|---|
| Connector Type | Screw |
| Contact Material | Copper |
| Insulation Material | Nylon |
| Terminal | Ring Terminal |
| Material | Aluminum |
| Brand | Blue Sea Systems |
| Upper Temperature Rating | 60 Degrees Celsius |
| Maximum Voltage | 32 Volts |
| Manufacturer | BLUE SEA SYSTEMS |
| Model | BUSBARS BAT TERM MOUNT POS&NEG |
| Item Weight | 4 ounces |
| Country of Origin | Taiwan |
| Item model number | 2340 |
| Manufacturer Part Number | 2340 |
| Voltage | 32 Volts |
| ASIN | B00T59OLQQ |
About this product
GREAT PRODUCT
