CESFONJER Conductor Terminal Block, Assortment Conductors Compact Wire Connectors, SPL-1 one-to-one Quick Terminal Block Splicing Type Multi-Function Soft and Hard Wire Universal (42 Pack)
See current price
Check the current price and availability on Amazon.com.
View on AmazonAffiliate link — we may earn a commission at no extra cost to you. Learn more
- Connector Type
- Clamp
- Mounting Type
- surface
- Material
- Plastic
- Color
- Spl-1/42pcs
Key features
- ★EASY TO USE - It is no need tools, plug and play, greatly reduce the wiring work time.
- ★PRACTICAL - The voltage range of the connector is from 0.75to 4 mm2, Solid or fine stranded copper wire which is very practical.
- ★Maximum voltage/current- 400V/4KV/ 32A, Dimensions-39.5mm*14.5mm*8.5mm

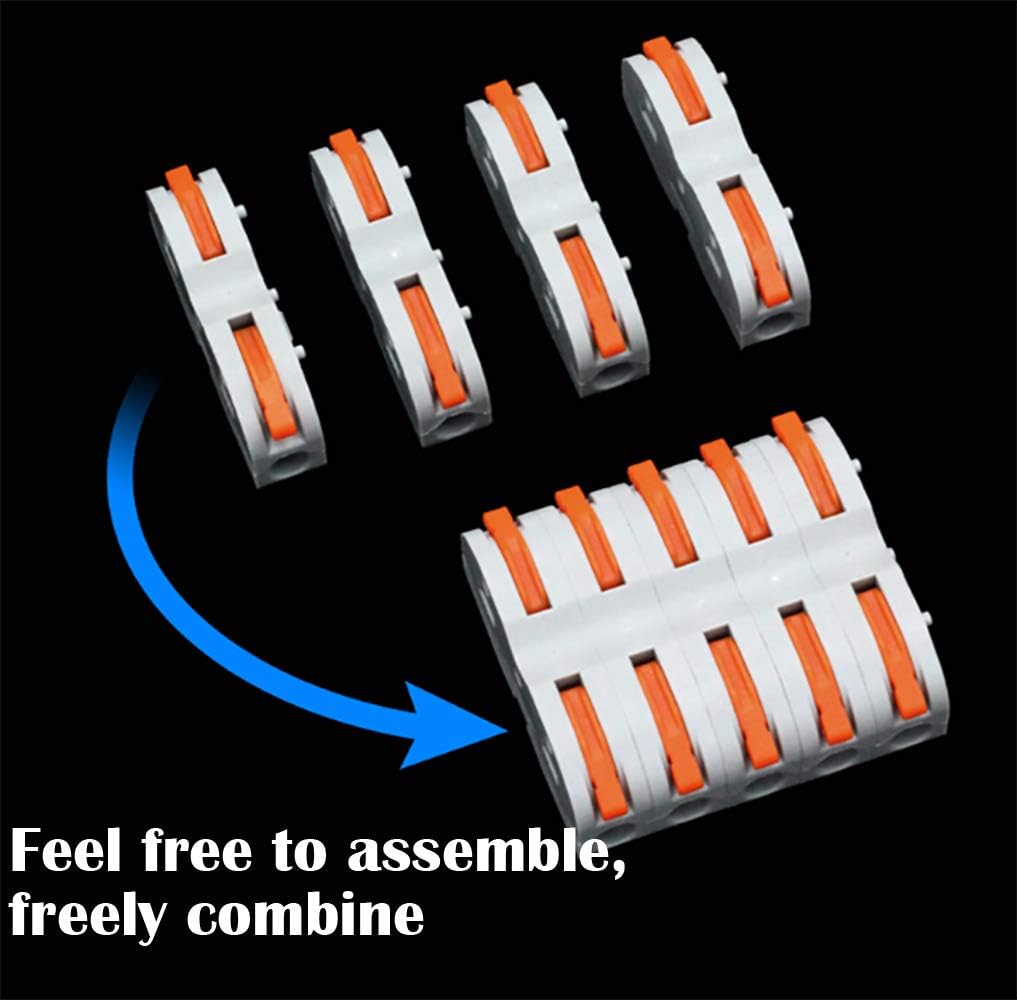

- ★This quick-connect terminal can be spliced with multi-function pressure bar terminals, which can be freely combined according to actual requirements: SPL-2, SPL-3, SPL-4, SPL-5, SPL-6. Combination and disassembly are very simple and fast
- ★SAFE - Selecting the best flame retardant insulating material modified nylon PA6.6, which is long life, no corrosion, anti-aging, pressure 4KV and against electrical shock.
Specifications
| Current Rating | 32 Amps |
|---|---|
| Connector Type | Clamp |
| Mounting Type | surface |
| Material | Plastic |
| Color | Spl-1/42pcs |
| Brand | CESFONJER |
| Voltage | 400 Volts |
| Item Dimensions LxWxH | 0.39 x 0.39 x 0.39 inches |
| Manufacturer | CESFONJER |
| Part Number | J222 |
| Item Weight | 8.8 ounces |
| Product Dimensions | 0.39 x 0.39 x 0.39 inches |
| Item model number | J222 |
| Size | SPL-1/42PCS |
| Item Package Quantity | 1 |
| Measurement System | Metric |
| Batteries Included? | No |
| Batteries Required? | No |
| ASIN | B09CG5S2BC |
About this product
Product description This connector is suitable for lighting equipment and small electrical appliances, is the ideal connector between various types of wire, its clever dragon spring structure ensures the safety and reliability of the electrical connector. How to use 1. Strip wilre lead to 9-10mm 2. Open clamping unit and insert your wire lead 3. Lower lever to close the clamp Specifications Hard wire: 0.75-2.5mm² Soft wire: 0.75-4.0mm² Maximum voltage/current: 400V/4KV/, 32A Product material: Shell: flame retardant PC, internal PA Diversion bar: electrolytic copper (surface tinned spring nickel-chromium alloy steel) Wiring length: 9-10mm Dimensions: 39.5mm*14.5mm*8.5mm Package include 42 x SPL-1 1*（transparent plastic storage box） 100% Satisfaction Guarantee: ● If the goods are defective or have other problems, please feel free to contact us by email. ● We will try our best to meet your needs. ● We will answer your questions as soon as possible. ● If you are not satisfied with our products, we can give you a 100% refund. ● We strive to provide you with the best quality products and the best products. service, your satisfaction is our highest priority!
