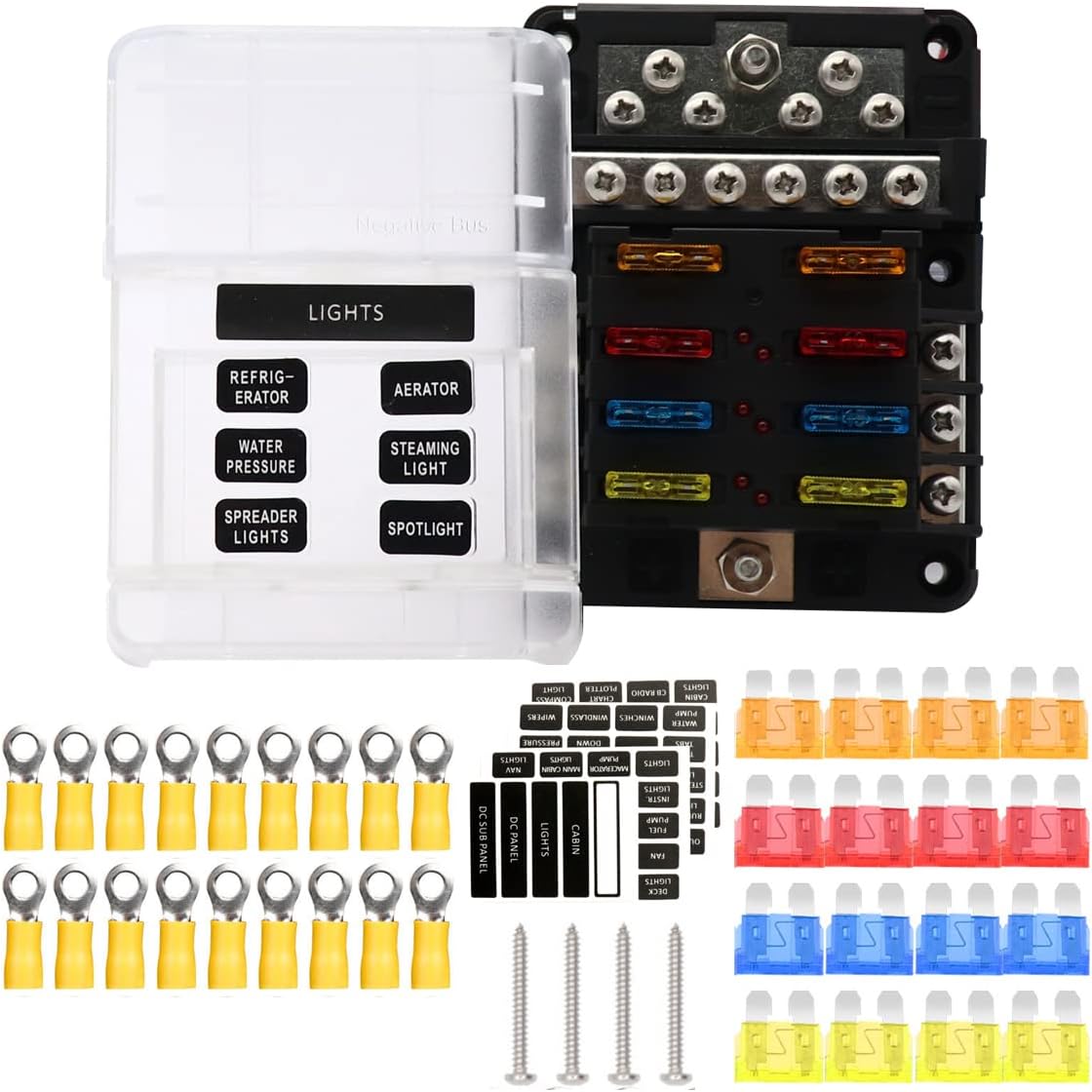

Fuse Block with Negative Busbar Boat Camper Car Solar 6way fuses Block + 12 Way Distribution Block Truck RV Automotive Fuse Box 12 Volt - 32 Volt DC Fuses Panel
See current price
Check the current price and availability on Amazon.com.
View on AmazonAffiliate link — we may earn a commission at no extra cost to you. Learn more
- Gauge
- 16.0
- Connector Type
- Screw
- Material
- Copper
- Brand
- TIYANG
Key features
- 6 way fuse block with negative busbar, modular design,12 way busbar,Red LED indicator light will illuminate immediately when the corresponding fuse is blown.
- This fuse box has PBT Base,mechanically strong,insulated,heat resistant and flame resistant.Resistant to high and low temperatures,There will hardly cause any issue like produce fracture, deformation, combustion and short circuit phenomenon
- The fused distribution block Nickel plated copper stud and electric device labels,You can quickly find which device is going wrong
- Fuse block for boat,car,camper,travel trailer,solar set up,automotive,truck,bus,RV,ships,marine,solar panel etc
- Package include:1 x Fuse block, 4 x 5A fuse, 4x 10A fuse,4 x 15A fuse,4 x 15A fuses ,2 x labels,4 x screws,18x connectors
Specifications
| Current Rating | 100 Amps |
|---|---|
| Gauge | 16.0 |
| Connector Type | Screw |
| Material | Copper |
| Brand | TIYANG |
| Voltage | 32 Volts |
| Item Dimensions LxWxH | 3.62 x 3.35 x 1.4 inches |
| Manufacturer | TIYANG |
| Item Weight | 7.2 ounces |
| Product Dimensions | 3.62 x 3.35 x 1.4 inches |
| Manufacturer Part Number | TY176-N |
| ASIN | B07XYRGH2L |
About this product
Specifications Main line Evaluation of the terminal: M5 stud (100A 32V DC.max). Wire size: #4-6 AWG Single line Evaluation of the terminal: M4 stud bolt (30A 32V DC.max). Wire diameter: #12-16 AWG. Material: Base:PBT Cap:PC Terminal:Nickel plated copper Screw:Stainless steel Label:PP×70 Package Including: 1 x fuse block4 x 5A fuses 4 x 10A fuses 4 x 15A fuses 4 x 15A fuses 2 x labels 4 x screws 18x connectors
