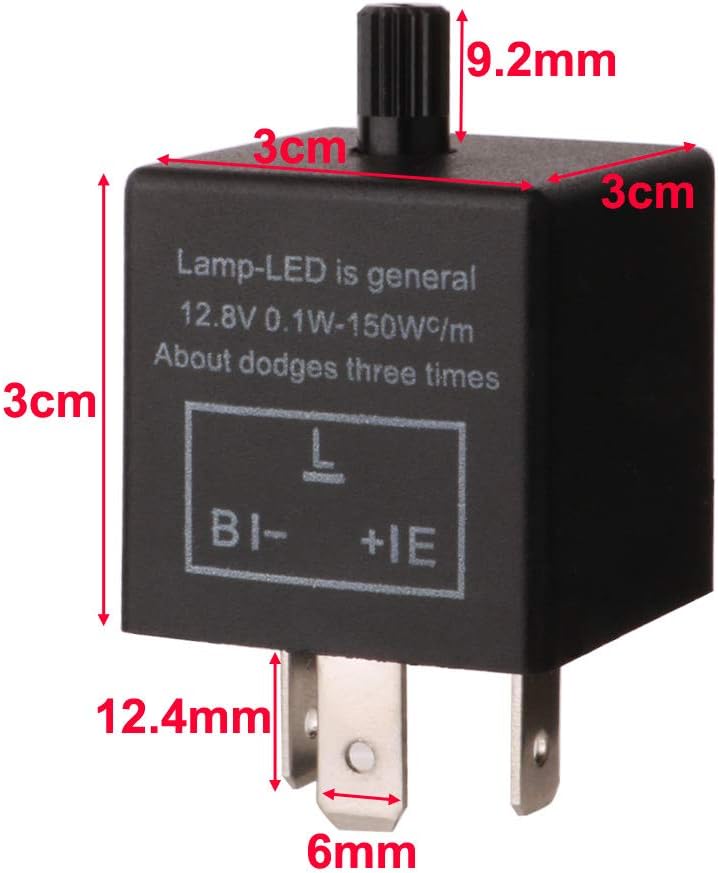

Gebildet 2 pieces 12V 3 Pin Electronic LED Flasher Relay 0.1W-150W c/m Motorcycle Turn Signal Adjustable Flasher CF-14KT, comes with 6pcs Terminals
See current price
Check the current price and availability on Amazon.com.
View on AmazonAffiliate link — we may earn a commission at no extra cost to you. Learn more
- Current Rating
- 20 Amps
- Brand
- Gebildet
- Wattage
- 150 watts
- Contact Current Rating
- 20 Amps
Key features
- ✪Package: 2 pcs 3 Pin LED flasher relay CF-14KT+6 pcs blue wire connector
- ✪ Versatile: The electronic blinker relay can handle 0.1W - 150W ordinary bulb or LED light, will solve LED related turn signal indicator problems such as hyper flashing, not flashing, or just replace a failed relay. Suit for 12V automobile, motorcycle universal LED lights
- ✪Frequency can be adjusted within 55-93 times / minute, self utilized to turn on it, very convenient
- ✪Rated Voltage: 12VDC, Operating Voltage: 8V-12.8V, max current: 20A, Life Time: Rated 400 hours continuous use
- ✪The turn signal flasher relay is high sensitive, stable electronic timing, wide operating voltage, temperature range and long life.
Specifications
| Contact Type | Normally Open |
|---|---|
| Current Rating | 20 Amps |
| Brand | Gebildet |
| Wattage | 150 watts |
| Contact Current Rating | 20 Amps |
| Maximum Switching Current | 20 Amps |
| Upper Temperature Rating | 80 Degrees Celsius |
| Manufacturer | Gebildet |
| Item Weight | 2.08 ounces |
| Package Dimensions | 4.65 x 3.94 x 1.69 inches |
| Country of Origin | China |
| Manufacturer Part Number | E285 |
| ASIN | B0BK7WLCGN |
About this product
Package including 2pcs LED flasher Relay 6pcs blue wire connector Features: ✪Suitable for flasher light during car turning； ✪High sensitive and stable electronic timing； ✪Wide operating voltage, temperature range and long life ✪Standard terminals, usage and Replacement easily； ✪With ticking sound when it works, no buzzing Technical Data: Life Time:400 hours continuous use. Rated Voltage:12VDC Operating Voltage:8VDC ~ 12.8VDC Switch Load: 0.1W ~ 150W (0.02A ~ 20A) Max Power:150W Flashing Frequency:55 ~ 93 times per minute Operating Temperature:-40°C ~ +80°C
