Ginsco 200 Pcs/100 Pairs T-Tap Quick Splice Wire Terminals Self-Stripping with Nylon Fully Insulated Male Quick Disconnects Kit 22-10 AWG
See current price
Check the current price and availability on Amazon.com.
View on AmazonAffiliate link — we may earn a commission at no extra cost to you. Learn more
- Terminal
- Spade Terminal
- Brand
- Ginsco
- Temperature Rating
- 257 degree fahrenheit
- Product Dimensions
- 8.54 x 7.36 x 0.71 inches; 11.36 Ounces
Key features
- Package included - Red: 40pcs+40pcs , Blue: 40pcs+40pcs, Yellow: 20pcs+20pcs

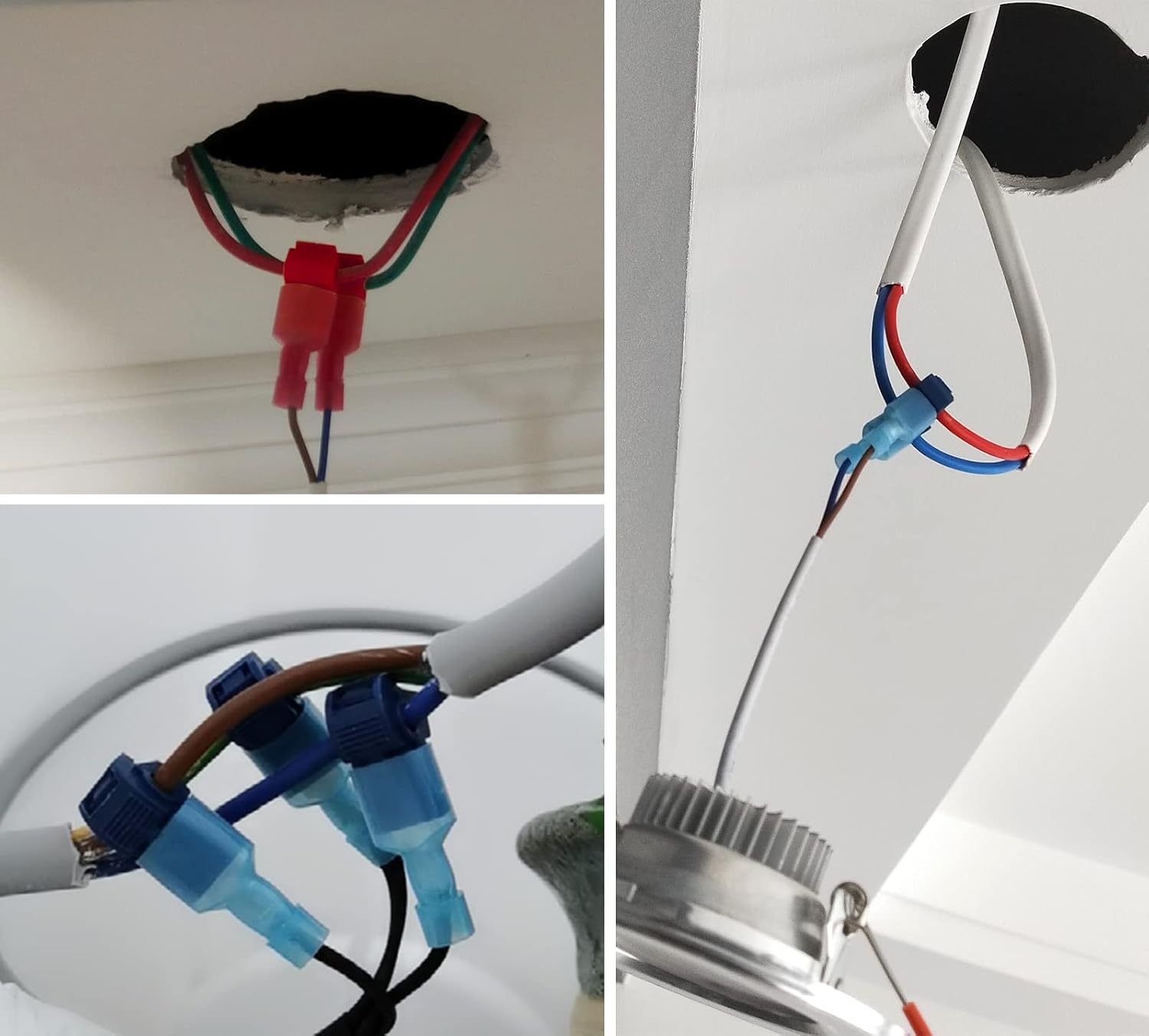

- Use these Self-Stripping Electrical Tap Connectors to electrically tap into a wire in mid-span without cutting or stripping the wire.
- Use with the male quick disconnect for easy safe splicing into wires.
- Prevents the wire from shorting out.
- All packed in a plastic container for easy storage and carry.
Specifications
| Connector Type | Spade |
|---|---|
| Terminal | Spade Terminal |
| Brand | Ginsco |
| Temperature Rating | 257 degree fahrenheit |
| Product Dimensions | 8.54 x 7.36 x 0.71 inches; 11.36 Ounces |
| Item model number | 22 10 awg |
| Manufacturer | Ginsco |
| ASIN | B0B96DMLQ9 |
About this product

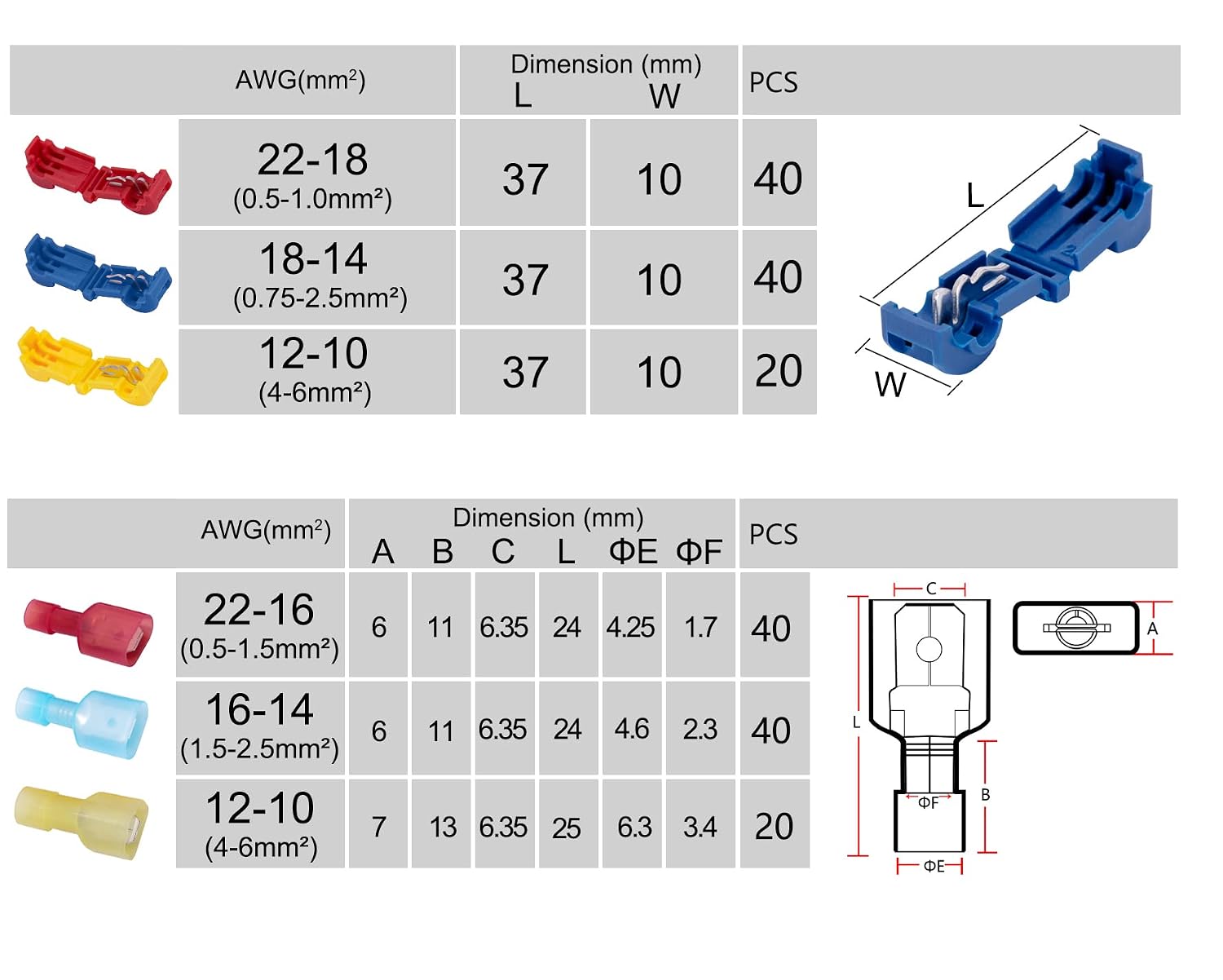

Package includes: 40 x T-Tap Wire Terminals Red 22-18 AWG Width:10mm , Length: 37mm. Wire Range: 0.5-1.0mm² Max Current: 10A 40 x Male Spade Connector Red 22-16 AWG Wire Range: 0.5-1.5mm² Max Current: 10A 40x T-Tap Wire Terminals Blue 18-14 AWG Width:10mm , Length: 37mm. Wire Range: 0.75-2.5mm² Max Current: 15A 40 x Male Spade Connectors Blue16-14 AWG Wire Range: 1.5-2.5mm² Max Current: 15A 20 x T-Tap Wire Terminals Yellow 12 AWG Width:10mm , Length: 37mm. Wire Range: 4-6mm² Max Current: 20A 20 x Male Spade Connectors Yellow 12-10 AWG Wire Range: 4-6mm² Max Current: 24A
