Ginsco 252pcs 26-10 AWG 4 Size Heat Shrink Wire Butt Connectors DIY Kit Waterproof Marine Automotive Terminals Set
See current price
Check the current price and availability on Amazon.com.
View on AmazonAffiliate link — we may earn a commission at no extra cost to you. Learn more
- Connector Type
- Butt Splice
- Contact Material
- Copper
- Insulation Material
- Polyolefin
- Terminal
- Butt Terminal
Key features
- Gauge sizes run from 22 gauge to 10 gauge with the heat shrink connectors color following the industry standard wire range.
- The barrel made of Red Copper，guarantees the crimping is solid and high current flow.
- Shrinkage ratio 3：1. Adhesive inside the insulation that seals tightly against the wire to help to make the connection firmly, which in turn helps prevent corrosion.
- The heat shrink tubing is adhesive lined to prevent water from penetrating, making them ideal for marine and off-road applications.
- Widely used in car, motorcycle, vehicle, marine, home wiring, stereo, lights installation project.
Specifications
| Gauge | 10.0 |
|---|---|
| Connector Type | Butt Splice |
| Contact Material | Copper |
| Insulation Material | Polyolefin |
| Terminal | Butt Terminal |
| Product Dimensions | 2.05 x 1.02 x 0.87 inches; 15.2 Ounces |
| Item model number | 252ZJ |
| Manufacturer | Generic |
| ASIN | B09WDGLP29 |
About this product

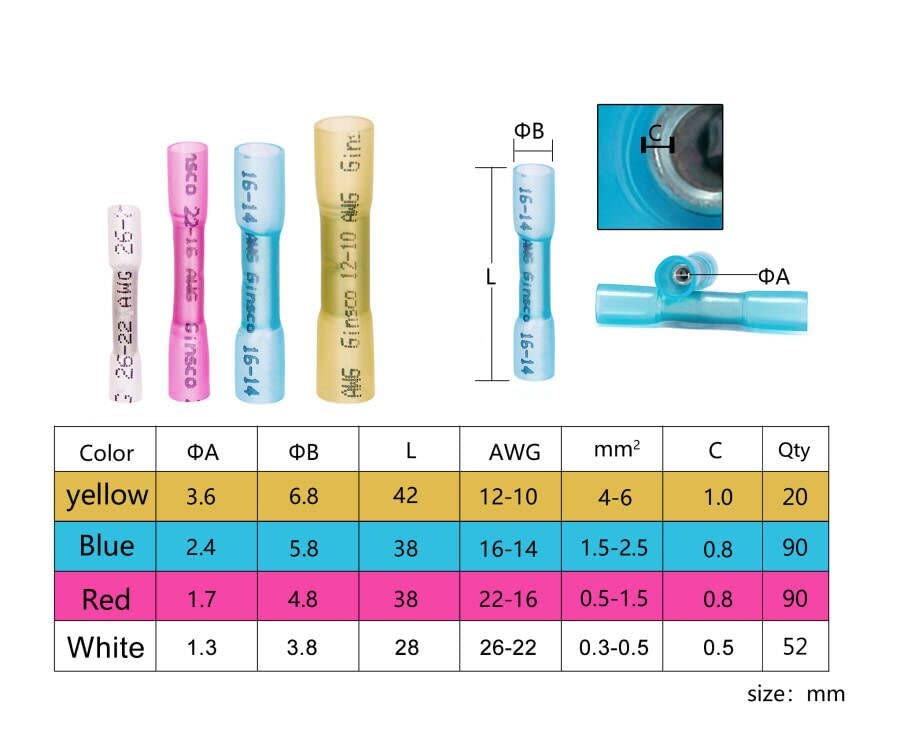

SPECIFICATIONS: Package includes: 52 x 26-22 Gauge Heat Shrink Butt Connectors White Diameter: 1.3mm , Length: 28mm. Wire Range: 0.3-0.5mm² 90 x 22-16 Gauge Heat Shrink Butt Connectors Red Diameter: 1.7mm , Length: 38mm. Wire Range: 0.5-1.5mm² 90 x 16-14 Gauge Heat Shrink Butt Connectors Blue Diameter: 2.4mm , Length: 38mm. Wire Range: 1.5-2.5mm² 20 x 12-10 Gauge Heat Shrink Butt Connectors Yellow Diameter: 3.6mm, Length: 42mm. Wire Range: 4-6 mm² 1 x Plastic Case Shrinkage Ratio: 3:1 Operating temperature: -65 °F -255 °F Start shrink temperature: 176 ℉ Fully shrink temperature: 266 ℉
