insco 120 Pcs/60 Pairs Quick Splice Wire Terminals T-Tap Self-Stripping with Nylon Fully Insulated Male Quick Disconnects Kit
See current price
Check the current price and availability on Amazon.com.
View on AmazonAffiliate link — we may earn a commission at no extra cost to you. Learn more
- Connector Type
- Spade
- Insulation Material
- Nylon
- Terminal
- Spade Terminal
- Material
- Copper
Key features
- Easy identification-Color-coded tubing makes it easy to identify the right size of the connector for every application.

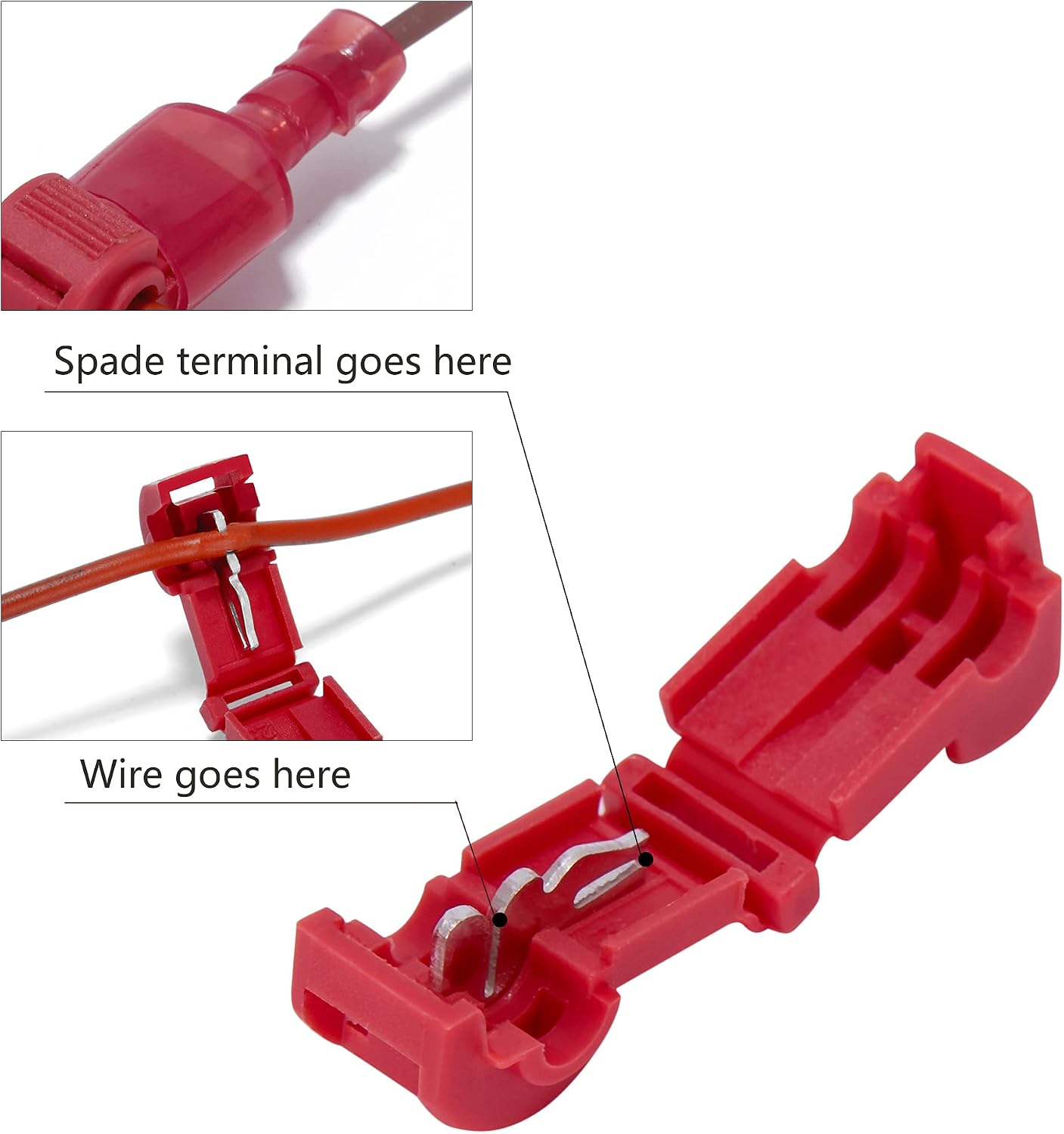

- Use these Self-Stripping Electrical Tap Connectors to electrically tap into a wire in mid-span without cutting or stripping the wire.
- Use with the male quick disconnect for easy safe splicing into wires.
- Prevents the wire from shorting out.
- Package Included: 60 X T-Tap Wire Terminals + 60 X Male Spade Connector. With a Plastic Storage Cace.
Specifications
| Color | Multicolored |
|---|---|
| Connector Type | Spade |
| Insulation Material | Nylon |
| Terminal | Spade Terminal |
| Material | Copper |
| Brand | Ginsco |
| Temperature Rating | 257 degree fahrenheit |
| Manufacturer | Generic |
| Part Number | 0402508-A026L |
| Item Weight | 7.2 ounces |
| Package Dimensions | 8.2 x 4.6 x 1.2 inches |
| Size | 22-10AWG |
| Item Package Quantity | 120 |
| Measurement System | Metric, Imperial |
| Batteries Included? | No |
| Batteries Required? | No |
| ASIN | B01CDWC60Y |
About this product
Package Included: 60 X T-Tap Wire Terminals (Red=20pcs, Blue=20pcs, Yellow=20pcs) Red: AWG:22-18; Wire range: 0.5-1.5mm²; Max current:10A; Length:3.5cm/1.4" Blue: AWG:18-14; Wire range: 1.5-2.5mm²; Max current:15A; Length:3.5cm/1.4" Yellow:AWG:12-10; Wire range: 2.5-4.0mm²; Max current:24A; Length:3.7cm/1.46" 60 X Male Spade Connector (Red=20pcs, Blue=20pcs, Yellow=20pcs) Red:0.5-1.5mm² Blue:2.5-4.0mm² Yellow:4.0-6.0mm²
