Prime-Line SP 9618 Extension Spring, 5/8 inch by 3-1/4 inch - .072 Diameter (2-pack), Nickel
  • Prime-Line SP 9618 Extension Spring, 5/8 inch by 3-1/4 inch - .072 Diameter (2-pack), Nickel
  • Prime-Line SP 9618 Extension Spring, 5/8 inch by 3-1/4 inch - .072 Diameter (2-pack), Nickel

Prime-Line· All Prime-Line Door Hardware & Locks →

Prime-Line SP 9618 Extension Spring, 5/8 inch by 3-1/4 inch - .072 Diameter (2-pack), Nickel

See current price

Check the current price and availability on Amazon.com.

View on Amazon

Affiliate link — we may earn a commission at no extra cost to you. Learn more

Part Number
SP 9618
Item Weight
1.6 ounces
Product Dimensions
0.63 x 0.63 x 3.25 inches
Country of Origin
Taiwan

Key features

  • For use in a variety of applications; appliances, automotive, marine, toys, tools, mechanical devices, contraptions and more
  • These extension springs are designed with single loop open ends for easy and reliable fastening to fixed and moving parts

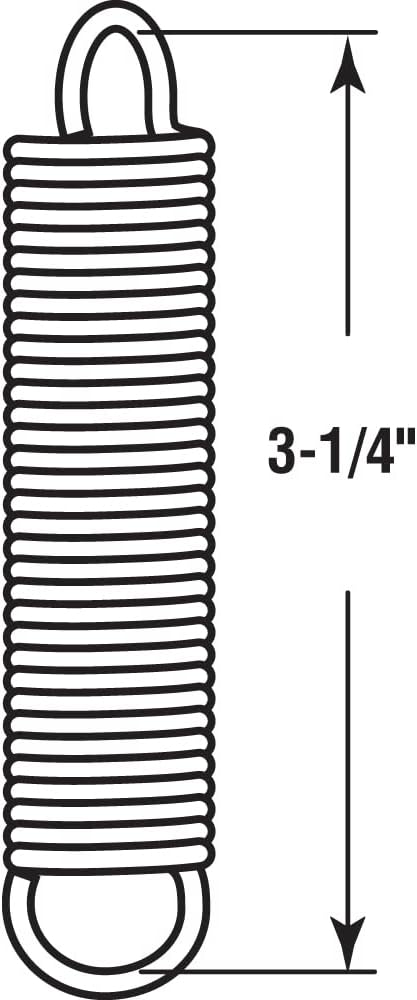

  • Spring dimensions: 5/8 in. outside diameter, 3-1/4 in. length, 0.072 in. wire diameter, 19.1 lbs. maximum safe load, 2.01 in. maximum deflection
  • All springs come in a beautiful, corrosion resistant, nickel plated finish allowing them to be used both indoors and out
  • Constructed of durable spring steel (tempered steel wire) to provide optimum retraction when stretched
  • Designed for use with a variety of household and professional applications

Specifications

ManufacturerPrime-Line Products
Part NumberSP 9618
Item Weight1.6 ounces
Product Dimensions0.63 x 0.63 x 3.25 inches
Country of OriginTaiwan
Item model numberH 3517
Size5/8 in. x 3-1/4 in.
ColorNickel
FinishNickel
MaterialAlloy Steel
Item Package Quantity1
Number Of Pieces2
Cutting Diameter0.63 Inches
Measurement SystemWire_size, Inch
Included ComponentsExtension Spring
Batteries Included?No
Batteries Required?No
Warranty DescriptionGoods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.
Assembled Diameter0.63 Inches
Domestic ShippingItem can be shipped within U.S.
International ShippingThis item can be shipped to select countries outside of the U.S. Learn More
Pin typeSpring
BrandPRIME-LINE
Item Diameter0.63 Inches
ASINB008RG9E0Q

About this product

Product Description These Handyman Single Loop Closed Extension Springs by Prime-Line Products are constructed of durable spring steel, and they come finished in a beautiful, corrosive-resistant, nickel-plated finish. Springs like these are used for a variety of household and professional applications, and they feature a generous deflection length of 2.01 inches. These springs are easy to install and are used by many. The outside diameters, lengths and gauge thicknesses vary between each of these springs, while their dependability does not. Use these springs for repairs around the house, in the office, vehicle, garage and in many other applications. From the Manufacturer This extension spring is constructed from .072 gauge heat tempered steel spring wire. It features an outside diameter of 5/8 in. and a length of 3-1/4 in. Used for a variety of household applications.
