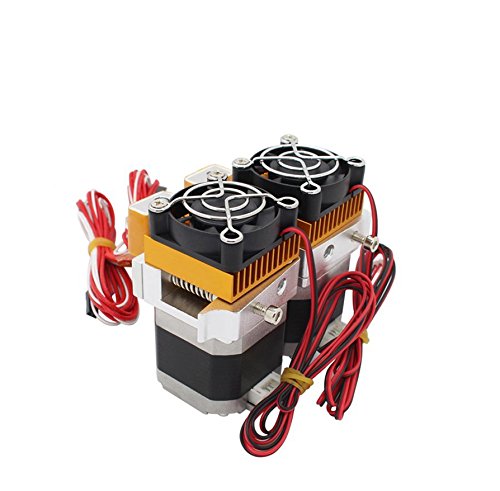

Redrex Assembled MK8 Extruder 0.2/0.3/0.4/0.5mm Print Nozzle Hotend for MakerBot Prusa i3 Reprap 3D Printer (Dual MK8 extruder)
See current price
Check the current price and availability on Amazon.com.
View on AmazonAffiliate link — we may earn a commission at no extra cost to you. Learn more
- Finish Type
- Finished
- Cutting Angle String
- 1.8 Degrees
- Brand
- REDREX
- Tool Flute Type
- Straight
Key features
- Filament Compatibility: 1.75mm PLA/ABS/Flexible/Wood/Others.
- High torque nema 17 stepper:It provides 1.5A 40Ncm/57.1 oz.in holding torque..
- Extruder throat nozzle with PTFE tube liner inside.
- Special ceramic insulation cotton ensures the stability of heating.
- Dual-extrusion print head,it is able to print two spools filament at the same time.
Specifications
| Material | ceramic, cotton |
|---|---|
| Finish Type | Finished |
| Cutting Angle String | 1.8 Degrees |
| Brand | REDREX |
| Tool Flute Type | Straight |
| Package Dimensions | 6.38 x 5.04 x 4.41 inches; 2.25 Pounds |
| Manufacturer | Redrex |
| ASIN | B01LZP26OJ |
About this product
NOTE: ❤Make sure the maximum temperature is less than 280°C ❤It is NOT compatible with Makerbot clones, including Qidi and Flashforge Creator Pro. ❤It works good with Mendal Prusa i3 and some other DIY 3d printers,the possibilities are only limited by your imagination. ❤Highly recommend to those enthusiasts who have solid background and knowledges in 3d printers. Specification: Filament Compatibility: 1.75mm PLA/ABS/Flexible/Wood/Others Nozzle size: Standard 0.4mm Nozzle flow rate: about 24cc / h Power supply voltage: 12V Thermistor: 3950 NTC 100K Stepper motor: Nema 17 Bipolar Stepper Number of Phase: 2 Step Angle: 1.8 deg. Rate Voltage: 3.3V DC Holding Torque:1.5A Phase Resistance: 2.2ohms±10%（20℃） Phase Inductance: 3.8mH±20%(1KHz) Rotor inertia:57g.cm² Stepper drive gear: 26 teeth Ceramic cartridge heater : 12V, 40W Normal working temperature: 190°-230° c Cooling fan: 40×40×15mm, 12V Weight: 975g Package List: 1x Dual MK8 Extruder
