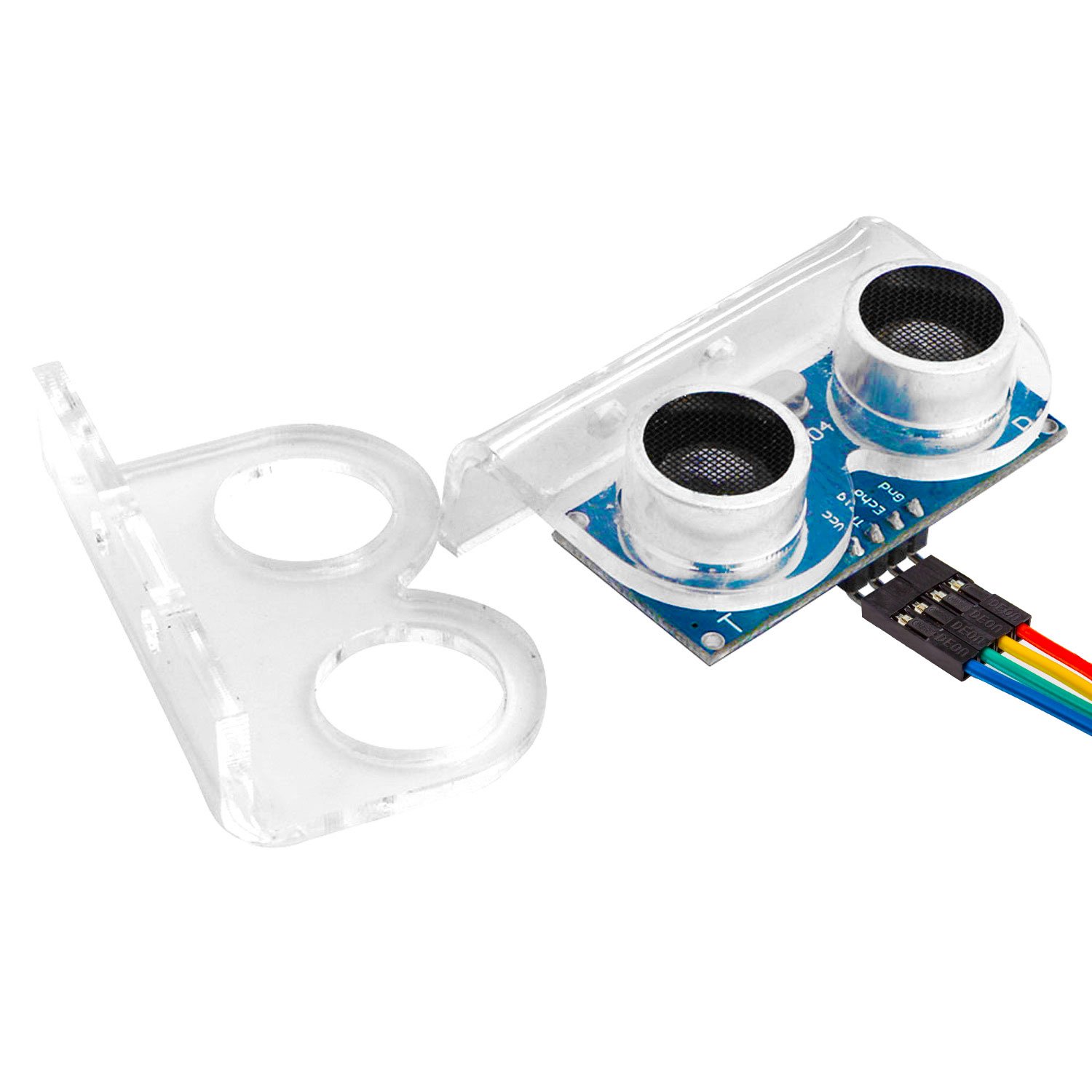

Smraza 5pcs Ultrasonic Module HC-SR04 Distance Sensor with 2pcs Mounting Bracket for Arduino R3 MEGA Mega2560 Duemilanove Nano Robot XBee ZigBee
See current price
Check the current price and availability on Amazon.com.
View on AmazonAffiliate link — we may earn a commission at no extra cost to you. Learn more
- Number Of Contacts
- 1
- Color
- Blue
- Brand
- Smraza
- Voltage
- 5 Volts
Key features
- Test mode :Using IO trigger for high level signal.( Not less that 10us),The Module sends eight 40 kHz automatically and detect whether there is a pulse signal back.
- The detection zone: 0.78~196 in/ (2cm~500cm); High precision: up to 0.12 in/(0.3 cm) Effectual angle: less than 15°
- Power supply: 5V DC; Quiescent current: less than 2mA.
- Test distance = ((Duration of high level)*(Sonic :340m/s))/2
- Package included: 5pcs HC-SR04+ 2pcs Mounting Bracket(support HC-SR04 only)
Specifications
| Gauge | 10 |
|---|---|
| Number Of Contacts | 1 |
| Color | Blue |
| Brand | Smraza |
| Voltage | 5 Volts |
| Item Dimensions LxWxH | 4.92 x 3.35 x 1.73 inches |
| Specification Met | Ma |
| Product Dimensions | 4.92 x 3.35 x 1.73 inches; 3.2 Ounces |
| Item model number | S03sF |
| Manufacturer | Smraza |
| Country of Origin | China |
| ASIN | B0C5GQYB42 |
