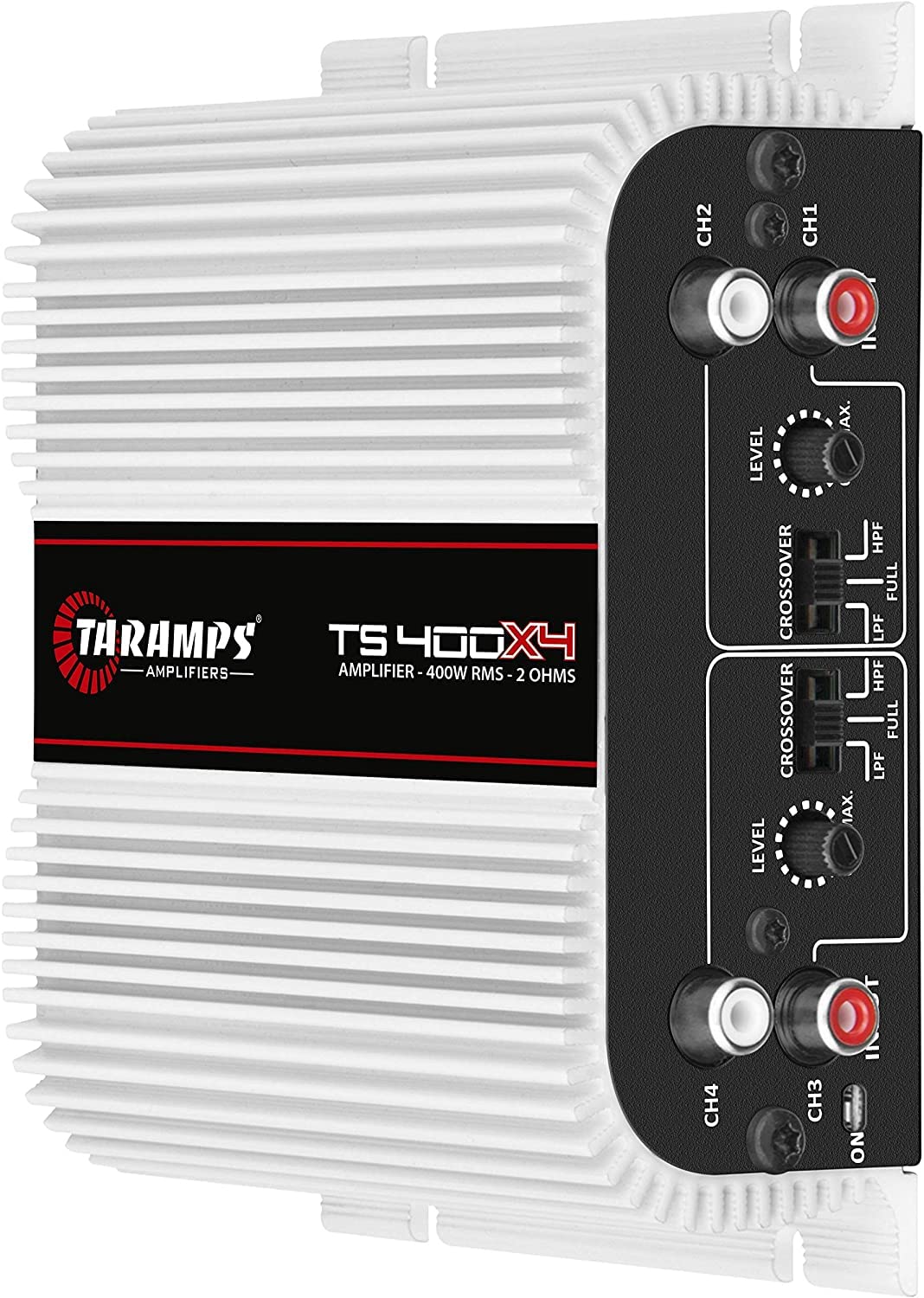

Taramps TS 400x4 FULL RANGE 2 Ohms 400 watts RMS 4 Channels Car Audio Amplifier RCA Input Class D, 2 Bridged Channels, Multichannel Amp, RCA, Aluminium High Power

Key features

• POWER (Power Supply Connector):The connector terminal (+) must be connected to the battery's positive pole with a 4mm² (minimum) wire gauge. The connector terminal (-) must be properly connect to the battery's negative pole with a same wire gauge. The remote terminal must be connected to the Head Unit REMOTE output with a 0.75mm² wire.
• Recommended wire gauge & fuse: Positive / negative power supply cable 11 AWG; Output cables wire gauge 15 AWG; Remote cable 18 AWG; Protection fuse or circuit breaker 20A.
• INPUT: Inputs of signals to be amplified. Connect these signals to RCA outputs of Head Unit, using good quality shielded cables to avoid noise interference.
• LEVEL: It sets the amplifier input sensitivity, which allows an optimal adjustment to the output signals levels of nearly all models of Head Units found in the market
• Short-circuit Protection: Shutdown the amplifier when detect a short- circuit or impedance lower than the supported at the output.
