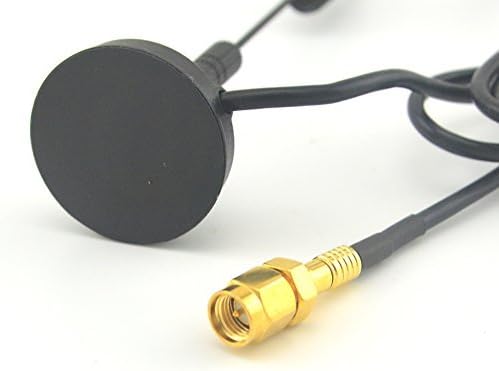

1090Mhz Antenna MCX Plug Connector 2.5dbi Gains Magnet Base ADS-B Aerial with RG174 1M+MCX Female to SMA Male Adapter 1090MHz ADS-B RTL SDR Software Defined Radio USB Stick Dongle Tuner Receiver
See current price
Check the current price and availability on Amazon.com.
View on AmazonAffiliate link — we may earn a commission at no extra cost to you. Learn more
- Item Weight
- 1.13 ounces
- Manufacturer
- onelinkmore
- Country of Origin
- China
- Item model number
- OL-2565-X
Key features
- Frequency Range(MHz): 1090MHz
- connector Adapter: MCX Female to SMA male; Cable Length: 1 Meter; Gain dBi : 2.5(MAX)
- Feature: Magnetic Base Mounting; Impedance: 50 ohm; Direction: Omni-directional;
- Compatible with: used for Software Defined Radio Aviation ADS-B Receiver ATSC DVB-T DVB-T2 TV Radio USB Stick Dongle Tuner
- Package Content: 1 Piece 1090Mhz Antenna with 1 Piece MCX Female to SMA Male Adapter
Specifications
| Product Dimensions | 6 x 2 x 1 inches |
|---|---|
| Item Weight | 1.13 ounces |
| Manufacturer | onelinkmore |
| Country of Origin | China |
| Item model number | OL-2565-X |
| Antenna | Television, Radio |
| Brand | onelinkmore |
| Color | Gold, Black |
| Impedance | 50 Ohm |
| Maximum Range | 1 Meters |
| Item Dimensions LxWxH | 6 x 2 x 1 inches |
| ASIN | B013S8B234 |
About this product
Description: Frequency Range(MHz) 1090 Cable Type: RG174 Max Gain(dBi) 2.5 Max Input power(W) 50 Input Impedance(Ω) 50 Polarization Type Vertical Base diamter: 3cm Cable length: 1 Meter Compatible with: RTL SDR Software Defined Radio SDR ADS-B Receiver USB Stick Dongle Tuner;VSWR: <2.0;Direction: Omni-directional;Feature: Magnetic Base Mounting;Operating Temperature: -20°С ~ +80°СStorage Temperature: -30°С ~ +85°СPackage including : 1 piece Antenna+ 1 piece MCX Female to SMA male adapter
