2.13inch E-Ink Display HAT V3 Version, Black,White Two-Color 250x122 Pixel E-Paper Screen LCD for Raspberry Pi 4B/3B+/3B/2B/Zero W/Zero WH/Zero 2W /Jetson Nano SPI Interface Support Partial Refresh
See current price
Check the current price and availability on Amazon.com.
View on AmazonAffiliate link — we may earn a commission at no extra cost to you. Learn more
- Screen Resolution
- 250 x 122
- Brand
- waveshare
- Item model number
- 2.13inch e-Paper Display HAT
- Item Weight
- 1.13 ounces
Key features
- This is 2.13inch E-Ink display HAT for Raspberry Pi,250x122 resolution, with embedded controller, communicating via SPI interface, supports partial refresh. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.
- No backlight, keeps displaying last content for a long time even when power down Ultra low power consumption, basically power is only required for refreshing Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano.
- Preserved solder pads for SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.Onboard voltage translator, compatible with 3.3V/5V MCUs

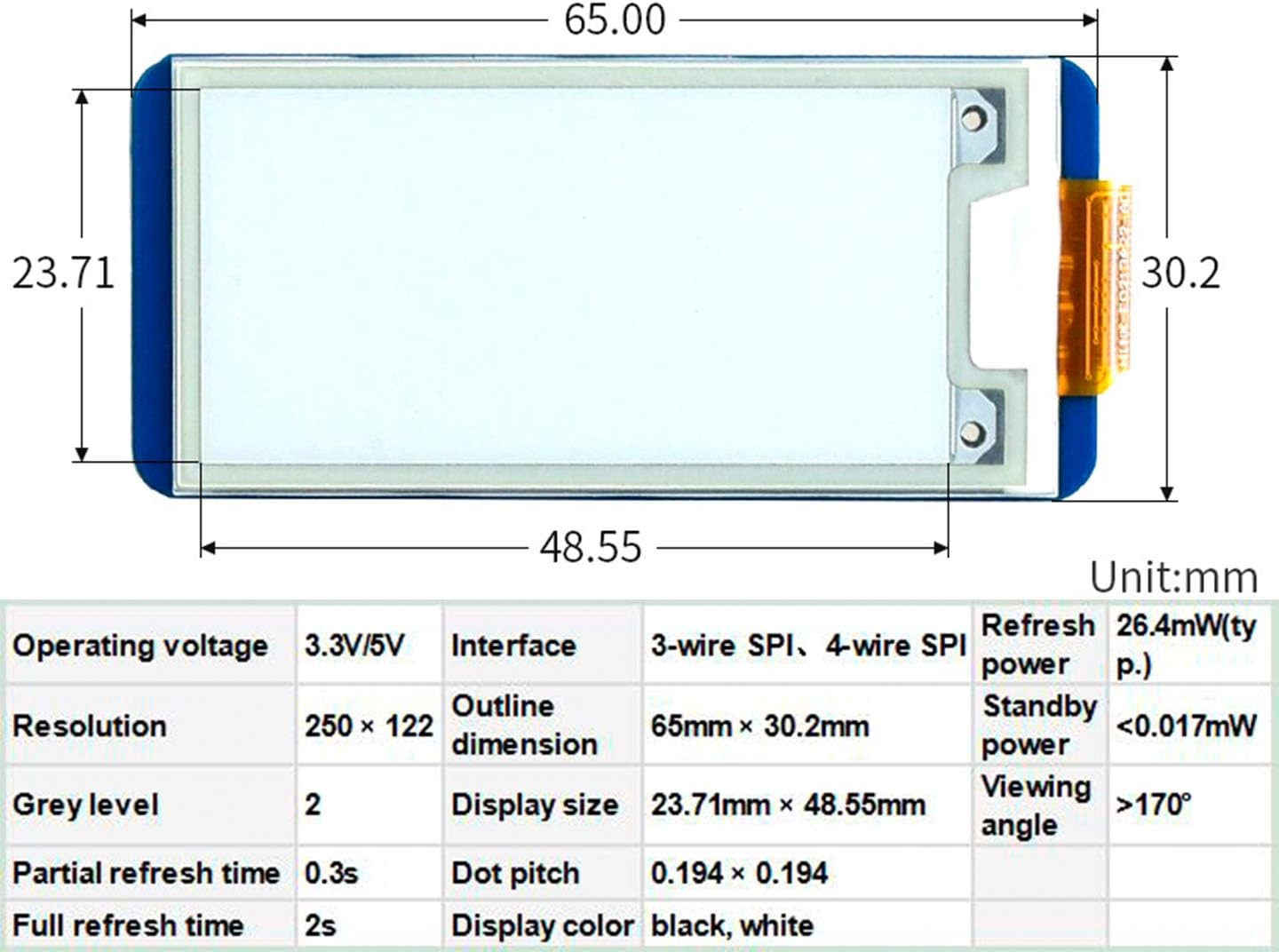

- Operating voltage: 3.3V/5V. Interface: SPI. Outline dimension: 65mm x 30.2mm. Display size: 23.71mm x 48.55mm. Dot pitch: 0.194 x 0.194. Resolution: 250 x 122. Display color: black, white. Grey level: 2. Partial refresh time: 0.3s. Full refresh time: 2s. Refresh power: 26.4mW(typ.). Standby power: <0.017mW. Viewing angle: >170°.
Specifications
| Standing screen display size | 2.13 Inches |
|---|---|
| Screen Resolution | 250 x 122 |
| Brand | waveshare |
| Item model number | 2.13inch e-Paper Display HAT |
| Item Weight | 1.13 ounces |
| Product Dimensions | 1.18"L x 0.79"W x 0.79"H |
| Item Dimensions LxWxH | 1.18 x 0.79 x 0.79 inches |
| Color | 2.13inch e-Paper Display HAT |
| Voltage | 5 Volts |
| Manufacturer | Waveshare |
| Connectivity Technology | GPIO |
| ASIN | B07Z1WYRQH |
About this product
Overview This is an E-Ink display HAT for Raspberry Pi, 2.13inch, 250x122 resolution, with embedded controller, communicating via SPI interface, supports partial refresh. Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on. Features No backlight, keeps displaying last content for a long time even when power down Ultra low power consumption, basically power is only required for refreshing Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc. Onboard voltage translator, compatible with 3.3V/5V MCUs Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32) Specifications Operating voltage: 3.3V/5V Interface: SPI Outline dimension: 65mm × 30.2mm Display size: 23.71mm × 48.55mm Dot pitch: 0.194 × 0.194 Resolution: 250 × 122 Display color: black, white Grey level: 2 Partial refresh time: 0.3s Full refresh time: 2s Refresh power: 26.4mW(typ.) Standby power: <0.017mW Viewing angle: >170° Interface SYMBOL--DESCRIPTION VCC-- 3.3V/5V GND--Ground NC--NC DIN--SPI MOSI pin CLK--SPI SCK pin CS--SPI chip selection, low active DC--Data/Command selection (high for data, low for command) RST--External reset, low active BUSY--Busy status output, high active How-to-use document/User Manual://bit.ly/3hZh77i PACKAGE CONTENT 2.13inch e-Paper HAT x1 RPi screws pack (2pcs) x1 PH2.0 20cm x1
