Fastenere

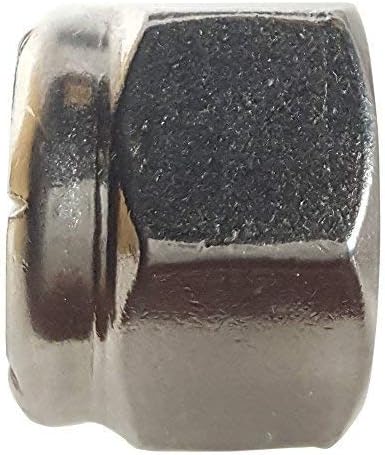

3/8-16 Nylon Insert Hex Lock Nuts, Stainless Steel 18-8, Plain Finish, Quantity 50 by Fastenere
See current price
Check the current price and availability on Amazon.com.
View on AmazonAffiliate link — we may earn a commission at no extra cost to you. Learn more
- Fastener Type
- Lock
- Thread Size
- 3/8-16
- Exterior Finish
- Plain
- Metal Type
- Stainless Steel
Key features
- For use with an externally threaded item that measure 3/8 inch and has 16 threads per inch.
- Width Measured From Flat to Flat 9/16"
- Height 29/64"
- Hex Socket Drive 9/16"
- Fastenere brand Nylon Lock Nuts made of stainless steel grade 18-8 which offers a high level of chemical and corrosion resistance and strength that will out perform and out last all zinc plated fasteners for years with out the need to perform costly and time consuming maintenance.
Specifications
| Material | Stainless Steel |
|---|---|
| Fastener Type | Lock |
| Thread Size | 3/8-16 |
| Exterior Finish | Plain |
| Metal Type | Stainless Steel |
| Finish Type | Plain Finish |
| Drive System | External Hex |
| Brand | Fastenere |
| Item Dimensions LxWxH | 4 x 1 x 6 inches |
| Thread Type | Unc |
| Inside Thread Size | 0.375 inch |
| Size | 3/8-16 (50 Pack) |
| Manufacturer | Fastenere |
| Part Number | 3SNLF906C |
| Item Weight | 13.6 ounces |
| Product Dimensions | 4 x 1 x 6 inches |
| Finish | Plain Finish |
| Item Package Quantity | 50 |
| Measurement System | Inch |
| Batteries Included? | No |
| Batteries Required? | No |
| ASIN | B07BTY8KYG |
About this product
A nyloc nut, also referred to as a nylon-insert lock nut, polymer-insert lock nut, or elastic stop nut, is a kind of locknut. It is a nut with a nylon collar insert that resists turning. The plastic insert is placed at the end of the nut, and its inner diameter (ID) is slightly smaller than the major diameter of the screw. The insert deforms elastically over the threads of the screw, but threads are not cut into the nylon. The nylon insert locks the nut by friction against the screw under the applied radial compressive force. Nyloc nuts retain their locking ability up to 250 °F (121 °C). Authorities disagree on whether nyloc nuts should be reused. For example, Carroll Smith (Carroll Smith's Nuts, Bolts, Fasteners, and Plumbing Handbook) notes that the nylon insert is not damaged by installation and therefore they can be reused many times ,and a Federal Aviation Administration Advisory Circular allows nuts to be reused if the prevailing torque is within specification. However, an Air Force Technical Order requires replacement of self-locking nuts in critical areas.
