ARLINGTON

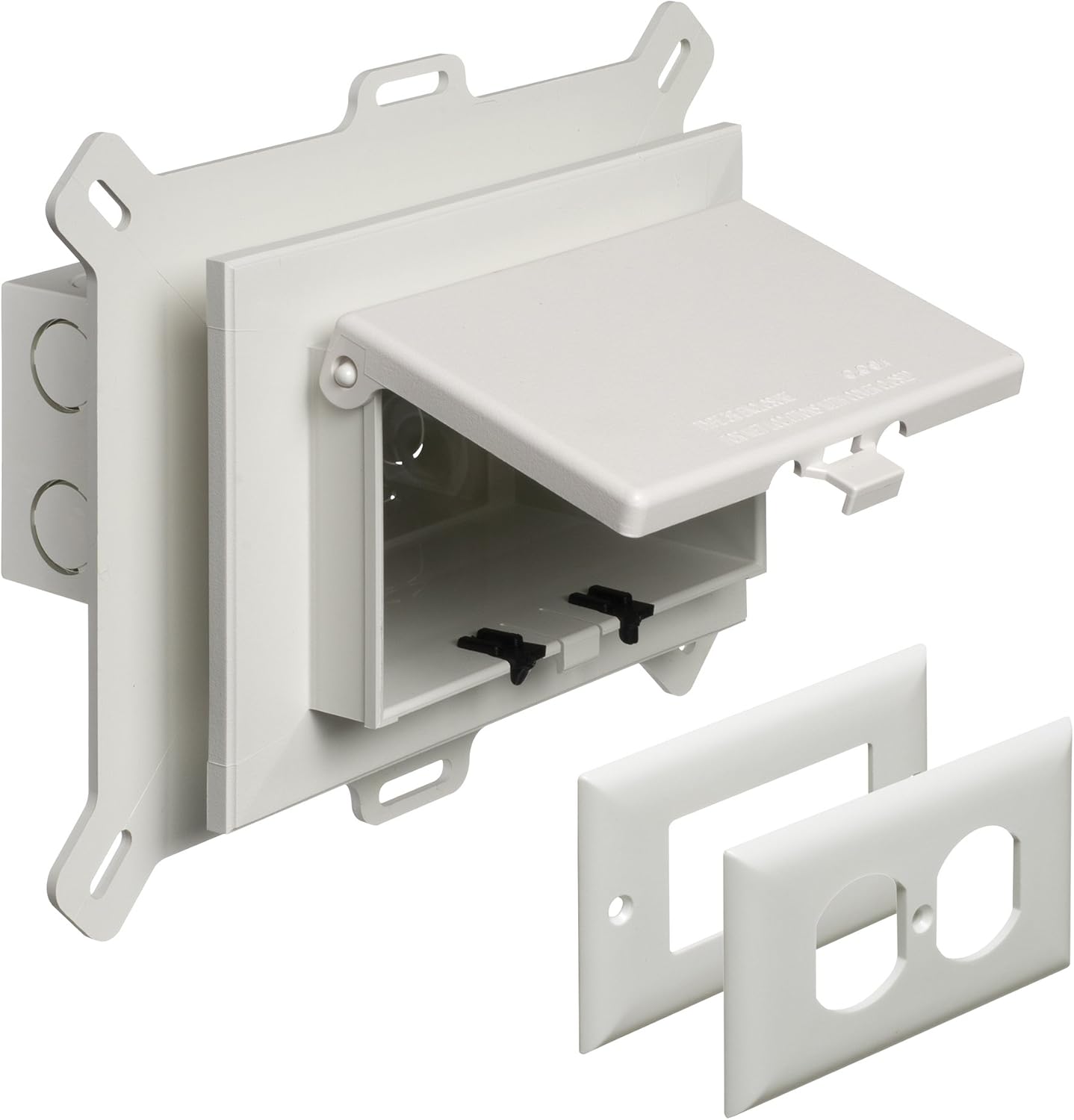

Arlington DBHS1W-1 Low Profile IN BOX Recessed Outlet Box Wall Plate Kit for New Vinyl Siding Construction, Horizontal, 1-Gang, White
See current price
Check the current price and availability on Amazon.com.
View on AmazonAffiliate link — we may earn a commission at no extra cost to you. Learn more
- Brand
- ARLINGTON
- Color
- White
- Style
- Horizontal; 1-Gang
- Item Dimensions LxWxH
- 10 x 8.7 x 6 inches
Key features
- For added convenience, covers are removable for electrical installation. Replace cover upon completion.
- Bug Plugs ship installed to seal unused cord hole openings
- Outer flange covers cut ends of siding
- Includes box with cover, bug plugs, (1) standard duplex and (1) GFCI face plate, installation screws, and NM cable connector
- IN BOX's one-piece assembly replaces the installation of an electrical box and bubble cover assembly
Specifications
| Material | Plastic |
|---|---|
| Brand | ARLINGTON |
| Color | White |
| Style | Horizontal; 1-Gang |
| Item Dimensions LxWxH | 10 x 8.7 x 6 inches |
| Finish Type | Painted |
| Installation Type | Screw-In |
| Manufacturer | Arlington Industries. Inc |
| Part Number | DBHS1W-1 |
| Item Weight | 1.32 pounds |
| Product Dimensions | 10 x 8.7 x 6 inches |
| Item model number | DBHS1W-1 |
| Size | Horizontal/1-Gang |
| Finish | Painted |
| Item Package Quantity | 1 |
| Batteries Included? | No |
| Batteries Required? | No |
| Warranty Description | Limited 1-Year Warranty to cover manufacturer's defects. For product returns, Contact Store First. |
| ASIN | B079TJD4F4 |
About this product
From the Manufacturer Arlington DBHS1W-1 Electrical Box with Weatherproof Cover for Vinyl-Siding, New-Construction, White, Horizontal/1-Gang Low Profile IN BOX for New Vinyl Siding Construction. One-piece, recesses electrical box with weatherproof-in-use cover for new siding applications. Horizontal Non-metallic cover and base. Accepts most single gang wiring devices and uses standard indoor wall plates or a GFCI cover plate. UV rated plastic for long outdoor life. The IN BOX one-piece assembly replaces the installation of an electrical box, siding block, and bubble cover assembly. Installs in the wall, so less of it shows outside. The outer flange covers cut ends of siding. Cover is removable for easier device installation and no gaskets are required. Bug plugs ship installed in the box to seal unused cord hole openings. Box is textured and paintable, UV rated for long outdoor life. Installation instructions: 1. cut a 3-14-Inch x 5-1/2-Inch hole in substrate. pull wiring. 2. Install NM cable connector and wire, attach IN BOX to substrate. 3. Install siding, inserting the cut ends of the siding under the outer flange of the IN BOX. 4. Install wiring device(outlet or switch) per manufacturer's instructions, local and national electrical codes. 5. Accepts most single gang wiring devices and uses a standard indoor wall plate. Limited 1-Year Warranty to cover manufacturer's defects. For product returns, Contact Store First.Keywords:Recessed; outlet; switch; device; outdoor; voltage
