Balun One Nine v1 - Tiny Low-Cost 1:9 HF Antenna Balun and Unun with Antenna Input Protection for Ham It Up, RTL-SDR, HackRF and Other HF-Capable Radios. Great for DIY Dipole and Longwire Antennas

See current price

Check the current price and availability on Amazon.com.

View on Amazon

Affiliate link — we may earn a commission at no extra cost to you. Learn more

Item Weight
6 Grams
Item model number
Balun One Nine
Manufacturer
Nooelec Inc.
Brand
NooElec

Key features

  • 1:9 HF antenna balun for long wire antennas; includes excellent ESD protection on input
  • Great match for attaching a long wire to the Ham It Up
  • Fully assembled, and easy to use
  • Excellent specifications
  • Only 39.2mm x 13.0mm and 5g!

Specifications

Product Dimensions1.57 x 0.39 x 0.39 inches
Item Weight6 Grams
Item model numberBalun One Nine
ManufacturerNooelec Inc.
BrandNooElec
ColorGold, Blue, Grey
Frequency90 MHz
Voltage1 Volts
ASINB00R09WHT6

About this product

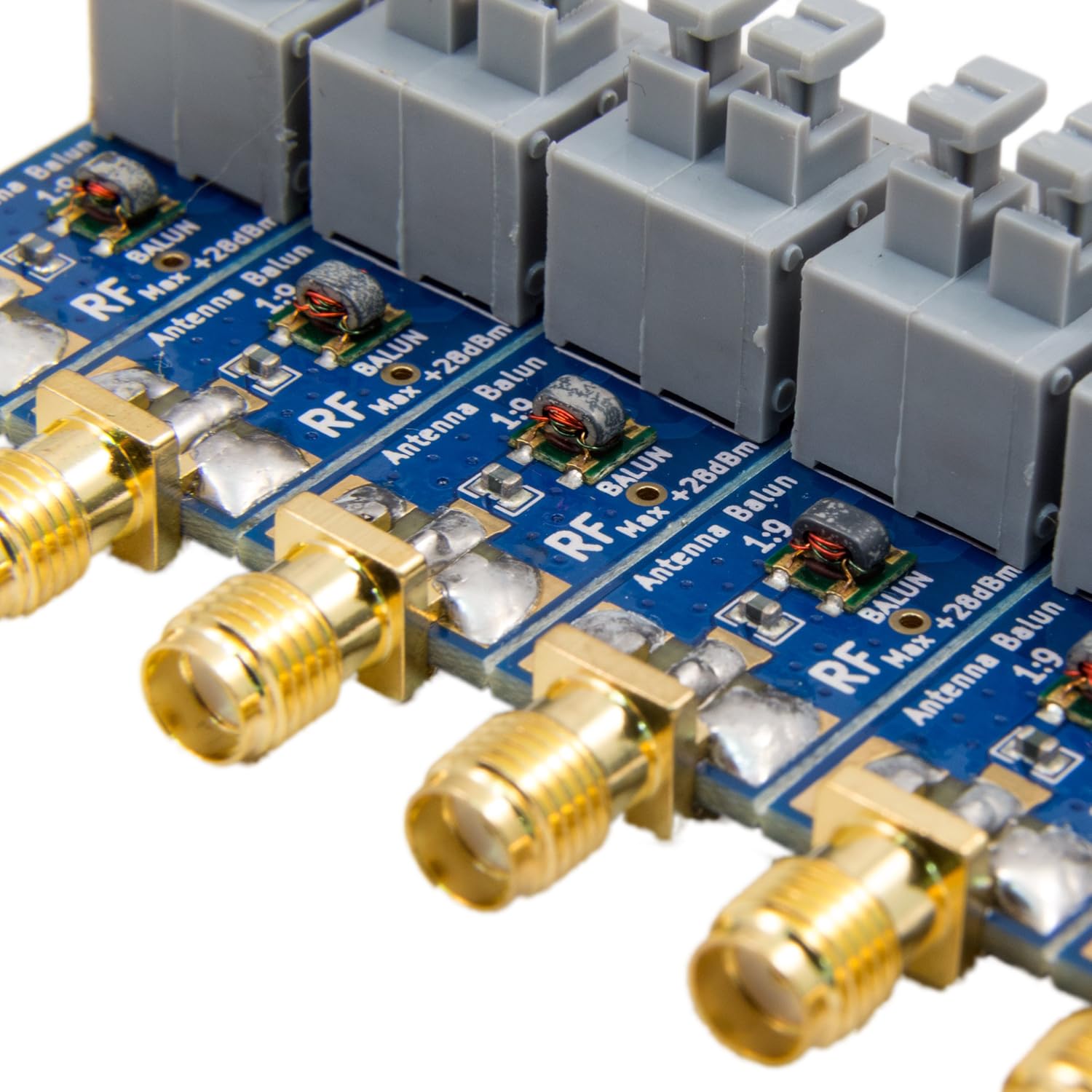

Meet 'Balun One Nine', a small, cost-effective balun. An excellent way to attach a long wire antenna to the Ham It Up, this 1:9 balun has an SMA output port and high-quality spring-type terminal block input for your coax. Balun One Nine includes an AntennaGuard varistor on the input, protecting your SDR setup from spurious ESD. The ESD protection is excellent--it passes IEC61000-4-2, an 8kV contact discharge test, with a response time of just 300ps. At 39.2mm x 13.0mm in total size (including connectors!) this balun was designed to be light in weight and light on your wallet. Very low insertion loss of -1.3dB (typical), with a maximum input power of 28dBm. Designed for HF applications, but specifications are accurate to frequencies up to 90MHz .
