BOJACK 80+5 uF 80/5 MFD ±6% 370/450 V AC CBB65 Dual Run Circular Start Capacitor for AC Motor Run or Fan Start or Condenser Straight Cool or Heat Pump Air Conditioner

Specifications

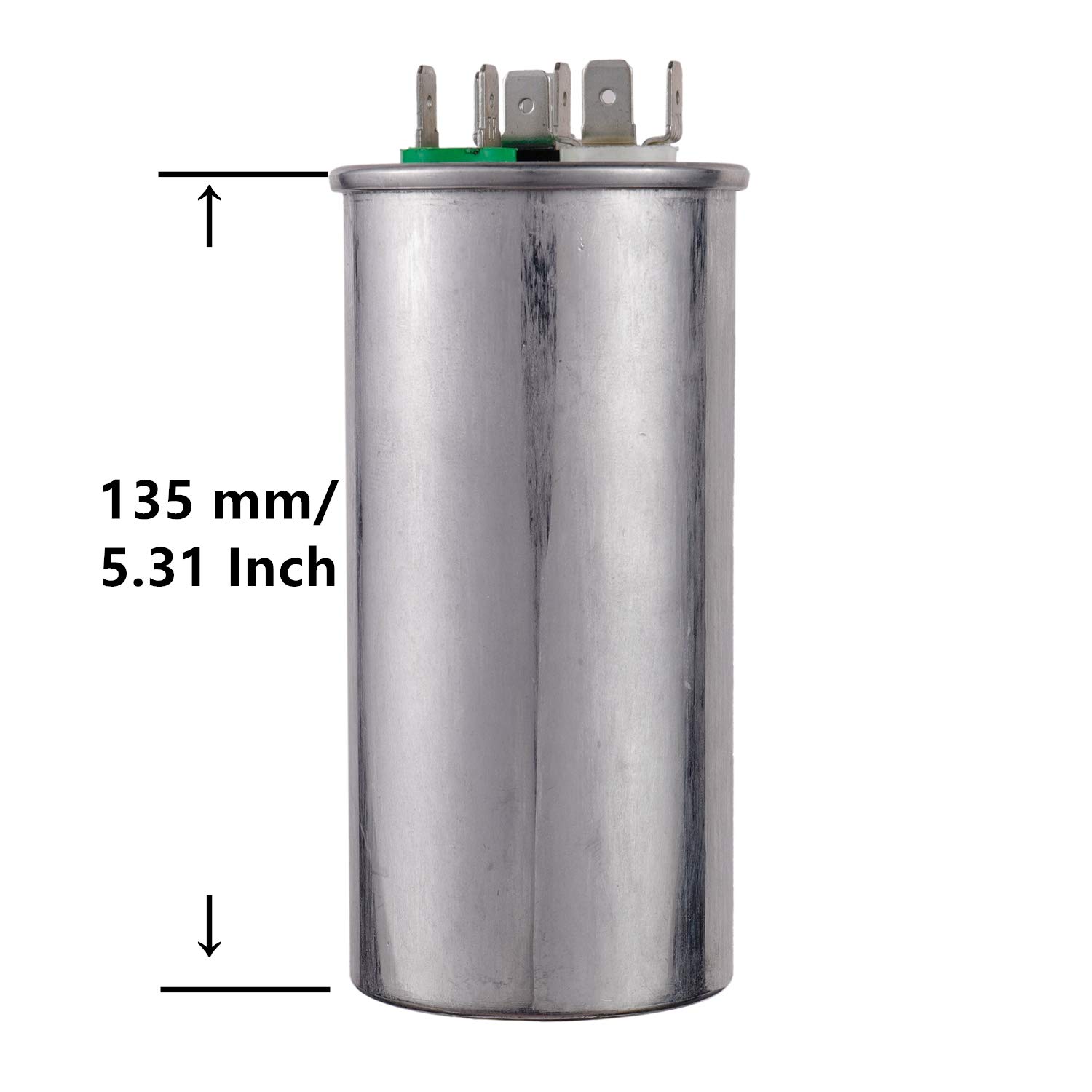

About this product
