BQLZR Touch Light Switch for Lamp Touch Dimmer AC 120V 50Hz/60Hz Touch Lamp Desk Light 3 Way Sensor Switch Dimmer Repair,3 Levels (Low, Medium, High, Off) Dimmer Switch

Key features

• Touch lamp desk light 3 Way Sensor Switch Repair.the colour coding of the touch switch wires, which are: BLACK (neutral), RED (live), WHITE (switch) and YELLOW (lamp base)
• 3 levels: low, medium, high, then off.NOTE:The light bulb can only be installed with ordinary incandescent light bulbs, so there will be three levels of adjustment

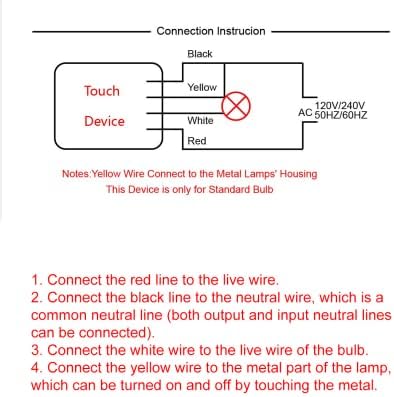

• ① Connect the red wire to the fire wire. ②. The black wire is connected to the neutral wire, which is a shared neutral wire (both the output and input neutral wires are connected). ③. Connect the white wire to the live wire of the light bulb. ④ Connect the yellow wire to the metal part of the lamp, and control the on and off by touching the metal
• [Notes]: 1. First of all, consider whether the wiring is correct; 2. The power of the bulb cannot exceed 60W; 3. After the touch device is installed, there can be no dimming on the power cord, and cannot be used at the same time; 4. The yellow wire is connected The lamp body must be a conductor, such as metal, if it is loaded on plastic or wood, it cannot be used; 5.3 can not install energy-saving lamps and LED bulbs, only ordinary incandescent bulbs can be installed.
• [Special reminder]: Because the energy-saving lamps are not dimmable, the three-speed touch sensor is only suitable for ordinary light bulbs (within 60W), not suitable for energy-saving lamps and LED lamps.
