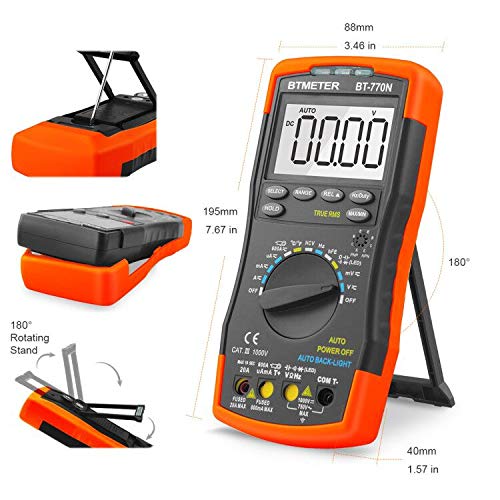

BTMETER BT-770N TRMS Auto Manual Ranging Multimeters, 6000 Counts Digital Multimeter AC DC Amp Ohm Volt Meter hFE LED Capacitor Tester to 99.99mF with Thermometer Backlit
See current price
Check the current price and availability on Amazon.com.
View on AmazonAffiliate link — we may earn a commission at no extra cost to you. Learn more
- Power Source
- Battery Powered
- Style
- BT-770N =（BT-770T）+ Mechanical Blocking System
- Color
- BT-770N Auto Ranging
- Item Weight
- 1.3 Pounds
Key features
- ✔【PROFESSIONAL MULTI-TESTER】 6000 Counts Display, Test for AC DC voltage current resistance, Diode continuity capacitance Temperature , Frequency, Duty Cycle, NCV, Ture RMS, hFE, capacitor, Relative Value , Data Hold, Auto Back Light, Auto Power off,
- ✔【Mechanical Protect System】In the daily usage, user often inserts the test leads into the wrong port because of confusion or carelessness which would burn down the multimeter, cause unnecessary loss.The system blocks the unused ports to prevent misoperation or mis-plug the test leads
- ✔【Wider Measuring Range】Large Tall Reading, Measure AC Voltage Max 750V, DC Voltage Max 1000V. 20A Current, 60MΩ Resistance, 99.99mF Capacitance, -4 to 1832℉ Temp, 9.999MHz Frequency, 99% Duty Cycle, Sampling rate 3 times/second delivers high precision readings.
- ✔【Auto Backlit & Dial Indicator Lamp】Automatically turn on bright backlight and indicator light on the dial, so you can see the range and reading clearly. Nice and quick response for Continuity Test, Data Hold, Relative Value,Max/Min display, NCV, TRMS, Support Auto Manual Power Off. "
- ✔【Multipurpose Professional Class】For the small-electronics hobbyist,household, automotive,HVAC, automobile, industrial and field applications:voltmeter, ammeter, ohmmeter, conductivity checker, LED light,capacitor and resistor testerit, it has all the features you could ever need.
Specifications
| Brand | BTMETER |
|---|---|
| Power Source | Battery Powered |
| Style | BT-770N =（BT-770T）+ Mechanical Blocking System |
| Color | BT-770N Auto Ranging |
| Item Weight | 1.3 Pounds |
| Product Dimensions | 7.6 x 3.4 x 1.5 inches; 1.3 Pounds |
| Item model number | BT-770N |
| Batteries | 2 AA batteries required. (included) |
| Manufacturer | BTMETER |
| ASIN | B0BNQGGMHP |
About this product
BT-770N Auto / Manual Ranging Digital Multimeter is the perfect DIY hand tool for troubleshoot electrical problems in a wide array of industrial and household devices such as electronic equipment, motor controls, domestic appliances, power supplies and wiring systems. It's tough, lightweight but durable and very easy to operate. It can measure AC/DC current, AC/DC voltage, resistance, continuity(buzzer), transistor and diodes with a very high degree of accuracy. CATIII1000V certification make sure working safety. After years of observation and research , we hope new design substitutable fixed mode can help users more convenient work: Fix the meter by magnet for adsorbed on the metal, convenient for both hands to carry out the measurement job. The color-coded LEDs allow you know Voltage on/off .Includes attachable test leads, holders and stand for temperature probe and User Manual. Specifications : Range Selection: Auto & Manual Ranging Max Display: 6000 Sample Rate: 3 times/s DC Voltage: 600mV~ 1000V AC Voltage: 6V~ 750V DC Current: 60uA~ 20A AC Current: 6mA~ 20A Resistance: 600ohm~ 60Mohm Capcitance:9.999Nf~99.99mF ( Auto range ) Frequency:9.999Hz~9.999Mhz ( Auto range ) Duty cycle:0.1%~99.9% Temperature:-20℃~-1000℃-4℉~1832℉ Auto LCD Backlight: Yes Overload protection: Yes Data Hold: Yes Diode Test: Yes Low Battery indication: Yes Auto power off ℃/℉：yes True RMS: YES Relative Value: yes Continuity Test: Yes Non Contact AC Voltage (NCV) detection Self-Locking Protection
