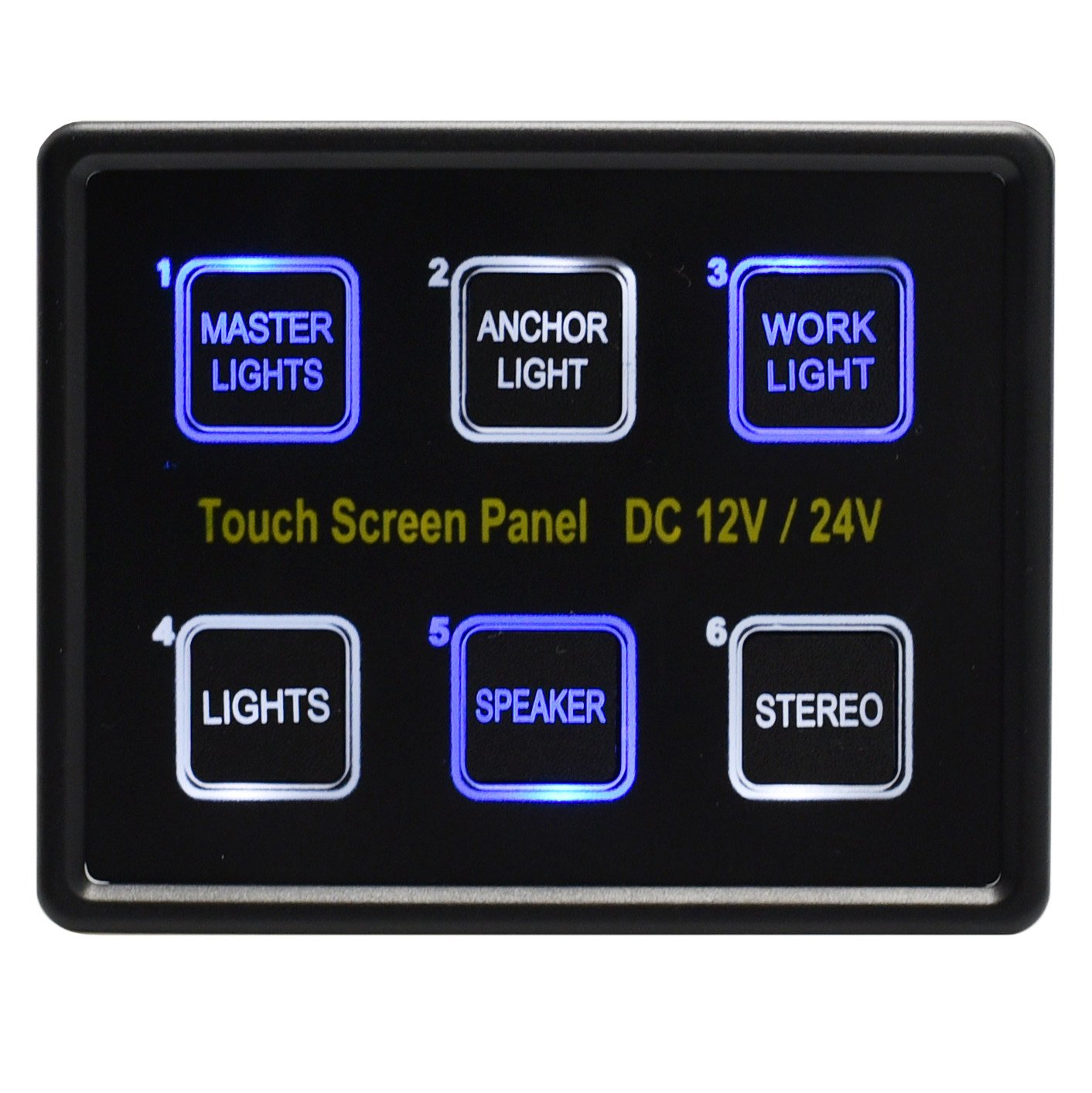

Cllena 12V/24V DC 6 Gang LED Switch Panel Slim Touch Control Panel Box for Car Marine Boat Truck Rv Caravan
See current price
Check the current price and availability on Amazon.com.
View on AmazonAffiliate link — we may earn a commission at no extra cost to you. Learn more
- Current Rating
- 10 Amps
- Operating Voltage
- 24 Volts
- Connector Type
- Quick Connect
- Brand
- Cllena
Key features
- Advanced 6 In 1 touch screen panel: Adopt capacitive sensing technology with blue indicator light display, waterproof IP67, with high sensitivity, stability and strong anti-interference ability.
- Wide application: Fit for Car, Truck, Boats, Yachts & Caravans, etc; Input: DC 12V/24V, Output: DC 12V 10A /24V 10A.
- Safety protection: Built in resettable fuse. reverse polarity protection, over-voltage protection and over-current protection.
- Panel dimensions: 9.8CM x 7.8CM x 0.8CM; Control box dimensions: 13.3CM x 8.3CM x 3CM; Hole Size: 20 x 50MM.
- Flexible & easy installation: 20 label stickers, just replace label by your favor and needs.
Specifications
| Operation Mode | ON OFF |
|---|---|
| Current Rating | 10 Amps |
| Operating Voltage | 24 Volts |
| Connector Type | Quick Connect |
| Brand | Cllena |
| Switch Type | Touch Switch |
| Material | Metal |
| Item Dimensions LxWxH | 5.8 x 3.4 x 5 inches |
| Mounting Type | Panel Mount |
| Actuator Type | Touch |
| Product Dimensions | 5.8 x 3.4 x 5 inches; 1.1 Pounds |
| Manufacturer | Cllena |
| ASIN | B018DXS232 |
About this product

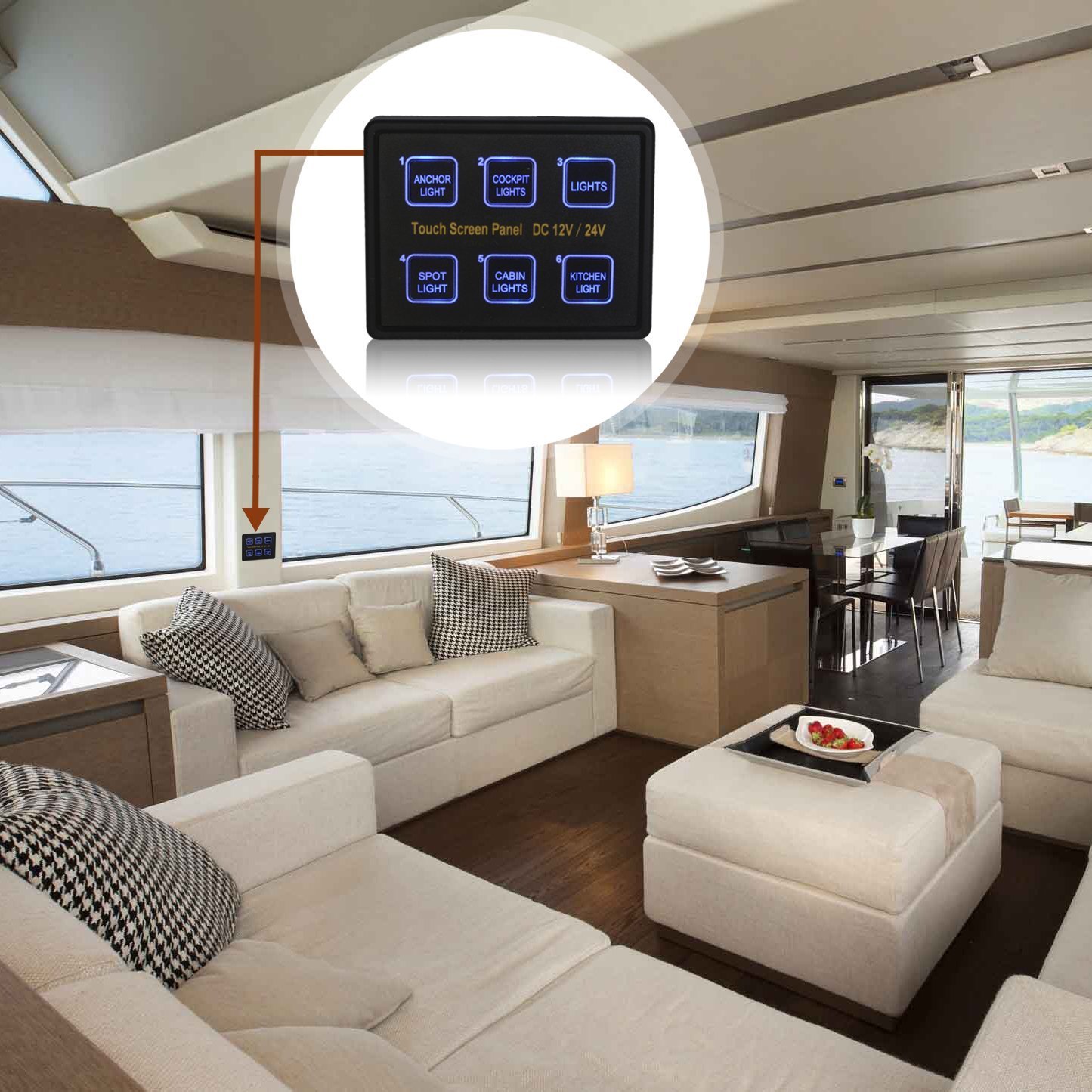

This 6 gang LED touch screen panel is a new generation of switch panel-prefect suit for applications in car, boats, trucks, yachts & caravans, etc. It with morden fashion design, ultra Slim and flexible face plate, making the back of the cockpit space more clean and with less wires. Very easy to install and use. Installation Step: 1. Cut one hole on the dashboard. 2. Connect LED screen panel with control box by using the provided flat cable. 3. Connect the device or application positive to the pin. Package Included: 1 x Touch Screen Panel 1 x Circuit Control Box 1 x 15Pin VGA Cable 20 x Label Sticker 2 x Input Wire 6 x Output Wire 2 x M4*12 Stainless Steel Screws 4 x M4*45 Stainless Steel Screws
