DORHEA

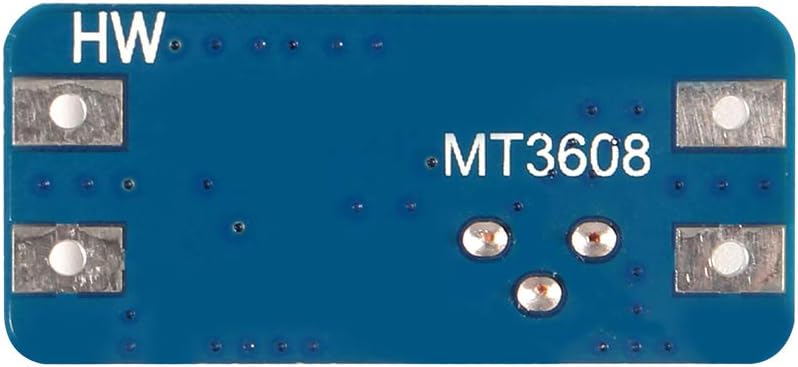

Dorhea MT3608 DC-DC Step Up Boost Power Converter 2A Module Adjustable Step Up Voltage Regulator Board Voltage 2-24V to 5V-28V Output Voltage (Pack of 10)
See current price
Check the current price and availability on Amazon.com.
View on AmazonAffiliate link — we may earn a commission at no extra cost to you. Learn more
- Item Weight
- 1.76 Ounces
- Item model number
- U13538-1
- Manufacturer
- DORHEA
- Brand
- DORHEA
Key features
- Mini DC-DC step up voltage regulator with DC 2-24V input and 5V-28V output,just connected with USB power adapter then you can get 9V 12V 18V 24V voltge.

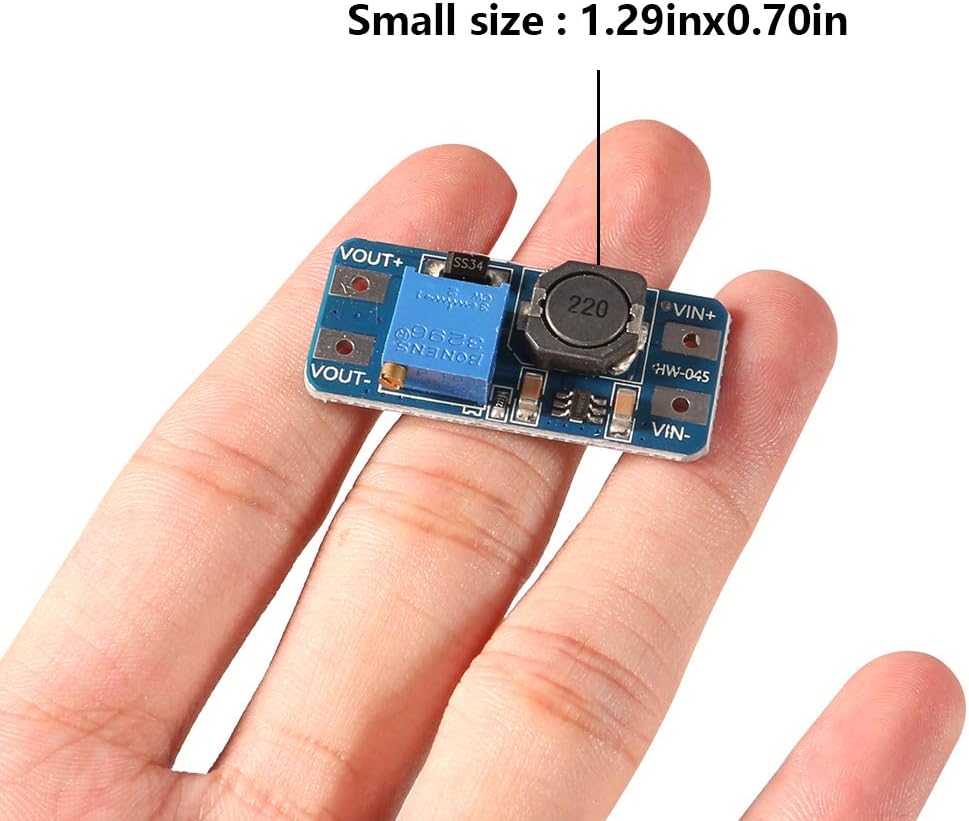

- The Maximum Output Current: 2A; Board Size: 36 X 17 X 14mm/1.42 X 0.67 X 0.55inch(L*W*H).
- Equipped with MT3608 voltage booster chip with high conversion efficiency up to 93%.
- Widely used for storage battery, power transformers, DIY adjustable regulated power supply, industrial equipment, 5V, 9V, 12V, 28V output, etc.
- MT3608 includes under-voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload.
Specifications
| Package Dimensions | 4.5 x 3.5 x 0.04 inches |
|---|---|
| Item Weight | 1.76 Ounces |
| Item model number | U13538-1 |
| Manufacturer | DORHEA |
| Brand | DORHEA |
| Power Source | Battery Powered |
| Current Rating | 2 Amps |
| ASIN | B0BGLGL9RV |
About this product
Feature: Input voltage: 2 V to 24 V Output Voltage: DC 5V-28V Maximum output current: 2A Efficiency: 93% (Minimum) (input-output) difference voltage when input is at (2 V and 50% of max-input-V), loading at (50% and 100 percent rated current) Method of use: The module of the IN+ and - after 2~24v, adjusting the potentiometer can adjust output voltage, output voltage is greater than the input voltage Matters needing attention: The input voltage should not exceed the maximum input voltage The peak current output current no more than TV university When the module output voltage can not be adjusted, the output voltage is always equal to the input voltage.Please adjust the potentiometer counterclockwise 20 laps or more (Let potentiometer against your chest, counterclockwise turn boost) Package Included: 10 X MT3608 DC Voltage Regulator Board
