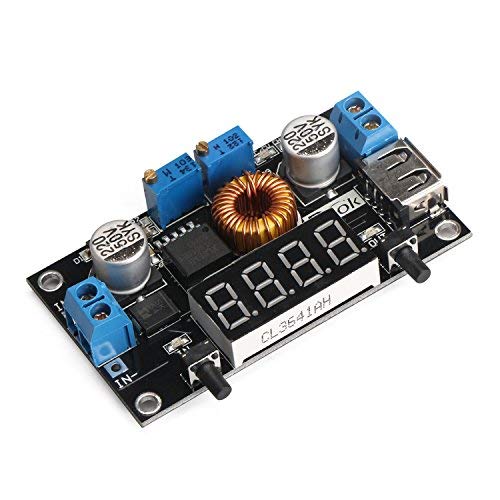

DROK® LM2596 DC Buck Volt Regulator 36V to 24V 12V 5V 3.3V 3V Converters Constant Volt&Amp 5-36V to 1.25-32V 5A 75W Step-Down LED Driver Switch Power Supply Digital LED Voltmeter USB Output

Specifications

About this product

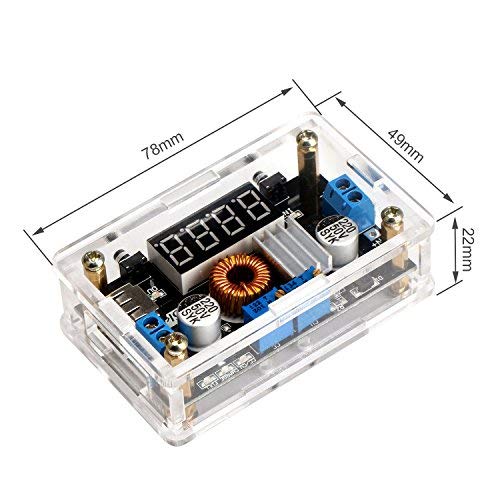

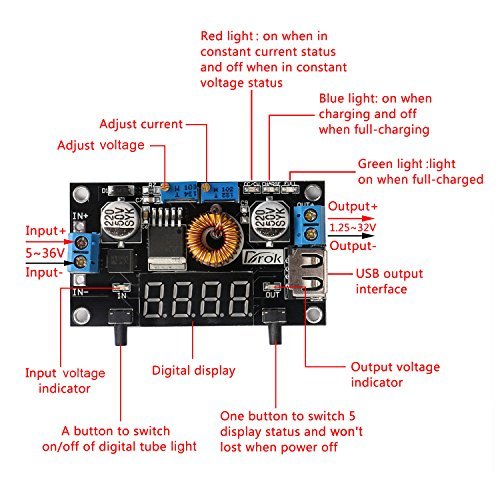

Parameters: Input voltage : 5-36V (the input voltage should at least 1.5V higher than the output voltage) Output voltage :1.25-32V (continuously adjustable,default output 17V.) Output Current : 5A MAX(Please use it within 4.5A) Output Power: Max 75W (Please use it within 50W. if the pressure difference is big,please reduce power) Operating temperature: -40 to +85 ° C Operating frequency: 180KHz Conversion efficiency : up to 96% Short circuit protection: Yes Overtemperature protection: (automatically shut off the output after overtemperature) Input reverse polarity protection: No, (if necessary, please in input String into high current diode) Installation: 4pcs 3mm screws Wiring:(solder terminals) V-IN is the input, V-OUT is the output Usage: 1. Use as an ordinary buck module with overcurrent protection capabilities; 2. Use as a battery charger; 3. Use it as a constant current LED driver module. Note: 1. If the module can not be adjusted, the output voltage is always equal to the input voltage." When you encounter this problem, please counterclockwise rotation of the potentiometer 10 laps or more, then you can adjust the output voltage. Because the factory default output voltage is 17V. 2.Module output terminal string has a current sampling resistor, there will be 0-0.2V voltage drop after connected to the load, it is a normal phenomenon. 3.If its output is more than 3A/35W, please enhance heat dissipation! 4.This DC converter is single output, the output voltage of the USB port is the same as the output voltage of the module, if your load is USB device, please make sure the module's output voltage is set at 5V. Package include: 1 x Buck Converter
