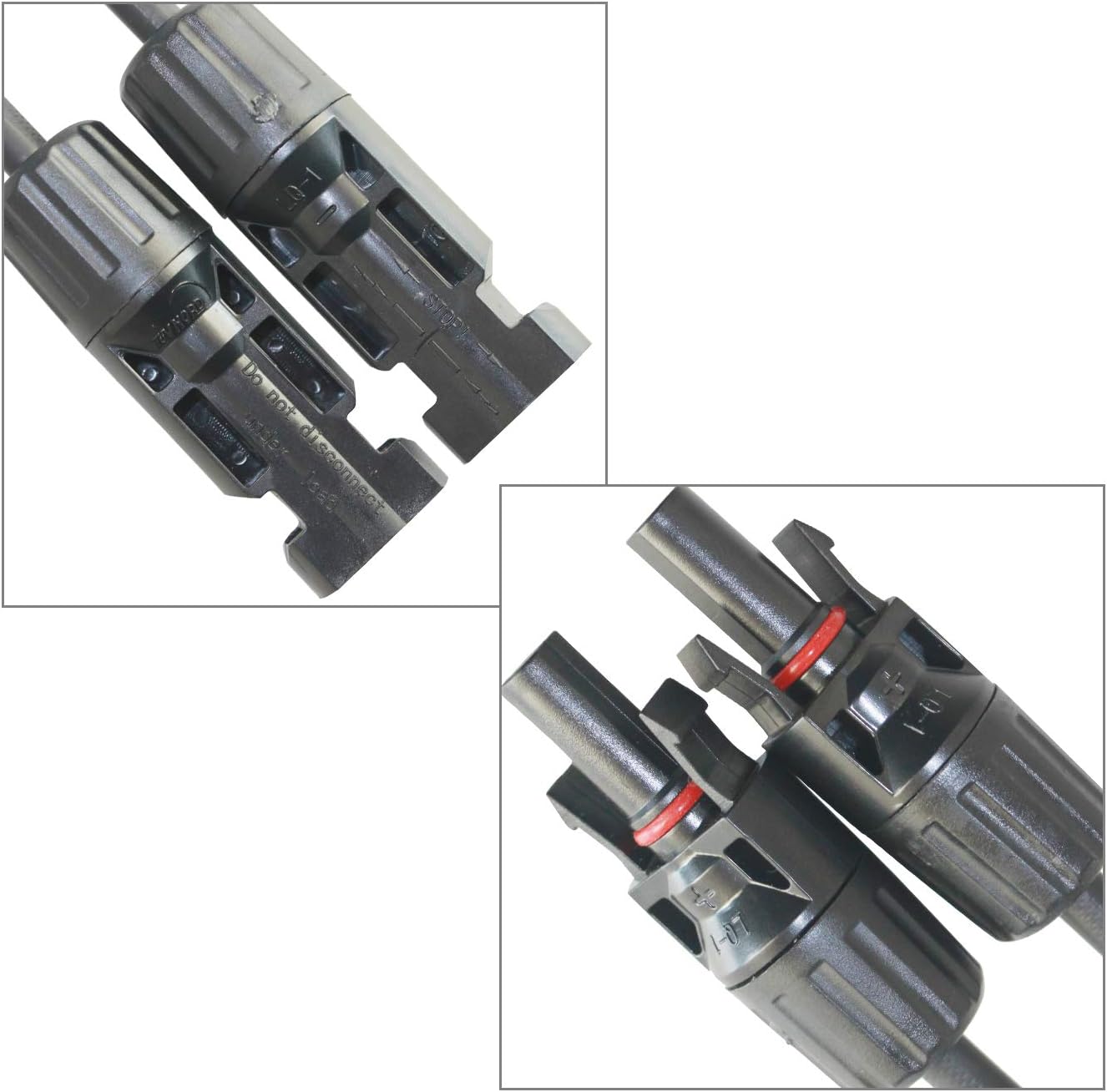

DSOPV 2 Pairs Solar Connector Y Branch Parallel Solar Panel Adaptor Cable Connectors 1M2F+2M1F

Key features

• Y branch parallel adapted. (2 Pairs: 1 male to 2 female(M/FF) and 1 female to 2 male(F/MM))
• Parallel connection --- 1. Remove the positive connector (+) from the solar panel and connect it with the (female) connector; 2. Take the negative connector (-) from the solar panel and connect it with the Y (male) connector connection. Connectors can be easily plugged in and out without any tools. Cables are connected by riveting and fastening
• Main technical specifications --- Applicable single-core cable cross section: 1.5mm²-6mm² (including AWG14, AWG13, AWG12, AWG11, AWG10). Rated current: 20A-rated voltage: DC1000V
• High performance --- The waterproof ring at the connection is very suitable for sealing water and dust to prevent corrosion. High current and high voltage load capacity, compatible with PV cables with different insulation diameters. Rugged housing resists aging and UV
• The perfect application in the solar field --- the perfect solution to connect multiple panels in parallel in the solar field, usually used in parallel applications
