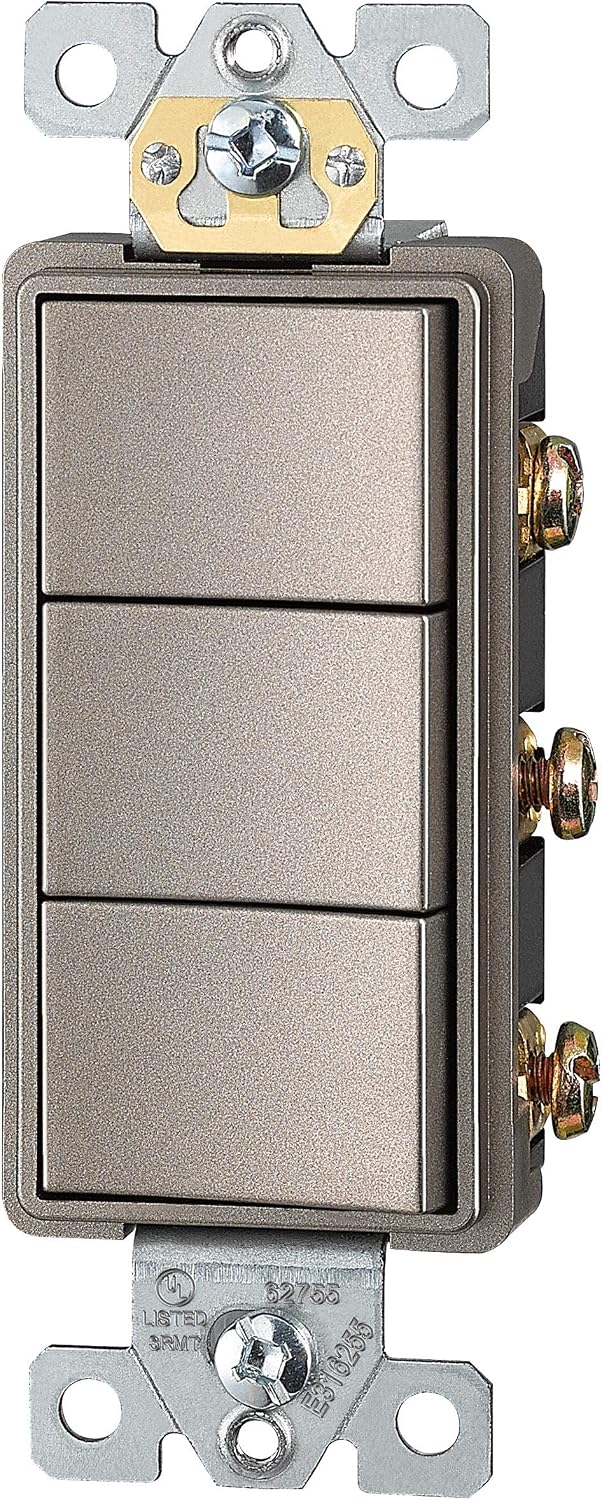

ENERLITES Triple Paddle Rocker Decorator Switch, Clamp-Type Back Insert, Copper Wires Only, Single Pole, Residential/Commercial Grade,UL Listed, 62755-NK, Nickel
See current price
Check the current price and availability on Amazon.com.
View on AmazonAffiliate link — we may earn a commission at no extra cost to you. Learn more
- Current Rating
- 15 Amps
- Operating Voltage
- 120 Volts
- Contact Type
- Normally Open
- Connector Type
- Quick Connect
Key features
- Residential grade triple on/off paddle light switch allows control of three fixtures from one location. Made of high-quality materials; impact resistant polycarbonate thermoplastic
- Shallow body design fits standard junction boxes and takes up only one device space in the box. Clamp-type back insert wiring for fast, easy and firm connections (copper only). Break-off plaster ears. Ground terminal. Device dimensions (excluding mounting yoke): 1.42”W (36.15mm) x 2.77”H (70.33mm) x 1.40”D (35.65mm)
- Suitable for houses, condos, apartments and most commercial areas that require only 15A switches such as offices, schools, stores, shops, restaurants, public facilities, and hotels
- Use with ENERLITES wall plates for the best fit and color match, part numbers SI8831-NK, SI8832-NK, SI8833-NK, SI8834-NK
- 15A, 120-277VAC, Single Pole. Wiring instructions included. 1-Year Manufacturer’s Warranty, UL Listed
Specifications
| Operation Mode | ON-OFF-ON |
|---|---|
| Current Rating | 15 Amps |
| Operating Voltage | 120 Volts |
| Contact Type | Normally Open |
| Connector Type | Quick Connect |
| Brand | ENERLITES |
| Switch Type | Decorator |
| Material | Polycarboante Thermoplastic |
| Item Dimensions LxWxH | 4.2 x 1.4 x 1.5 inches |
| Mounting Type | Pole |
| Actuator Type | Rocker |
| Contact Material | Copper |
| International Protection Rating | IP00 |
| Number of Positions | 1 |
| Lower Temperature Rating | 34 Degrees Fahrenheit |
| Upper Temperature Rating | 134 Degrees Fahrenheit |
| Connectivity Protocol | X-10 |
| Color | Nickel |
| Unit Count | 1.0 Count |
| Number of Items | 1 |
| Manufacturer | ENERLITES |
| Part Number | 62755-NK |
| Item Weight | 3.98 ounces |
| Product Dimensions | 4.2 x 1.4 x 1.5 inches |
| Item model number | 62755-NK |
| Size | 1 Pack |
| Style | Triple Switch Nickel |
| Item Package Quantity | 1 |
| Included Components | Triple switch |
| Batteries Included? | No |
| Batteries Required? | No |
| ASIN | B095NTSBGB |
About this product
ENERLITES Triple Paddle Rocker Combination Decorator Switch, Ground terminal, Clamp-Type Back Insert Wiring, Copper Only, Single Pole, Residential/Commercial Grade, 15A 120V-277V
