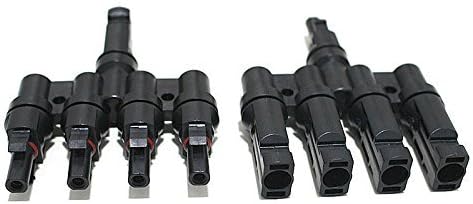

eoocvt 1 Pair Solar Energy Panel MC-4 T Branch Connectors Cable Coupler Combiner - 1 Male to 4 Female(M/4F) and 1 Female to 4 Male(F/4M)
See current price
Check the current price and availability on Amazon.com.
View on AmazonAffiliate link — we may earn a commission at no extra cost to you. Learn more
- Item Weight
- 3.98 ounces
- Item model number
- 4330581145
- Manufacturer
- eoocvt
Key features
- 1 Pair of MC-4 Branch Connectors: Provides a quick and easy parallel wiring solution for solar panels
- Compatible with all MC-4 solar connectors
- Material: Tin plated copper and insulated PPO
- Load capability with big current and high voltage
- Resistance of extra high & low temperature and fireproof
Specifications
| Package Dimensions | 4.6 x 2.5 x 1.2 inches |
|---|---|
| Item Weight | 3.98 ounces |
| Item model number | 4330581145 |
| Manufacturer | eoocvt |
| ASIN | B01D102EMC |
About this product
Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument Compatible with PV cables with different insulation diameters Main Technical Specification: Weight：Approx.150 g / 5.3 oz Rated Current：30A Rated Voltage：DC 1000V Single Core Cable Cross Profile：1.5 mm2 - 6mm2 External Diameter Range of Cable: Φ5mm ～Φ 7mm Ambient Temperature：-40 ℃～ + 105 ℃ Protective Level: IP67 Safety Degree：Ⅱ Insertion Force: ≤ 50N Withdraw Force: ≥ 50N Insulating Material: PPO (Black) Contact Material：Copper，Nickel plated Flame Retardant Rating：UL94-VO Terminal Connection：Pressure Welding Package Included: 1 x Four-in-one PV Connector
