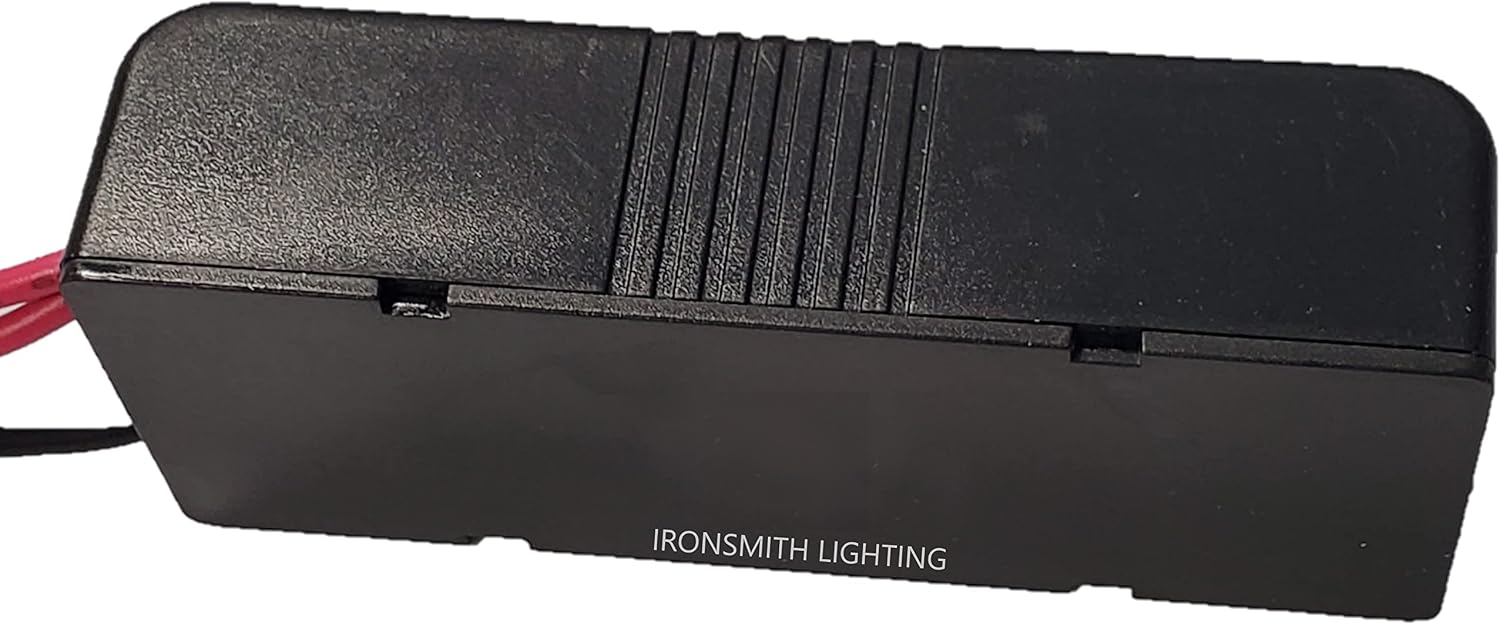

Halogen/Xenon Electronic Transformer 60 Watt Max output 120 Volt Input / 12 Volt Out Put Potted Transformer
  • Halogen/Xenon Electronic Transformer 60 Watt Max output 120 Volt Input / 12 Volt Out Put Potted Transformer
  • Halogen/Xenon Electronic Transformer 60 Watt Max output 120 Volt Input / 12 Volt Out Put Potted Transformer
  • Halogen/Xenon Electronic Transformer 60 Watt Max output 120 Volt Input / 12 Volt Out Put Potted Transformer
  • Halogen/Xenon Electronic Transformer 60 Watt Max output 120 Volt Input / 12 Volt Out Put Potted Transformer
  • Halogen/Xenon Electronic Transformer 60 Watt Max output 120 Volt Input / 12 Volt Out Put Potted Transformer

Classic Light Bulb

Halogen/Xenon Electronic Transformer 60 Watt Max output 120 Volt Input / 12 Volt Out Put Potted Transformer

See current price

Check the current price and availability on Amazon.com.

View on Amazon

Affiliate link — we may earn a commission at no extra cost to you. Learn more

Part Number
HC-HD60
Item Weight
2.89 ounces
Package Dimensions
2.87 x 1.65 x 1.57 inches
Item model number
HC-HD60

Key features

  • 60 Watt Max Load Transformer with 12 Volt Output and Minimum 20 Watt Load
  • Suitable for use with Halogen, Xenon, Krypton Transformer and some LED's
  • Fully Potted Unit to help protect circuitry from elements.
  • Auto Reset Protected >20KHZ 60HZ - 0.5A
  • 120 Volt (VAC) Input - 12 Volt (VAC) output (20 watt minimum load required for transformer to produce 12 volts)

Specifications

ManufacturerHC Lighting
Part NumberHC-HD60
Item Weight2.89 ounces
Package Dimensions2.87 x 1.65 x 1.57 inches
Item model numberHC-HD60
ColorBlack
Voltage120 Volts
Wattage60 watts
Item Package Quantity1
Number Of Pieces1
Type of BulbIncandescent, Xenon, LED, Krypton
Batteries Included?No
Batteries Required?No
BrandClassic Light Bulb
Current Rating0.5 Amps
Maximum Frequency60 Hz
Minimum Frequency60 Hz
ASINB0711DWRMC

About this product

Low voltage transformer which are sometimes referred to as a step down transformer are used to convert main line voltage to a lower voltage suitable for bulbs. Transformers can be used with incandescent, halogen, xenon and krypton type bulbs. This transformer has a "120 Volt" Input Voltage which is converted to "12" Volts. (AC) Measurements 2.63" Long x 1.38" Width x 0.88" Height. This transformer is dimmable and is fully potted. Potting helps protect the internal components from being damaged if they are exposed to the elements. Minimum wattage requirements are common for lighting transformers. This means that the transformer will not produce 12 Volts if the "20 Watt" minimum wattage amount is not applied. Always make sure power is off when working with electrical parts and fixtures. **Although it may work with some LED's it is not recommended to be used with LED bulbs.
