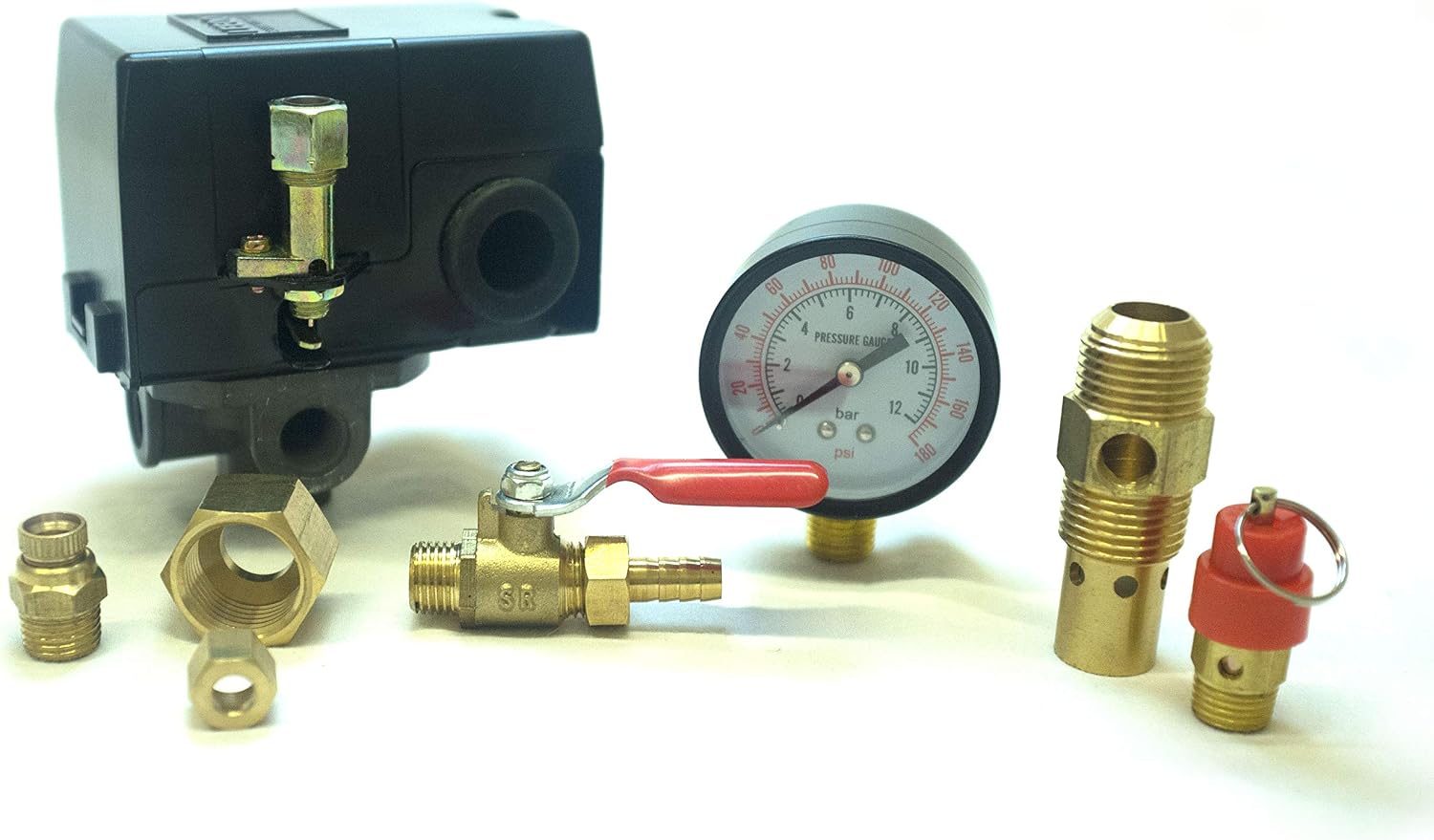

Lefoo Air Compressor Switch Pressure Control Switch Valve for Air Compressor Replaces Furnas Square D H4 - Lf10-4h-1-npt1/4-140-175
See current price
Check the current price and availability on Amazon.com.
View on AmazonAffiliate link — we may earn a commission at no extra cost to you. Learn more
- Voltage
- 240 Volts, 120 Volts, 230 Volts
- Recommended Uses For Product
- Drilling, Air Brushing, Spraying, Nailing
- Item Weight
- 0.73 Pounds
- Maximum Power
- 2 Horsepower
Key features
- Sold on Amazon
Specifications
| Brand | LEFOO |
|---|---|
| Voltage | 240 Volts, 120 Volts, 230 Volts |
| Recommended Uses For Product | Drilling, Air Brushing, Spraying, Nailing |
| Item Weight | 0.73 Pounds |
| Maximum Power | 2 Horsepower |
| Capacity | 175 Pints |
| Item Dimensions LxWxH | 3.94 x 3.54 x 3.94 inches |
| Motor Horsepower | 15 Horsepower |
| Manufacturer | lefoo |
| Part Number | LF10-4H-1-NPT1/4-140-175 |
| Product Dimensions | 3.94 x 3.54 x 3.94 inches |
| Item model number | LF10-4H-1-NPT1/4-140-175 |
| Item Package Quantity | 1 |
| Batteries Included? | No |
| Batteries Required? | No |
| ASIN | B00273O0IQ |
About this product
Brand new Air Compressor Control Valve (140-175 PSI Pressure Switch). It is comparable to a Furnas, Square D, and many more. The product has an On/Off switch and an unloader. It will be working on both 2 stages and single stage compressors. If your compressor does not need the unloader, you do not have to hook it up. PRESET 140-175 PSI ¼" COMPRESSION UNLOADER VALVE ¼" FEMALE NPT TANK CONNECTION WITH 3 EXTRA 1/4" PORTS. MAX AMPS, 20 AMPS AT 120VOLT / 12 AMP AT 240 VOLT , AND 9.6 AMP AT 3PH 240 VOLT BURST PRESSURE (PSI) 500 NUMBER OF PORTS 4 PORT TYPE 4-Port 1/4" NPT (Female) UNLOADER 1/4" Compression ACTUATION TYPE Diaphragm MANUAL SWITCH ACTION Auto/ Off PHASE Single CONTACT TYPE DPST AMPS 15 HP @ 1 PHASE - 120V 2 HP @ 1 PHASE - 230V 3 ENCLOSURE NEMA 1 TEMP. RANGE (F) -22 to 257 STANDARDS UL/CSA SERIES LF10 WEIGHT 0.850000
