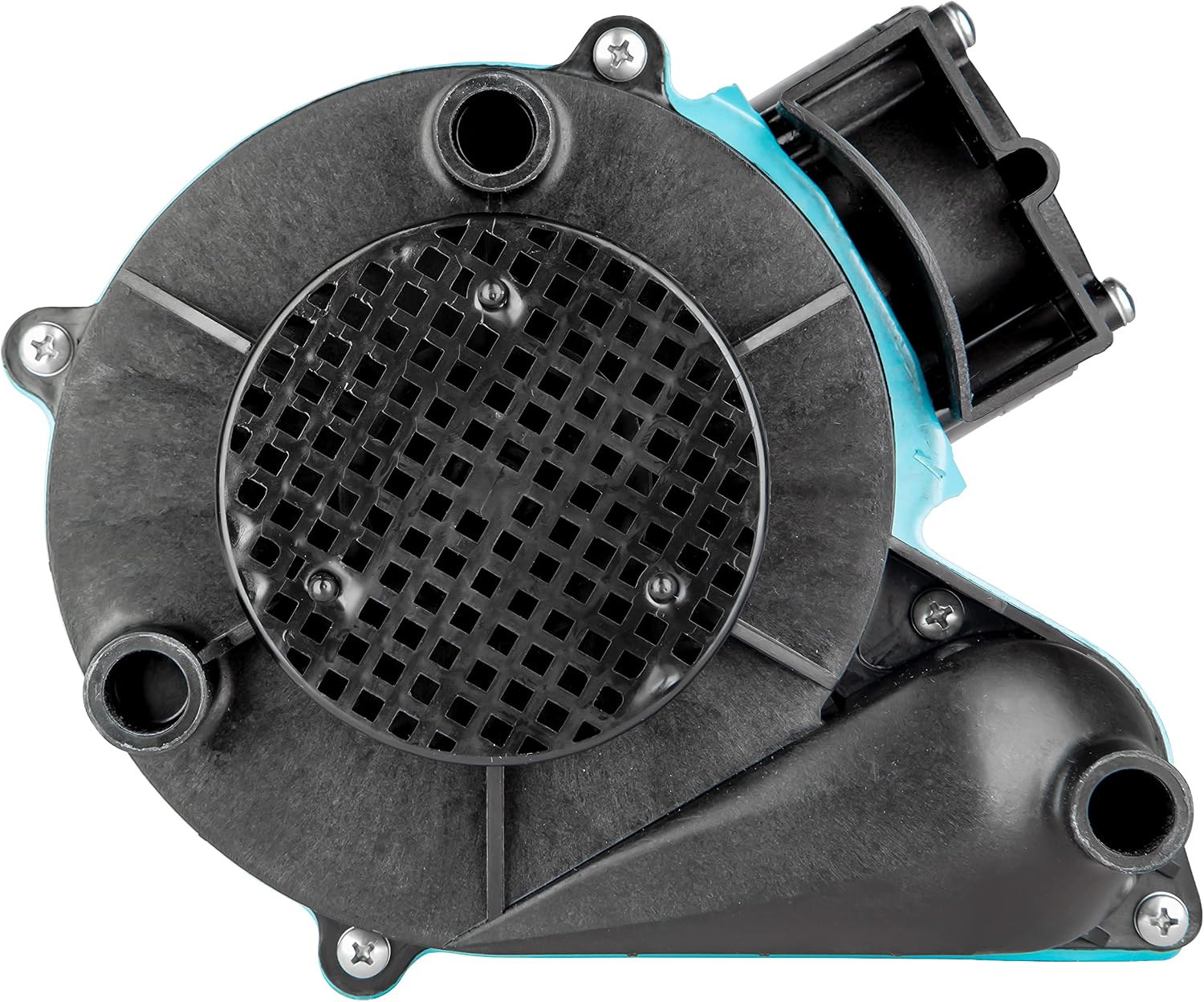

Little Giant 6-CIA-ML 115 Volt, 1/3 HP, 2760 GPH Cast Iron Submersible Sump Pump with Integral Low Level Diaphragm Switch, Blue, 506160
  • Little Giant 6-CIA-ML 115 Volt, 1/3 HP, 2760 GPH Cast Iron Submersible Sump Pump with Integral Low Level Diaphragm Switch, Blue, 506160
  • Little Giant 6-CIA-ML 115 Volt, 1/3 HP, 2760 GPH Cast Iron Submersible Sump Pump with Integral Low Level Diaphragm Switch, Blue, 506160
  • Little Giant 6-CIA-ML 115 Volt, 1/3 HP, 2760 GPH Cast Iron Submersible Sump Pump with Integral Low Level Diaphragm Switch, Blue, 506160
  • Little Giant 6-CIA-ML 115 Volt, 1/3 HP, 2760 GPH Cast Iron Submersible Sump Pump with Integral Low Level Diaphragm Switch, Blue, 506160
  • Little Giant 6-CIA-ML 115 Volt, 1/3 HP, 2760 GPH Cast Iron Submersible Sump Pump with Integral Low Level Diaphragm Switch, Blue, 506160

Little Giant

Little Giant 6-CIA-ML 115 Volt, 1/3 HP, 2760 GPH Cast Iron Submersible Sump Pump with Integral Low Level Diaphragm Switch, Blue, 506160

See current price

Check the current price and availability on Amazon.com.

View on Amazon

Affiliate link — we may earn a commission at no extra cost to you. Learn more

Color
Blue
Material
Cast Iron
Style
Low level diaphragm switch, 10-ft. cord
Power Source
Corded Electric

Key features

  • AUTOMATIC SUBMERSIBLE SUMP PUMP: designed for compact sump systems with integral diaphragm switch activates when water reaches 4 to 7 inches and shuts off when water drops down between 1.5 and 3.5 inches
  • BUILT TO LAST: Epoxy-coated cast iron housing; non-clog vortex style impeller; upper and lower bearings; nitrile/carbon/ceramic mechanical shaft seal
  • CONTINUOUS DUTY MOTOR: 1/3 HP shaded pole motor, 9.0 running Amps, 14.3 starting Amps, 720 Watts, thermally protected, CSA listed in the USA and Canada
  • APPLICATIONS: designed for compact sump pump systems and general water transfer application. Must sit in water to activate the switch.
  • SPECIFICATIONS: 1/3 HP; 115 Volts; 50/60 Hz; 9.0 running Amps; 14.3 starting Amps; 720 Watts; 2760 GPH at 5-ft. lift; 18-ft. shut-off; 7.8 PSI; 10-ft. cord; 1.5-inch FNPT discharge

Specifications

BrandLittle Giant
ColorBlue
MaterialCast Iron
StyleLow level diaphragm switch, 10-ft. cord
Power SourceCorded Electric
Item Weight17 Pounds
Maximum Flow Rate46 Gallons Per Minute
Maximum Lifting Height18 Feet
Voltage115 Volts
Product Dimensions9.5"L x 7.5"W x 6"H
ManufacturerLITTLE GIANT
Part Number506160
Country of OriginMexico
Item model number506160
PatternPump
Wattage720 watts
Horsepower0.33
Amperage Capacity9 Amps
Item Package Quantity1
Number of Handles1
Measurement SystemImperial
Plug FormatUSA three-prong
Special FeaturesCCSAus listing
UsageGreywater only
Included ComponentsSump-pumps
Batteries Included?No
Batteries Required?No
Warranty Description2-years limited from date of purchase
Domestic ShippingItem can be shipped within U.S.
International ShippingThis item can be shipped to select countries outside of the U.S. Learn More
Item Dimensions LxWxH9.5 x 7.5 x 6 inches
ASINB0C558WWKB

About this product

Product Description The Little Giant 6-CIA-ML 115-volt submersible sump pump is designed for compact sump systems. This pump comes equipped with a low-level integrated diaphragm switch for automatic operation. This 1/3 HP pump delivers up to 2,760 GPH and handles average water volumes. This pump has a 10-Ft. Cord From the Manufacturer Big John Submersible Sump Pump for residential and light commercial use, the 1/3 HP, automatic 6-CIA sump pump provides efficient and reliable service. Pump has a 1-1/2-Inch discharge with an 18' maximum head. Cast iron motor housing is oil-filled for lifetime lubrication and excellent heat dissipation. Polycarbonate cover and polypropylene volute-base.
