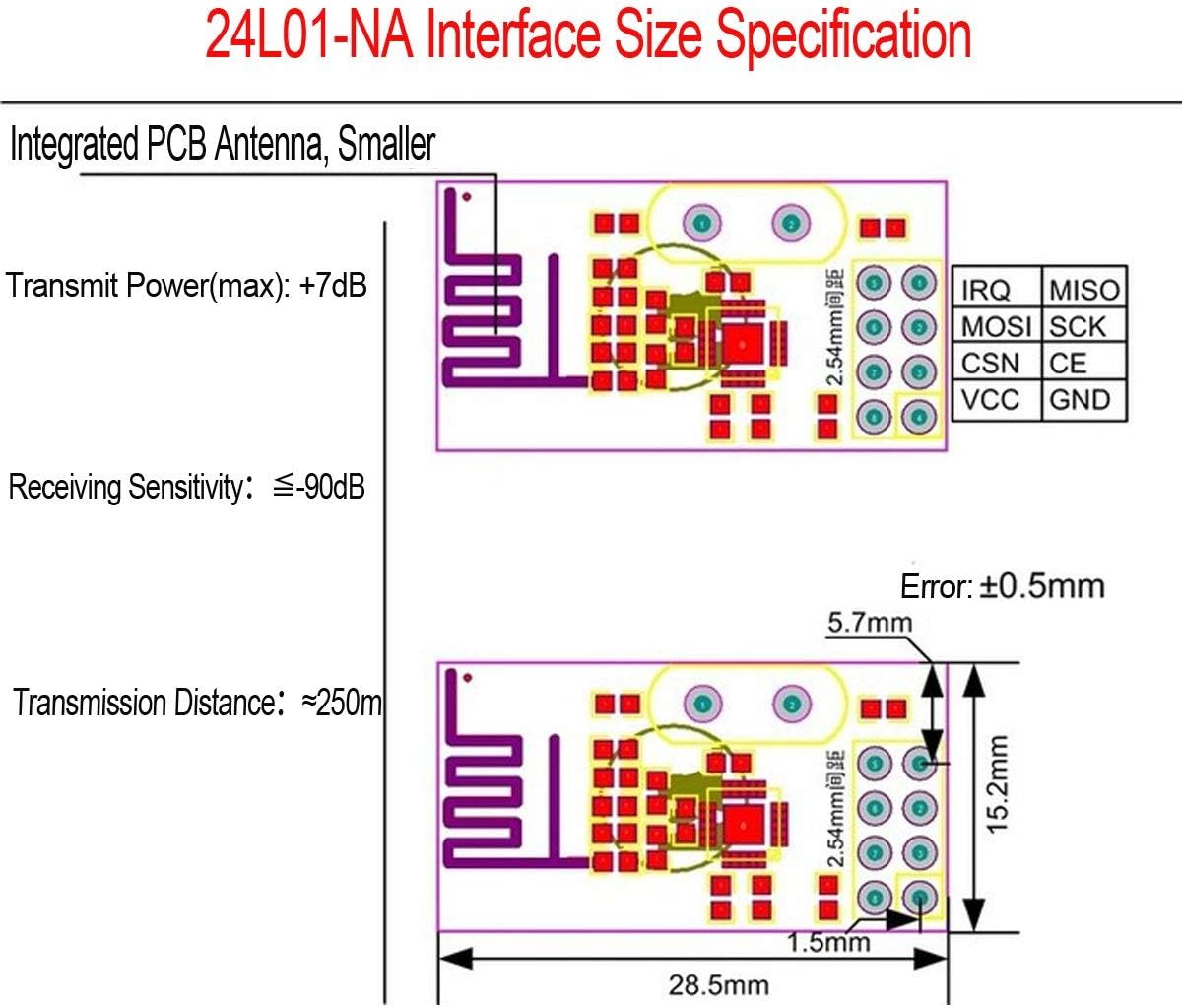

MakerFocus 10pcs NRF24L01+ 2.4GHz Wireless RF Transceiver Module Compatible with Ar duino Raspberry Pi

Specifications

About this product

Specification: * 100% Quality Guarantee; * Model:NRF24L01; * nRF24L01 is a single chip radio transceiver for the world wide 2.4 - 2.5 GHz ISM band. * The transceiver consists of a fully integrated frequency synthesizer, a power amplifier, a crystal oscillator, a demodulator, modulator and Enhanced ShockBurst? protocol engine. * Output power, frequency channels, and protocol setup are easily. * programmable through a SPI interface. Current consumption is very low, only 9.0mA at an output power of -6dBm and 12.3mA in RX mode. * Built-in Power Down and Standby modes makes power saving easily realizable. * Maximum operating speeds up to 2Mbps, GFSK modulation efficiency, Anti-interference ability, Particularly suitable for industrial control applications. * 125 Communications channels, Multi-point communication and frequency hopping to meet the communication needs. * Built-in hardware CRC error detection, Multipoint communication address control. * Low-power 1.9 ~ 3.6V, only 1uA on Power down mode. * Built-in 2.4Ghz antenna. * Available software to set the address, only received local Address when output data(Provide interrupt instruction), can be directly connected to a variety of microcontrollers, Software programming is very convenient. * Support 6 Data channels of data reception. * Standard DIP Pitch Interface for embedded applications. You will get: 10 pieces of NRF24L01 + 2.4GHz RF Wireless Transceiver Module Please Note: * Please check pictures for more details. * Transceivers integrated module , transmit or receive can not be simultaneously by one module. * If you have any questions during use, please feel free to contact our service personnel. We will do our best to give you a satisfactory answer.
