MakerFocus ESP8266 Development Board WiFi Deauther Mini V3 with 1.3inch OLED Display DS3231 RTC USB C Connector with 5dB Antenna
See current price
Check the current price and availability on Amazon.com.
View on AmazonAffiliate link — we may earn a commission at no extra cost to you. Learn more
- Item Weight
- 0.634 ounces
- Item model number
- 24NZ09RJWT223MZQ6BG7L
- Manufacturer
- MakerFocus
- Brand
- MakerFocus
Key features
- Mini WiFi Deauther Project: Install the latest ESP8266 Deauther software. Using this software, you can perform different attacks to test WiFi networks. Please note that ESP8266 only supports 2.4GHz
- Product use link, password reset link, lost password, get it from the Product guides and documents
- ESP8266 Development Board: You can also use it to develop your own software. It is simple to use, just like any other ESP8266 development board
- Multiple Power Supply: Deauther Mini V3 can be powered by battery or USB C. Integrated TP4056x power solution, safer charging and discharging. On-board two LED, red to indicate charging and green for full power
- We Have a Strong After-sales Service Team: As long as you have any questions about the product, we will resolve your issue immediately if received your email, your satisfactory purchase experience is our greatest hope! How to email us? Plz click “MakerFocus” and click “Ask a question” to email us! Looking forward to your consultation
Specifications
| Product Dimensions | 5.12 x 3.54 x 1.97 inches |
|---|---|
| Item Weight | 0.634 ounces |
| Item model number | 24NZ09RJWT223MZQ6BG7L |
| Manufacturer | MakerFocus |
| Brand | MakerFocus |
| Color | Yellow |
| Connectivity Technology | Wi-Fi |
| Wireless Communication Standard | 802.11abg |
| ASIN | B082YTDPHD |
About this product

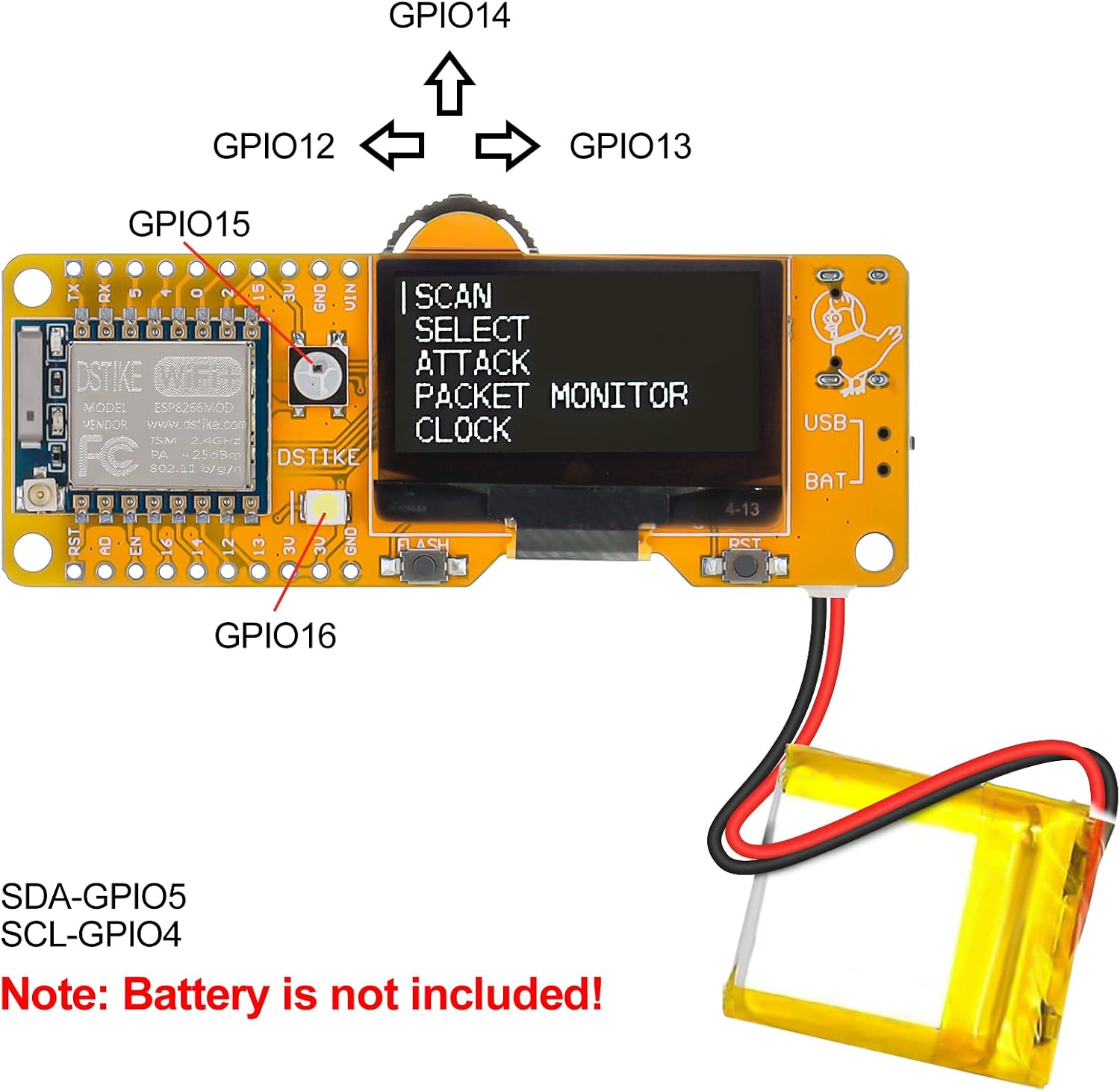

This tiny ESP8266 development board is a small version of WiFi deauther projects. It comes installed with the latest ESP8266 Deauther software. With this software, you can perform different attacks to test WiFi networks. Please note that the ESP8266 does only support 2.4GHz. For more details on the software, you can also use it to develop your own software. It is simple to use, just like any other ESP8266 development board. GPIOs and hardware info: Display: SH1106 1.3" OLED Display SDA: GPIO 5 (D1) Display SCL/SCK: GPIO 4 (D2) WS2812b LED: GPIO 15 (D8) Button Up: GPIO 12 Button Down: GPIO 13 Button Select: GPIO 14 High Light LED: GPIO16 All ESP8266 pins break out. What makes it special? Only ~80mA power usage TP4056X battery protection solution Included 5dB antenna All GPIO breakouts and 3.3 and 5V output 2 LEDs to indicate battery charging status (Red:Charging,Green:Full) Usage: You can use it with the display and buttons: Package Including: 1 * ESP8266 development board Deauther WiFi with 1.3inch OLED 1 * 5db antenna 1 * Normal pin
