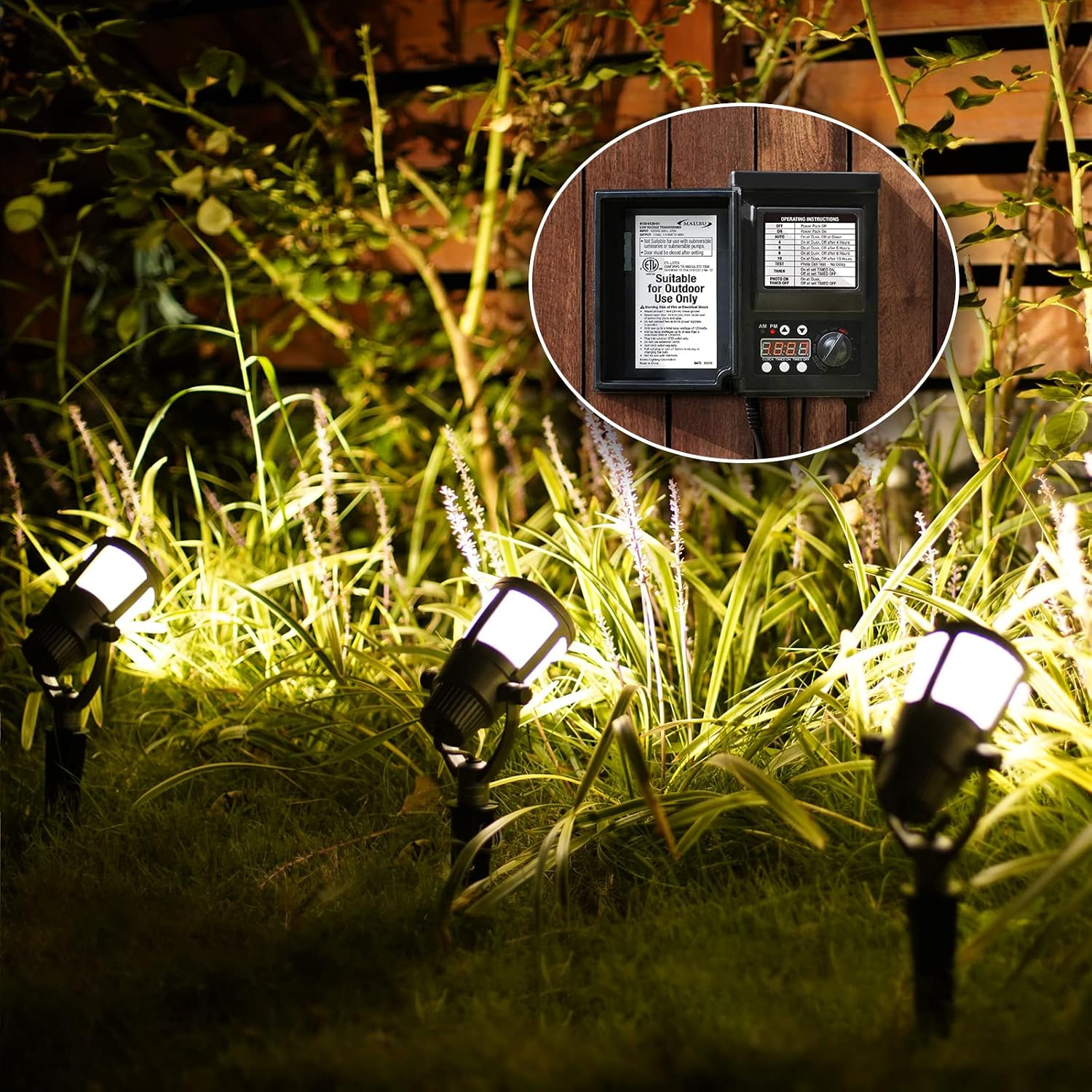

Malibu Low Voltage Landscape Transformer 200W Low Voltage Landscape Lighting Power Pack for Outdoor Spotlight Path Light Floodlight 120V to12V with Photo Sensor Timer and Weatherproof Shield
See current price
Check the current price and availability on Amazon.com.
View on AmazonAffiliate link — we may earn a commission at no extra cost to you. Learn more
- Manufacturer
- Malibu
- Part Number
- 8655791
- Item Weight
- 11.45 pounds
- Product Dimensions
- 5 x 4.2 x 8.3 inches; 11.48 Pounds
Key features
- ✅ WIDE APPLICATION: 120V AC input 12V AC output, suitable for all low voltage outdoor landscape lighting. Whether you're looking to power outdoor lighting or security systems, our Malibu 200W low voltage transformer offer a safe and efficient solution, allowing you to power a variety of lighting fixtures to ensure that your lawn, patio, pathway or garden is brightly lit
- ✅ EASY TO INSTALL: Low-voltage cable can be connected directly to the output port at the bottom of the transformer, no complicated wiring work is required Hanging holes on the back and included mounting screws allow direct mounting on outdoor walls There are clear instructions and a user-friendly design so you can get your outdoor lighting system up and running in no time, making for a hassle-free installation experience even for novices
- ✅ VERSATILE: 6 modes - whether you want your lights to turn on automatically at dusk and off at dawn, turn on at dusk and off at the designated time, stay on or off, turn off after 4/6/8/10 hours, set a specific on/off time, or test photo sensor, Malibu's customizable outdoor lighting settings will meet your needs
- ✅ SAFE: 12VAC output voltage reduces the risk of electric shock, making it a safe choice for outdoor lighting. Built-in circuit overload protector prevents damage to your equipment and fixtures, further enhancing its safety
- ✅ ONE YEAR WARRANTY: If any defects or problems occur within one year from the date of purchase, you will receive repair or replacement service so you can buy with confidence. Upgrade your outdoor lighting system with a transformer that has a 12V AC output voltage and a one-year warranty and enjoy a full year of worry-free experience
Specifications
| Brand | Unknown |
|---|---|
| Manufacturer | Malibu |
| Part Number | 8655791 |
| Item Weight | 11.45 pounds |
| Product Dimensions | 5 x 4.2 x 8.3 inches; 11.48 Pounds |
| Item model number | 8655791 |
| Assembled Height | 8.3 inches |
| Assembled Length | 5 inches |
| Assembled Width | 4.2 inches |
| Style | Square |
| Shape | Square |
| Material | Plastic |
| Voltage | 12 Volts |
| Special Features | Overheating and overload protection |
| Shade Material | Plastic |
| Light Direction | Up/Down Light |
| Power Source | Corded-electric, Led, Halogen |
| Batteries Included? | No |
| Batteries Required? | No |
| Type of Bulb | Halogen, LED |
| Wattage | 200 watts |
| Item Dimensions LxWxH | 5 x 4.2 x 8.3 inches |
| Current Rating | 3 Amps |
| Minimum Frequency | 50 Hz |
| ASIN | B07D7VF1KV |
About this product
Q: How to install transformer? A: ● Select a location near an electrical outlet and place the transformer on a flat, stable surface ● Split one end of the cable about 3 inches (being careful not to expose the copper wire) and strip 5/8 inch of insulation from the wire. Insert the stripped end under the termination cleat and repeat with the other cleat, connecting the low voltage cable ● Install the screws according to the spacing of the back holes, then install the transformer (make sure it is at least 12 inches off the ground) Q:Where does the transformer need to be installed? A: ● It should be installed in a dry, well-ventilated outdoor area away from water and heat sources ● The location, position and orientation of the photo eye can be adjusted until the transformer turns on at the desired light level. Q:How to set the various functions of the transformer? A: 1. Set the Clock to the local time. 2. Select the mode. ● AUTO: The transformer turns on automatically at dusk and turns off automatically at dawn ● TIMER: Press and hold the TIMED ON/TIMED OFF button while press the ▴ or ▾ button to set the transformer turn on and off time ● Photo On/Timed OFF: Press and hold the TIMED OFF button while press the ▴ or ▾ button to set the transformer turn off time. The transformer turns on at dusk and turns off at the set time ● 4/6/8/10: The transformer turns on at dusk and turns off after 4/ 6/ 8/10 hours Q: What is the weight and size of the transformer? A: ● Weight: 10.97 pounds ● L x W x H: 5 x 4.2 x 8.3 inches Q: Which lights are the transformer suitable for? A: Generally speaking, it is widely applicable to all lighting fixtures with input voltage of 12V AC, including LED, halogen, incandescent lights etc
