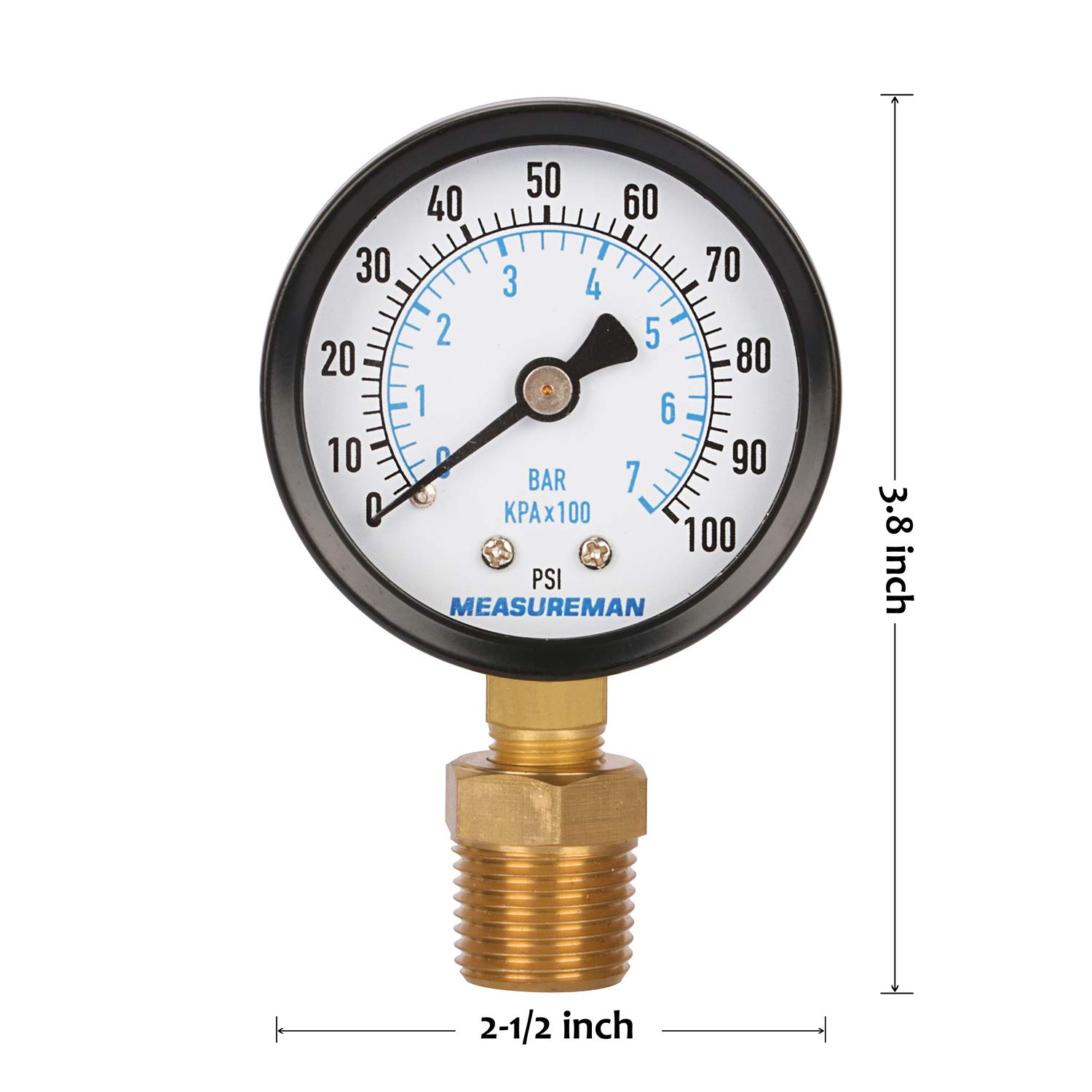

MEASUREMAN 2-1/2" dial, 1/4"NPT Lower Mount, Steel case, Brass Inside, Dry, 0-100psi/kpa, Adaptor 1/2"NPT Male
See current price
Check the current price and availability on Amazon.com.
View on AmazonAffiliate link — we may earn a commission at no extra cost to you. Learn more
- Material
- Aluminum,Copper Alloy,Plastic,Steel,Brass
- Item Dimensions LxWxH
- 3.74 x 3.03 x 1.57 inches
- Item Weight
- 5.57 Ounces
- Product Dimensions
- 3.74 x 3.03 x 1.57 inches; 5.57 Ounces
Key features
- For pressure testing on the water well pump etc
- 2-1/2" dial size, process connection both 1/4"NPT and 1/2"NPT available
- Pressure range: 0-100psi/bar, 100xkpa double scale
- Black steel case, brass wetted parts, dry
- Accuracy: +/-3-2-3%
Specifications
| Brand | MEASUREMAN |
|---|---|
| Material | Aluminum,Copper Alloy,Plastic,Steel,Brass |
| Item Dimensions LxWxH | 3.74 x 3.03 x 1.57 inches |
| Item Weight | 5.57 Ounces |
| Product Dimensions | 3.74 x 3.03 x 1.57 inches; 5.57 Ounces |
| Item model number | MA076 |
| Manufacturer | MEASUREMAN |
| Country of Origin | China |
| ASIN | B08961TCCB |
About this product
Description "This pressure gauge is designed for water pressure measuring in the well pump etc Dial size : 2-1/2"" Process connection : 1/4"" NPT male lower mount, with 1/2""NPT adaptor Case : Black steel case and bezel Window : Clear plastic Dial plate : aluminum, with pointer stop Pointer : Aluminum, black, DIN style Boudon tube : Copper alloy Movement : Brass Connection : Brass IP class : IP43 Accuracy : +/-3-2-3% Pressure range : 0-100psi/bar, 100xkpa, double scale Working temperature : -4 to 140 deg F/-20 to 60 deg C Ambient temperature : 140 deg F/60 deg C maximum Measureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The "Measureman" branded products are the combination of continuous good quality and affordable price. "Measureman" products are selected and designed by professional engineers.
