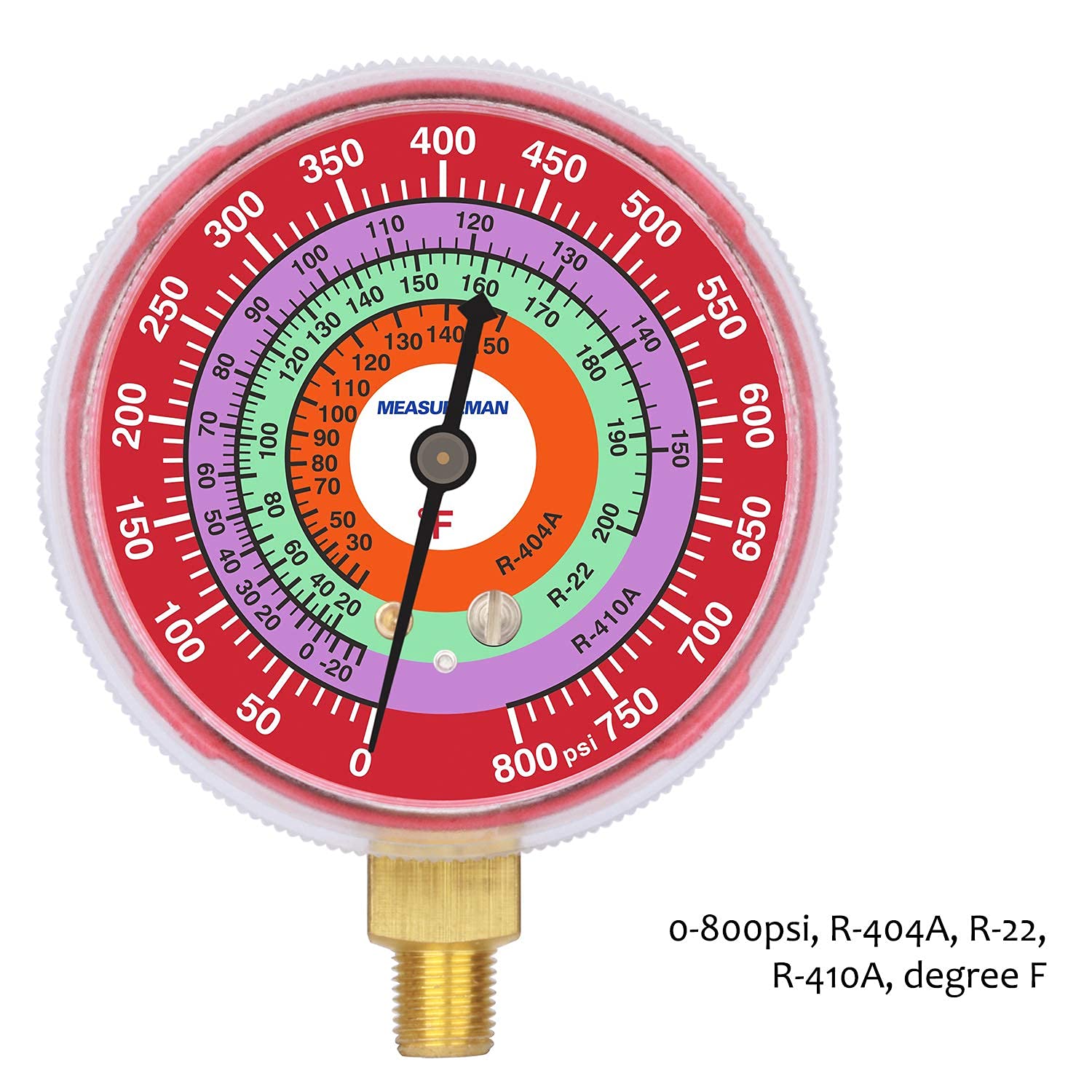

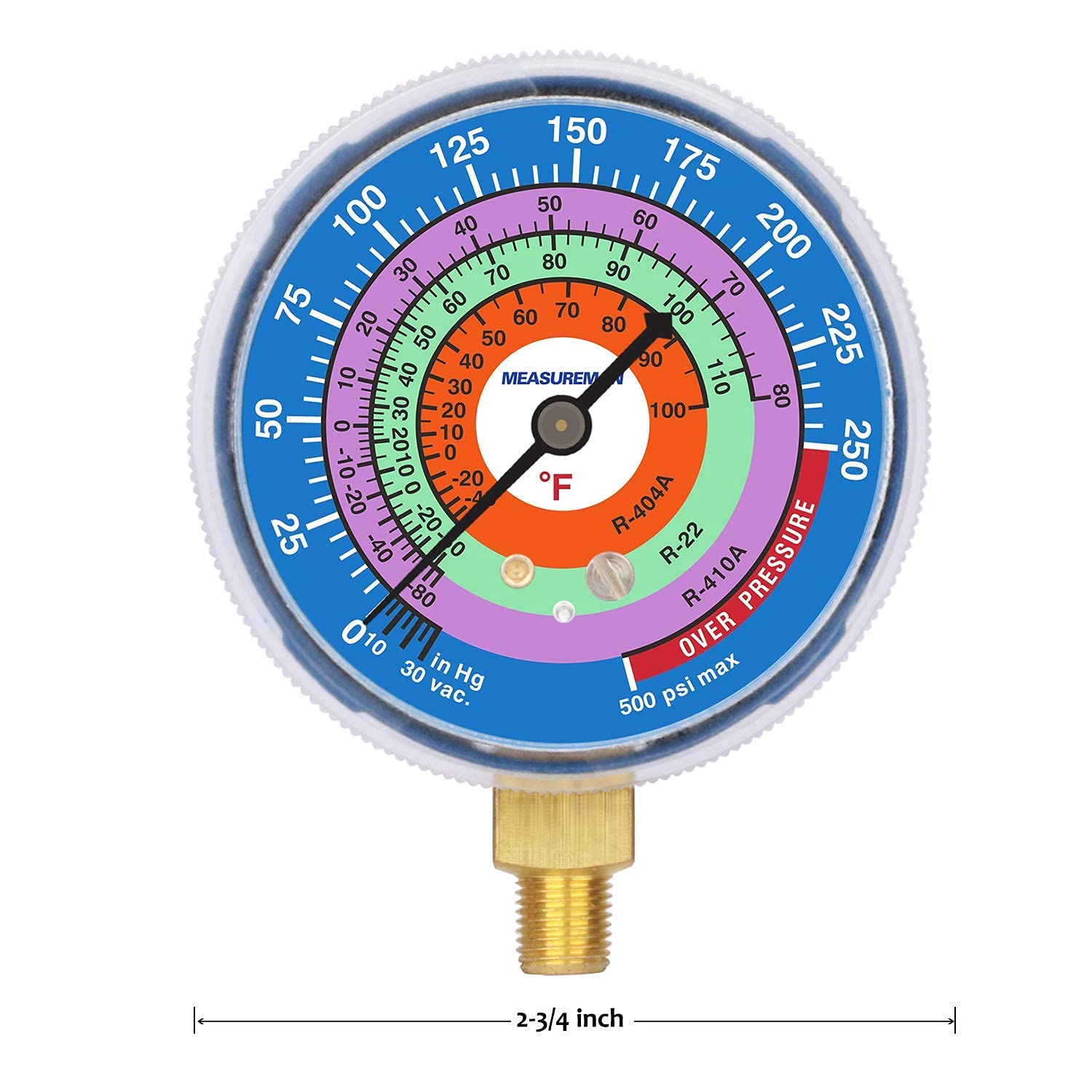

MEASUREMAN Refrigeration Pressure Gauge, 2-3/4" Dial, Blue Dial & Red Dial, 1/8" NPT Lower Mount, 30inHg-0-250psi & 0-800psi kit

Specifications

About this product

Description For pressure measuring on refrigeration fluid R-404A, R-22, R-410A, R-404A in orange zone R-22 in green zone R-410A in pink zone 2-3/4" dial size, 1/8"NPT lower mount Blue steel case, screw on polycarbonate window, Aluminum dial plate, cupped shape, black aluminum micro-adjustable pointer, with pointer stop Copper bourdon tube, brass movement and connection Pressure range : -30inHg-0-250psi, 250-500psi Retarded, damping grease for vibration proof Restrictor installed IP class : IP54 Accuracy : +/-1.6% Working temperature : -4 to 140 deg F/-20 to 60 deg C Ambient temperature : 140 deg F/60 deg C maximum For pressure measuring on refrigeration fluid R-404A, R-22, R-410A, R-404A in orange zone R-22 in green zone R-410A in pink zone 2-3/4" dial size, 1/8"NPT lower mount Red steel case, screw on polycarbonate window, Aluminum dial plate, cupped shape, black aluminum micro-adjustable pointer, with pointer stop Copper bourdon tube, brass movement and connection Pressure range : 0-800psi, damping grease for vibration proof Restrictor installed IP class : IP54 Accuracy : +/-1.6% Working temperature : -4 to 140 deg F/-20 to 60 deg C Ambient temperature : 140 deg F/60 deg C maximum Measureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The "Measureman" branded products are the combination of continuous good quality and affordable price. "Measureman" products are selected and designed by professional engineers.
