PLUSPOE 40mm x 10mm DC 12V Brushless Cooling Fan, Dual Ball Bearing for Computer case 3D Printer Humidifier and Other Small Appliances Series Repair Replacement
See current price
Check the current price and availability on Amazon.com.
View on AmazonAffiliate link — we may earn a commission at no extra cost to you. Learn more
- Power Connector Type
- 2-Pin
- Voltage
- 12 Volts
- Wattage
- 1.2 watts
- Cooling Method
- Air
Key features
- Brushless cooling fan 12vdc 0.06A 40mm x 40mm x10mm Speed 6800 RPM Fans for computer case 40mm 3d Printer fan used in humidifier, aromatherapy and other small appliances series; small heat radiating communication equipment; military equipment; intelligent industrial control equipment plate cooling heat, high precision medical equipment cooling; pc cpu server cooling dissipation; electronic cooling fans etc, Repair Replacement
- Airflow: 7.56CFM, Speed: 6200PRM, Noise: 27.50dBA
- DC Brushless Cooling Fan, Rated Voltage: DC 12V, Current: 0.06A; Dimensions: 40x40x10mm (1.6 x 1.6 x 0.36inch)
- Connector: 2 Terminal Connector with 2Pin-ph2.5; Compact motor design, the NF-A4x10's motor hub is smaller than with conventional 4cm fans. This allows for more blade surface area and thus contributes to the NF-A4x10's superior airflow and pressure performance.
- Warranty: two years, Package: 1x 12V DC Brushless Fans
Specifications
| Brand | PLUSPOE |
|---|---|
| Power Connector Type | 2-Pin |
| Voltage | 12 Volts |
| Wattage | 1.2 watts |
| Cooling Method | Air |
| Compatible Devices | Desktop |
| Noise Level | 27 dB |
| Material | Plastic |
| Maximum Rotational Speed | 6800 RPM |
| Air Flow Capacity | 7.56 Cubic Feet Per Minute |
| Item Weight | 1.76 ounces |
| Manufacturer | PLUSPOE |
| ASIN | B0836FR56Q |
About this product

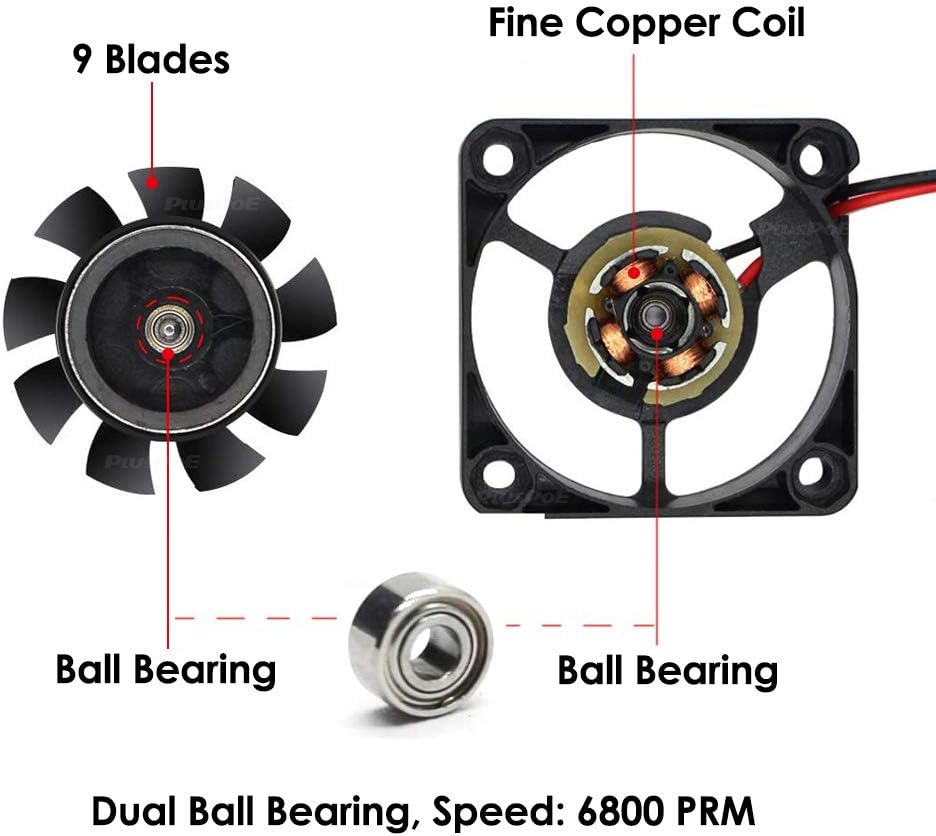

Package Included: 1 x 12V DC brushless fans. Dimension: 40x40x10mm Housing: Black PBT (UL94V-0) Fan Blade: 9 Blades (Provide Bigger Airflow than 7 Blades), Black PBT (UL94V-0) Bearing System: Two Ball Bearings Rated Voltage: 12V DC Operating Voltage Range: 10.8-13.2VDC Start-up Voltage: 6V DC Rated Current: 0.04A (0.10A Max.) Rated Power: 0.48W (1.2W Max.) Rated Speed: 6800RPM Air Flow: 7.56CFM Air Pressure: 3.19mmH2O *Noise Level: 27.5 dB(A) Conform to RoHS: Yes Safety Approvals: CE ROHS Life Expectancy: 50000H at 25degree test Net Weight: 18.7g *Acoustical Noise Testing Condition: Fan is hanged in anechoic chamber, noise is measured at rated voltage in anechoic chamber with microphone at a distance of 1 meter formthe air intake.
