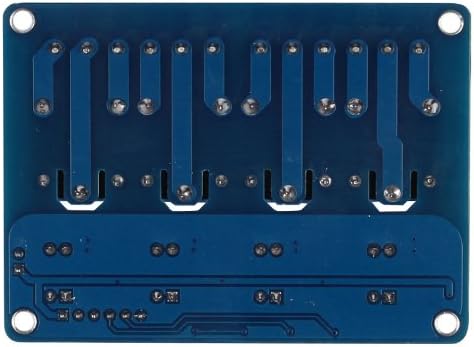

SainSmart 4-Channel Relay Module
  • SainSmart 4-Channel Relay Module
  • SainSmart 4-Channel Relay Module
  • SainSmart 4-Channel Relay Module
  • SainSmart 4-Channel Relay Module
SainSmart

SainSmart 4-Channel Relay Module

See current price

Check the current price and availability on Amazon.com.

View on Amazon

Affiliate link — we may earn a commission at no extra cost to you. Learn more

Contact Material
/
Contact Type
/
Current Rating
10 Amps
Mounting Type
/

Key features

  • 5V 4-Channel Relay interface board, and each one needs 15-20mA Driver Current
  • Equipped with high-current relay, AC250V 10A ; DC30V 10A
  • Standard interface that can be controlled directly by microcontroller (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP431, TTL logic)
  • Indication LED's for Relay output status

Specifications

Connector Type/
Contact Material/
Contact Type/
Current Rating10 Amps
Mounting Type/
BrandSainSmart
Operation ModeAutomatic
Coil Voltage5 Volts
Contact Current Rating10 Amps
Maximum Switching Current10 Amps
Specification Met/
Item model number101-70-101
Item Weight0.01 ounces
Product Dimensions4.5 x 3.2 x 1.19 inches
Item Dimensions LxWxH4.5 x 3.2 x 1.19 inches
ManufacturerSainStore Inc.
ASINB0B31MHVGM

About this product

This is a 5V 4-Channel Relay interface board, Be able to control various appliances, and other equipments with large current. It can be controlled directly by Microcontroller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).
