SainSmart DS212 Pocket Size Portable Handheld Mini Digital Storage Oscilloscope
See current price
Check the current price and availability on Amazon.com.
View on AmazonAffiliate link — we may earn a commission at no extra cost to you. Learn more
- Item model number
- DS212
- Batteries
- 1 Lithium Ion batteries required. (included)
- Manufacturer
- SainSmart
Key features
- Powerful But Simple to Use: Built-in signal generator, it has modes of vertical precise, horizontal precise measurement and triggering threshold. Operation is very simple and easy, using taps and swipes much like any smartphone.
- Easy Saving & Manage: Built-in 8 MB storage space, it makes saving and transferring waveform data and images easier than ever.
- Color Display: The 2.8" 320*240 bright color TFT display presents any measured AC current, including sine, square, sawtooth, and triangle waveforms.
- Portable & Compact: Its small form factor conveniently fits inside any pocket so it’s always ready when you need it. Built-in 3.7V 500mAh lithium battery.
- Versatile: DS212 is widely applicable in the academic experiment, electronics maintenance, electronic engineering tasks, etc.
Specifications
| Package Dimensions | 7.99 x 4.33 x 1.85 inches; 13.44 Ounces |
|---|---|
| Item model number | DS212 |
| Batteries | 1 Lithium Ion batteries required. (included) |
| Manufacturer | SainSmart |
| ASIN | B074QBQNB7 |
About this product

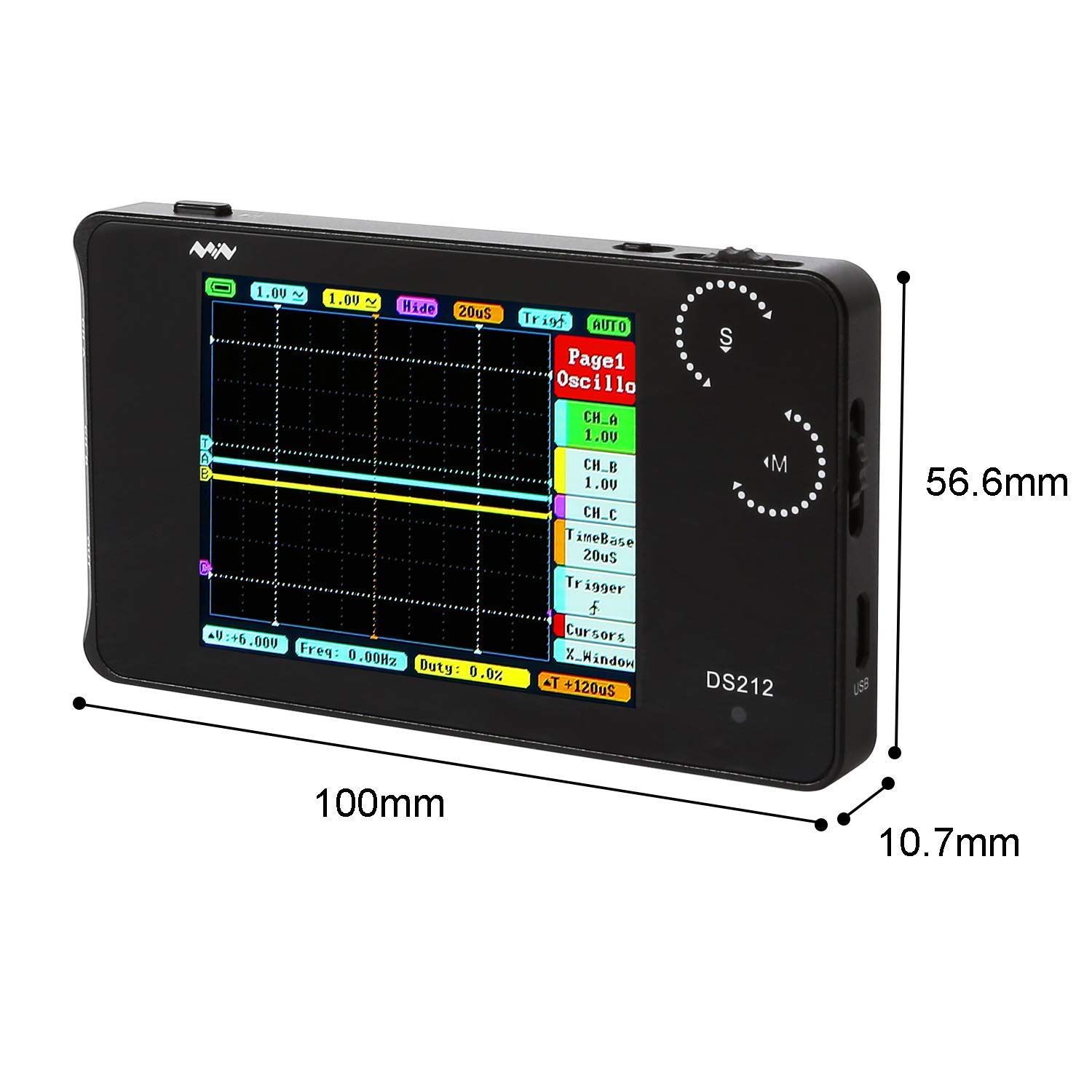

Overview The DS212 Mini Digital Handheld Oscilloscope is a staple to any electronics tool kit. Its 2-channel functionality makes it ideal for most experimental, maintenance, and engineering projects. Housed inside a durable shell with an aluminum alloy finish, the DS212 is sleek, compact, and incredibly powerful for its size. SPECIFICATIONS Model: DS212 MCU: STM32F303VC ADC: MCU internal ADC Channels: 2 analog channels, 1 operation channel Analog Bandwidth: 1 MHz Max Sample Rate: 10 MSa/s Max Sample Memory Depth: 8K Horizontal Sensitivity: 1uS/div to 2S/div (1-2-5 sequence step) Vertical Sensitivity: 20mV/div to 10V/div (1-2-5 sequence step) Analog Input Impedance: 1 MΩ Coupling: DC/AC Trigger Mode: ascend/descend edge trigger mode Math Waveforms: -A, -B, A+B, A-B, RecA, RecB, RecC Inbuilt Signal Generator: sine/square/triangle/sawtooth wave Synchronous Mode: auto, normal, single, none, scan value/average Storage: 8 MB flash disk memory APP Installed: 2 Operation: Button, Wheel button USB Port: Micro USB Battery: 500 mAh Screen Type: TFT LCD Screen Size: 2.8" Screen Resolution: 320 x 240 Dimension: 100 x 56.5 x 10.7 mm Weight (with battery): 90 g Open Source: application layer open-source Certifications: CE/FCC WHAT’S INCLUDED? 1x DS212 Mini Oscilloscope 1x Combined Probe 1x DSO Hook 1x Hex Key 1x Safety Instruction DOWNLOADS http://s3.amazonaws.com/s3.image.smart/download/101-10-600/DS212%20User%20Manual.pdf Note: Please use the supplied power cord which has been certified for your country/region
