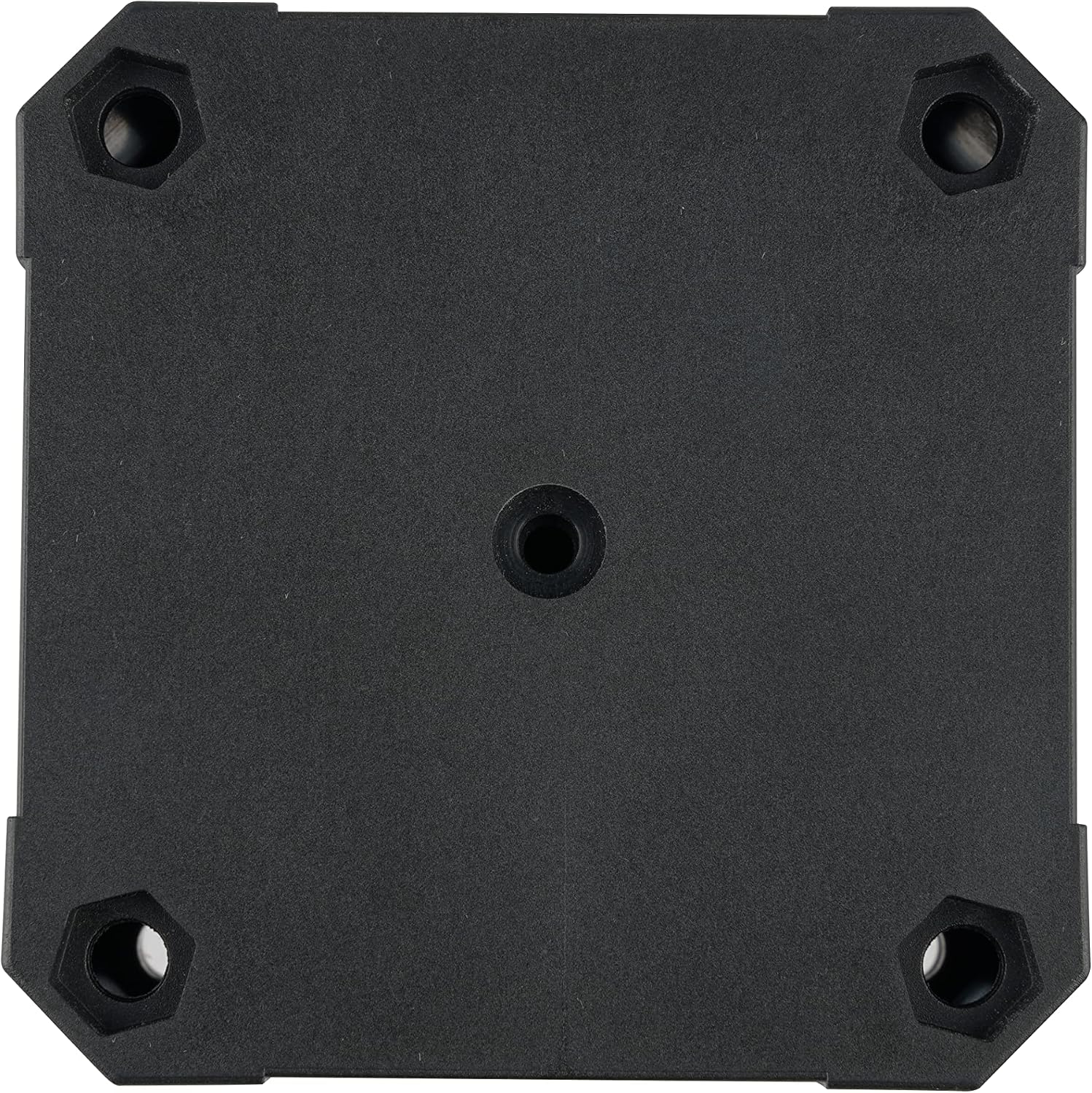

SEAFLO 12V/24V/48V Battery Disconnect Switch Isolator Switch for Marine, Boat, Car, RV, and ATV Vehicles (On/Off)
See current price
Check the current price and availability on Amazon.com.
View on AmazonAffiliate link — we may earn a commission at no extra cost to you. Learn more
- Current Rating
- 1250 Amps
- Operating Voltage
- 12 Volts
- Brand
- SEAFLO
- Terminal
- Screw
Key features
- Max.Volt (V):50
- Amp Draw (A):275
- Max Amp Draw (A):1250
- Switch Position:2
- An interchangeable labeling system allowing a full range of applications.
Specifications
| Operation Mode | ON-OFF |
|---|---|
| Current Rating | 1250 Amps |
| Operating Voltage | 12 Volts |
| Brand | SEAFLO |
| Terminal | Screw |
| Item Dimensions LxWxH | 2.85 x 2.85 x 2.9 inches |
| Actuator Type | Rotary |
| International Protection Rating | IP67 |
| Number of Positions | 2 |
| Control Method | App |
| Connectivity Protocol | X-10 |
| Color | White |
| Unit Count | 1 Count |
| Item Package Dimensions L x W x H | 3.2 x 3.1 x 3.1 inches |
| Package Weight | 0.25 Kilograms |
| Item Weight | 0.53 Pounds |
| Brand Name | SEAFLO |
| Country of Origin | United States |
| Manufacturer | SEAFLO |
| Part Number | S275201 |
| Size | Small |
| ASIN | B00EBQOKEQ |
About this product

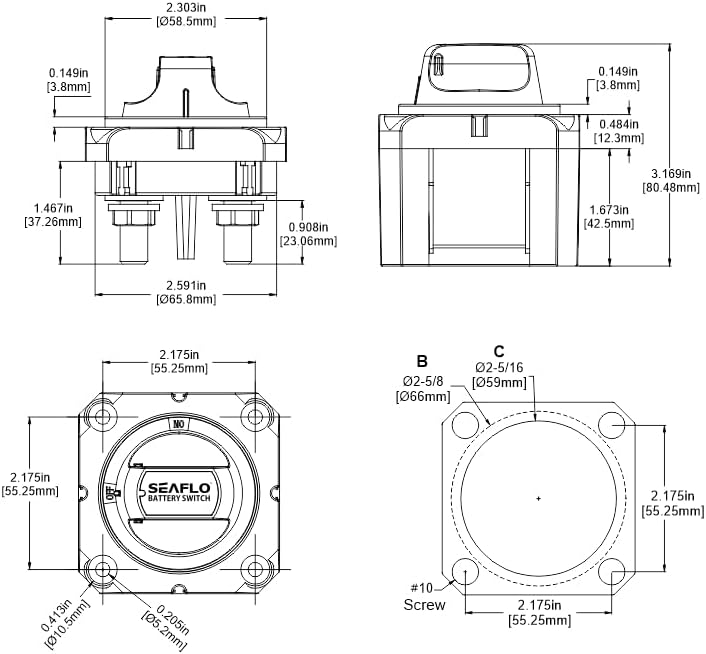

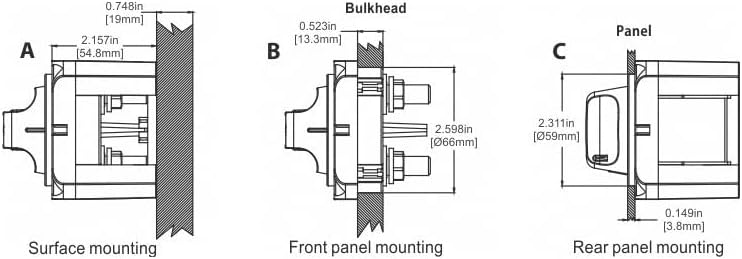

Description SEAFLO's SFCBS-275-201 is the perfect battery selector switch for your marine, RV, or electrical application. It has an incredible features list, high quality components, and amazing performance. Extra heavy duty construction allows for a capacity of 1250 Amps momentary and 275 Amps continuous at 12V DC. Our brand new design adds 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance. Suitable for 6V, 12V, 24V, and 32V systems. All SEAFLO products are covered by a 4-Year warranty. Details BRAND NEW SEAFLO SFCBS-275-201 Battery Selector SwitchSleek finish in black and white colorCapable of handling 275A continuous duty, 450A intermittent, and 1250A momentary at 12V DCBuilt for maximum conductivity and corrosion resistanceCan be installed in any positionPerfect for 6V, 12V, 24V, and 32V systemsFor use with one batterySmall, sturdy, and easy to use"OFF" - Complete disconnect of battery"ON" - Operation of Battery only Technical specifications Voltage: Suitable for 6V, 12V, 24V, and 32V systemsAmperage Capability: 275 amps continuous, 450 amps intermittent, 1250 amps momentary at 12V DCTerminal Stud Size: 3/8"-16 tin-plated copper studsDimensions: Approx. 2.85" x 2.85" x 2.9"Weight: 7 oz (0.2kg)
