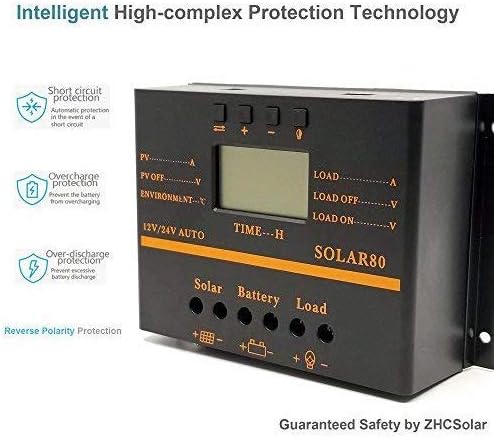

Solar Charge Controller 80A PWM 12V 24V 1920W Solar Panel Charger Discharge Regulator with 5V USB Output Multip Circuit Protection Anti-Fall Durable ABS Housing Discharge Regulator for Lighting System
See current price
Check the current price and availability on Amazon.com.
View on AmazonAffiliate link — we may earn a commission at no extra cost to you. Learn more
- Item Weight
- 1.35 pounds
- Manufacturer
- HZRE
- Batteries required
- No
- Brand
- HZRE
Key features
- High Charging Ability: Large Power 80 amp solar charge controller, 12V/24V Auto Identification, 5V USB output, Max PV Array input Voltage/Power (Battery Voltage): 24V/960W(12V), 48V/1920W(24V), Get Free Battery Monitor in the Package
- Intelligent High-complex Protection Technology: Short Circuit Protection, Overcharge Protection, Over-current Protection, Reverse Connection Protection
- ABS Material Shell Design: Anti-Fall & Durable Overall Design, Achieve the Longest Product Service Lifetime
- Enhanced Heat Sink: High-Quality aluminum alloy Heat Sink, Super Efficient Heat Dissipation, the thickest Part can Reach to 0.12 In. Simple Operation: 1, Simple & Easy Button Operation 2, Adjustable Charge-Discharge Parameter 4, Operation Mode of Load is Settable
- Our controller is backed by FULL MONEY BACK GUARANTEE! If for any reason you are not satisfied with this purchase, kindly contact us and our dedicated world class customer support team will offer a replacement or full refund without any cost from your side!
Specifications
| Package Dimensions | 8.3 x 5.6 x 2.8 inches |
|---|---|
| Item Weight | 1.35 pounds |
| Manufacturer | HZRE |
| Batteries required | No |
| Brand | HZRE |
| Voltage | 24 Volts |
| Product Dimensions | 7.4"L x 2.4"W x 5.04"H |
| ASIN | B083KN9H22 |
About this product
This controller has an efficient charging system and can handle high power input reach to 1920W, this controller equipped with industrial-grade STM 8 microprocessor to control the charge and discharge process. It has perfect and liable battery charge and discharge period management. The charge circuit is characterized by high efficiency and low consumption by controlling the MOSFET of the ultra-low internal resistance with PWM. This controller has multiple load control modes and adaptable to different industries. the housing of this controller is made of superior quality ABS material that is extra durable.USB output port also equipped with this controller for electrical devices charging.User Manual is available for DownloadProduct Specification:Charge Control Mode: PWMRated Current : 80ARated voltage: 12V/24V Automatic IdentificationMax input Power: 960W(12V), 1920W(24V)Installation Cable Area: 3# AWG (25mm2)Maximum Voltage of solar panel: 48VFloat Voltage: 13.8V/27.6VLow Voltage Disconnection: 10.7V/21.4VLow Voltage Re-connection: 12.5V/25VNo load loss: <30mAloop voltage drop:<200mVTemperature compensation: -4mV/Cell/°COperating Temperature: -10℃~60℃Storage temperature: -30℃~70℃Humidity Requirement: ≤90％Dimension: 128 mm×188 mm×61mmMounting hole spacing: 98mm×178 mm --Φ5Net Weight: 720gPackage List:1 x 80A Solar Charging Controller1 x Temperature Sensor1 x User Manual
