Square D

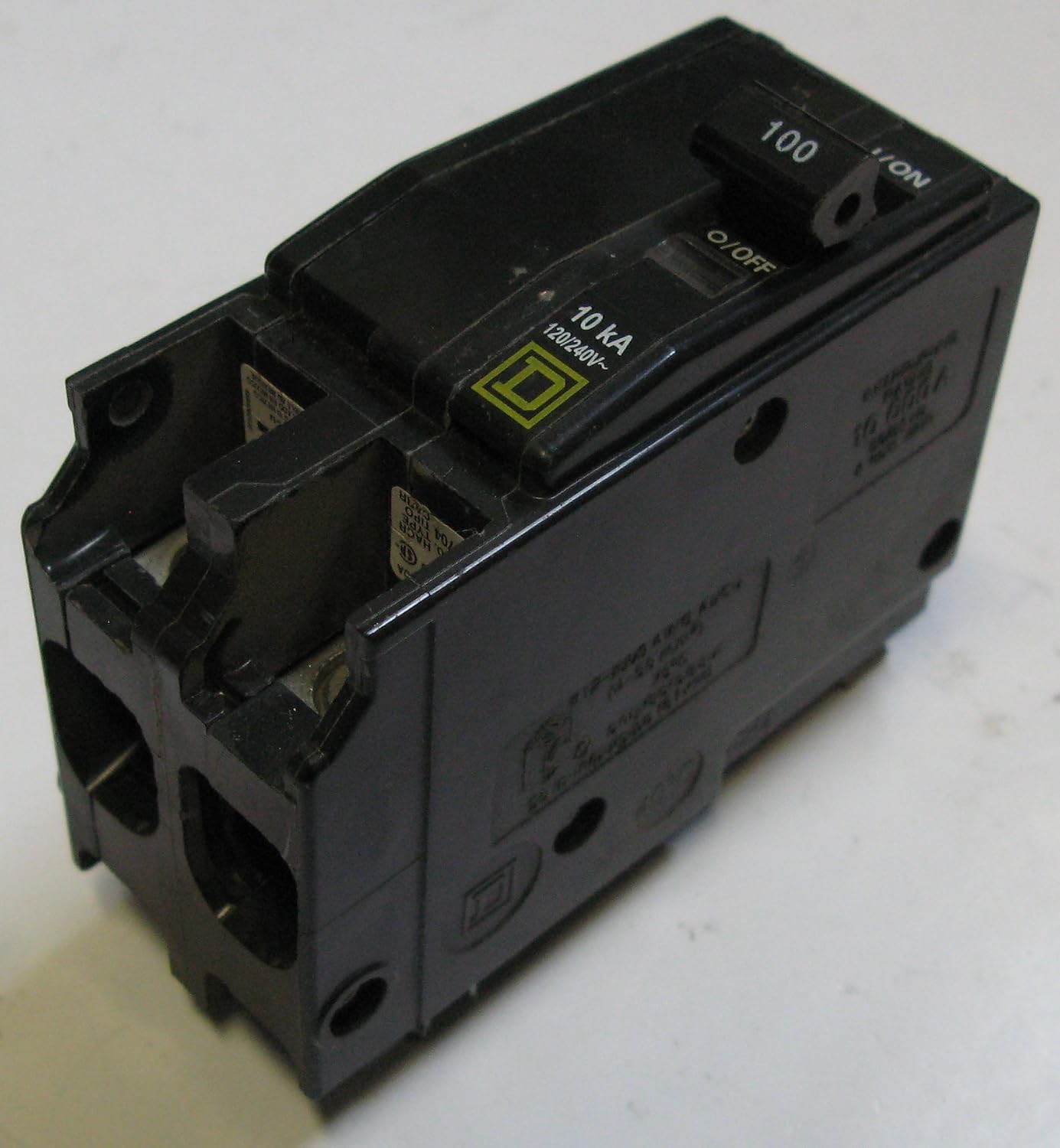

Square D Type QO 2-Pole Molded Case Circuit Breaker 100A QO2100
See current price
Check the current price and availability on Amazon.com.
View on AmazonAffiliate link — we may earn a commission at no extra cost to you. Learn more
- Current Rating
- 100 Amps
- Voltage
- 240 Volts
- Item Dimensions LxWxH
- 3.25 x 1.5 x 3.25 inches
- Circuit Breaker Type
- Standard
Key features
- Compatible with QO load centers and CSED devices
- ANSI certified and UL listed
- Voltage: 120/240
Specifications
| Brand | Square D |
|---|---|
| Current Rating | 100 Amps |
| Voltage | 240 Volts |
| Item Dimensions LxWxH | 3.25 x 1.5 x 3.25 inches |
| Circuit Breaker Type | Standard |
| Number Of Poles | 2 |
| Product Dimensions | 3.25 x 1.5 x 3.25 inches |
| Manufacturer | Square D Co. |
| Part Number | QO2100 |
| Item Weight | 10.6 ounces |
| Item model number | QO2100 |
| Item Package Quantity | 1 |
| Batteries Included? | No |
| Batteries Required? | No |
| National Stock Number | 5925-00-089-9928 |
| ASIN | B00CONPG46 |
About this product
QO2100C 100 Amp Double-Pole Circuit Breaker . The QO 100 Amp 2-pole circuit breaker contains a thermal-magnetic tripping mechanism and has a 2-pole common trip and the breaker features a Visi-Trip indicator to easily identify the tripped circuit in the load center. This circuit breaker has a maximum load of 240 volts with a 10000 AIR. Use for overload and short-circuit protection of your electrical system Product Details: 2-pole with a common trip Compatible with QO load centers and CSED devices 10000 AIR ANSI certified and UL listed Item Name: QO2100 Manufacturer: Square D Packaged Weight: 2 lb Type: QO Amperage: 100 Voltage: 120/240
