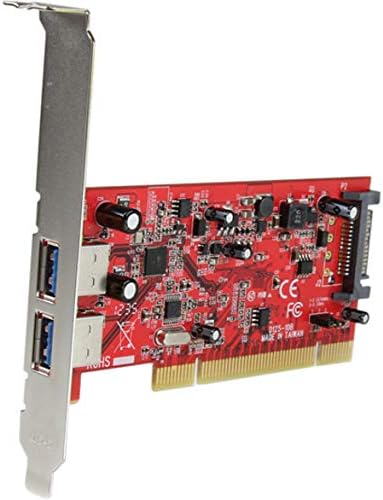

StarTech.com 2 Port PCI SuperSpeed USB 3.0 Adapter Card with SATA Power - Dual Port PCI USB 3 Controller Card (PCIUSB3S22)

Specifications

About this product

Two-Port USB 3.0 Adapter Card- Cost-Effective Computer Upgrade The PCIUSB3S22 USB 3.0 card enables you to connect USB 3.0 peripherals to a PC through a legacy PCI host bus, which doubles the data transfer speeds when used with USB 3.0 peripherals than would be possible with a USB 2.0 host connection. Interface: 1 x PCI / PCI X (universal 3.3 & 5 V 32 bit) male. Data transfer rate: Up to 5GB/s. Ports: 2 x 9 pin Type A Female USB 3.0- USB External, 1 x 15 pin- SATA Power Internal. Form factor: Plug in card. Platform supported: PC. Number of ports: 2. Operating systems: Windows XP(32/64 bit), Server 2003(32/64 bit), Server 2008 R2, vista(32/64 bit), 7(32/64 bit)/ 8(32/64 bit). Card type: Standard Profile. Chipset ID: NEC uPD720202. Connector type: 1- PCI / PCI X (universal 3.3 & 5 V, 32 bit) male. Operating temperature: 5 to 50 deg C. Dimensions: 2.2"(H) x 0.4"(W) x 2.2"(L), 400.0 mil thickness. Connectivity technology: Wired. Provides up to 900mA of power over USB 3.0. Backward compatible with USB 2.0/1.x devices. System and cable requirements: Available PCI slot, SATA power connector. Package contents: 1 x PCI USB 3.0 card, 1 x low profile bracket, 1 x driver CD, 1 x instruction manual. Weight: 2.1 oz. Certification and standards: ROHS, CE, FCC, Green compliant. Warranty: Limited lifetime. With the two-port USB 3.0 adapter card, you can enjoy connecting two USB 3.0 peripherals such as smartphones or external hard drives. Offering speeds of up to 5 Gbps, these ports transfer data quickly and efficiently. Unlike other adapter cards, this one doesn't require a PCIe-equipped motherboard. It connects to a legacy PCI host bus, so you won't have to upgrade your motherboard to benefit from USB 3.0 ports.
