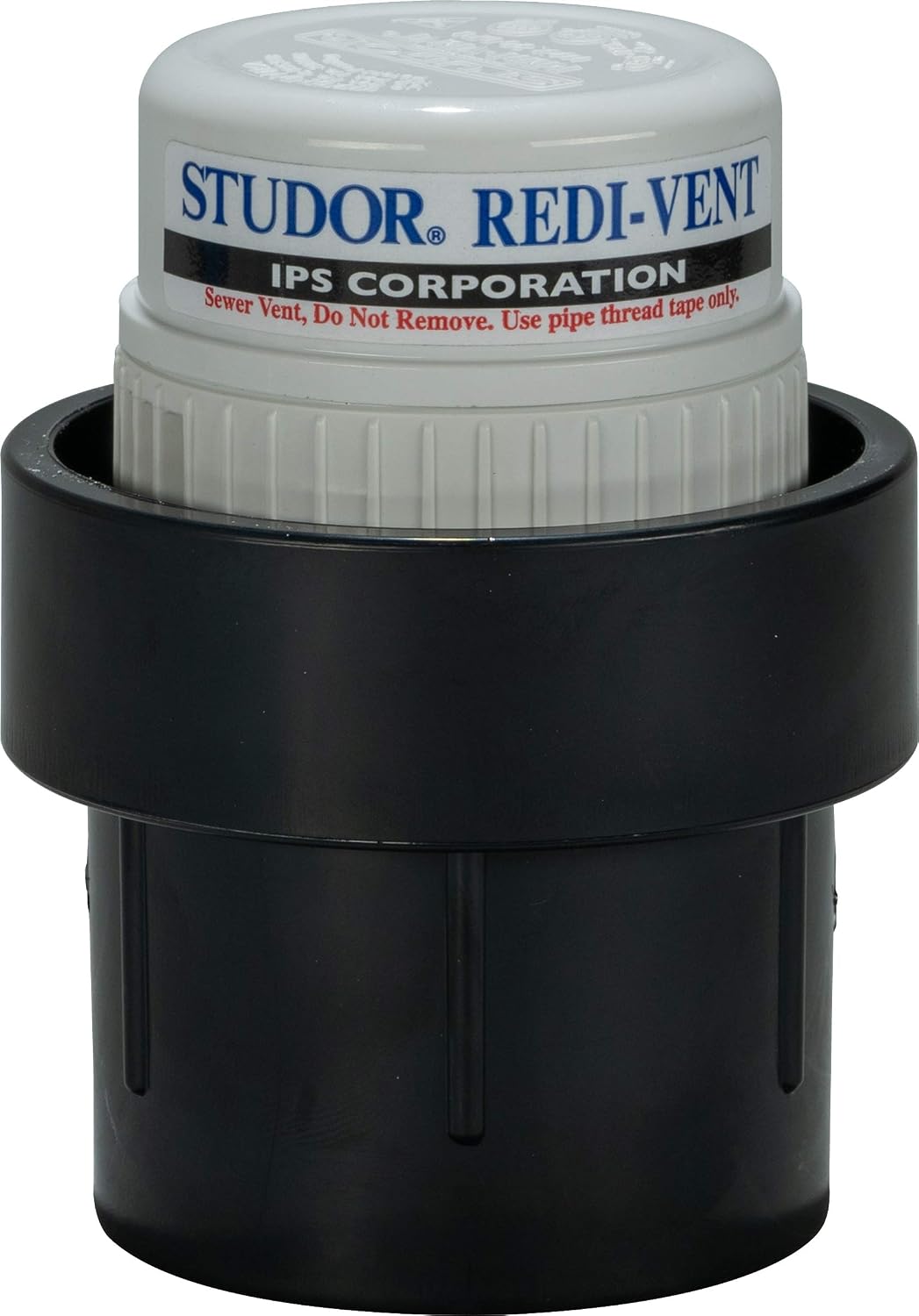

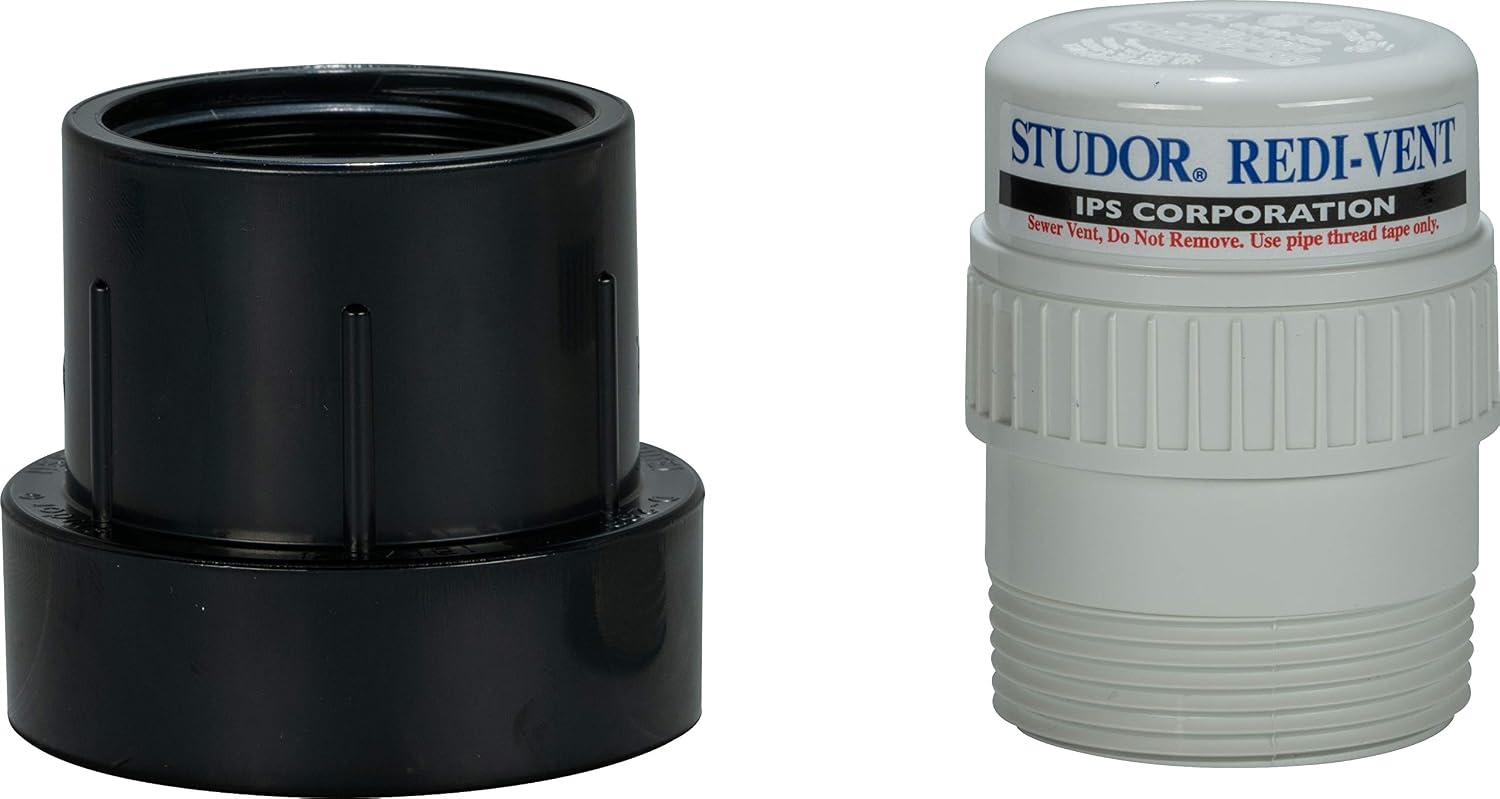

Studor 20349 Redi-Vent Air Admittance Valve with ABS Adapter, 1-1/2- or 2-Inch Connection
See current price
Check the current price and availability on Amazon.com.
View on AmazonAffiliate link — we may earn a commission at no extra cost to you. Learn more
- Material
- Pvc
- Brand
- Studor
- Color
- White
- Item Dimensions LxWxH
- 3 x 3 x 3.5 inches
Key features
- Compact air admittance valve with ABS adapter; ideal for a single fixture or group of fixtures up to 20 DFUs (drain fixture units) on a branch
- Creates ventilation that prevents the loss of water seal in trap
- Uses gravity to automatically close seal and prevent circulation of unpleasant bathroom or drain odors
- Fits 1-1/2-inch and 2-inch piping; temperature rating of -40°F to 150°F (-40°C to 65.6°C); complies to ANSI/ASSE 1050 and 1051; this style air admittance valve is not recognized as a mechanical vent in the International Building Code
- Exclusive vermin protection system keeps out bugs and foreign objects
Specifications
| Size | 1/4 Pint (4 fl oz) |
|---|---|
| Material | Pvc |
| Brand | Studor |
| Color | White |
| Item Dimensions LxWxH | 3 x 3 x 3.5 inches |
| Connector Type | Trap |
| Exterior Finish | ABS |
| Thread Type | NPT |
| Item Weight | 0.2 Pounds |
| Number of Pieces | 1 |
| Product Dimensions | 3 x 3 x 3.5 inches; 3.2 Ounces |
| Item model number | 20349 |
| Manufacturer | IPS Corporation |
| Country of Origin | USA |
| Domestic Shipping | Item can be shipped within U.S. |
| International Shipping | This item can be shipped to select countries outside of the U.S. Learn More |
| ASIN | B08RL95P1V |
About this product
Simplify drainage and waste venting with the Studor Redi-Vent Air Admittance Valve. The unique design of the Studor Redi-Vent provides ventilation to prevent the loss of water seals in traps without the need for expensive roof penetration and vent piping. 1-1/2 or 2 Inch, NPT, 2.625 Inch Vent Height, 2 Inch Vent Dia, ABS, Temperature Rating: -40 to 150 deg F
