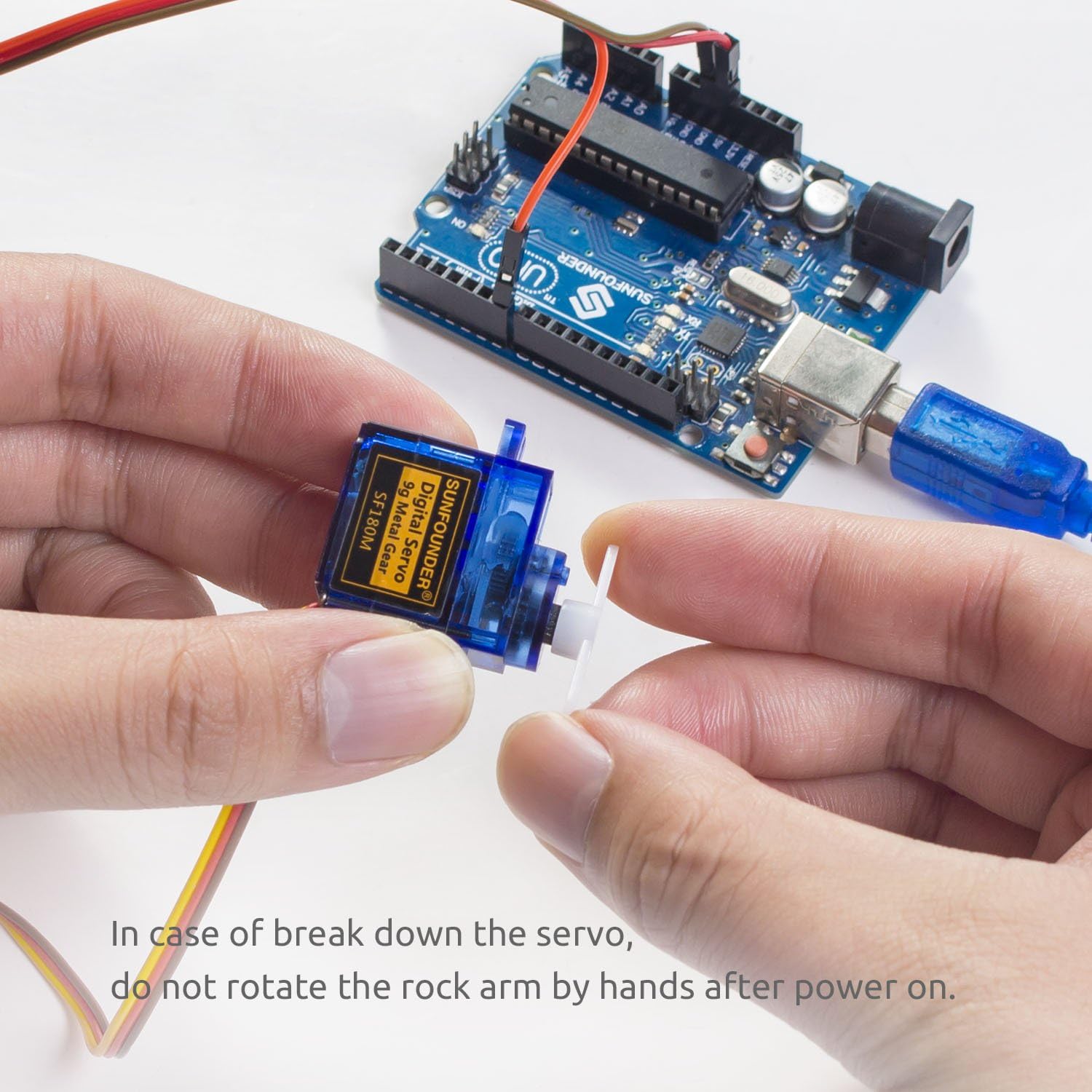

SunFounder 9g Metal Servo Gear RC Robot SF180M Digital Half Metal Semi-Metal Micro Servo Motor Helicopter Airplane Boat Robot Control 2pack

Specifications

About this product

Product description Test Environment Standard Every characteristic of the inspect must be normal temperature and humidity carry out the test,temperature 25±5℃ and relative humidity 65±10% of judgment made in accordance with this specification standard testing conditions. Electrical Specification Operating speed(at 4.8V no load): 0.11 Sec/60° Running current(at 4.8V no load): 90 mA Stall torque(at locked 4.8V): 2.5 kg-cm Stall current(at locked 4.8V): 600 mA Idle current(at stopped 4.8V): 3 mA Running life(at no load 4.8V): 100000 times Operating speed(at 6.0V no load): 0.09 Sec/60° Running current(at 6.0V no load): 100 mA Stall torque(at locked 6.0V): 3 kg-cm Stall current(at locked 6.0V): 730 mA Idle current(at stopped 6.0V): 3 mA Note:Running current(at no load) definition is average value when the servo running with no load. Control Specification Control system : Pulse width modification Operating travel: 180°±5° Neutral position: 1500 μ sec Rotating direction: Clockwise(When 1000~2000μ sec) Pulse width range: 750～2250 μ sec Maximum travel: Approx 140 °(When 750～2250 μ sec) Mechanical specification Connector wire length: 190±5 mm Limit angle: 200°±10° Weight: 9 grams(without servo horn and screw) Connector wire gauge: #28 AWG Horn gear spline: 21T Horn type: Two blade, One blade, Circle Package 2x SF180M Semi-metal Digital Servo Motor
