SunFounder Ultrasonic Module HC-SR04 Distance Sensor Compatible with Arduino R3 Mega2560 Duemilanove Nano Robot Rapsberry Pi 4B 3B+, 3B, 2 Model B & 1 Model B+

Key features

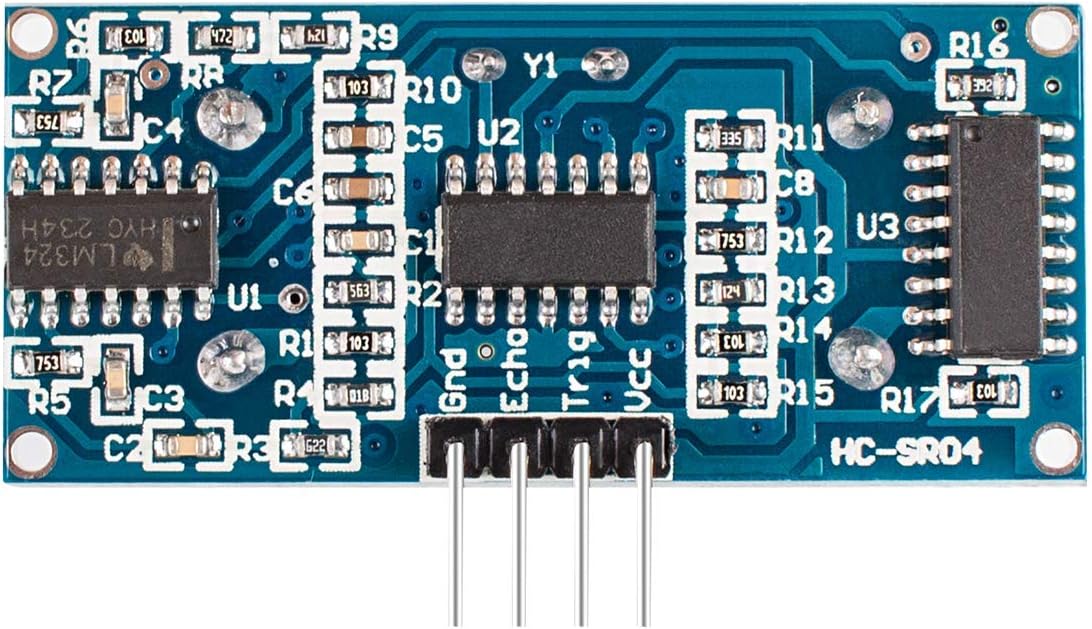

• Ultrasonic hc-sr04 distance measuring transducer sensor, it consists of ultrasonic transmitter, receiver, and control circuit.
• HC-SR04 Ultrasonic Sensor Distance Module: using IO trigger for at least 10us high level signal，When triggered it sends out a series of 40KHz ultrasonic pulses and receives echo from an object.
• Hc-sr04 Test Distance following formula: L = 1/2 × T × C ( L is the distance, T is the time between the emission and reception, and C is the sonic speed)

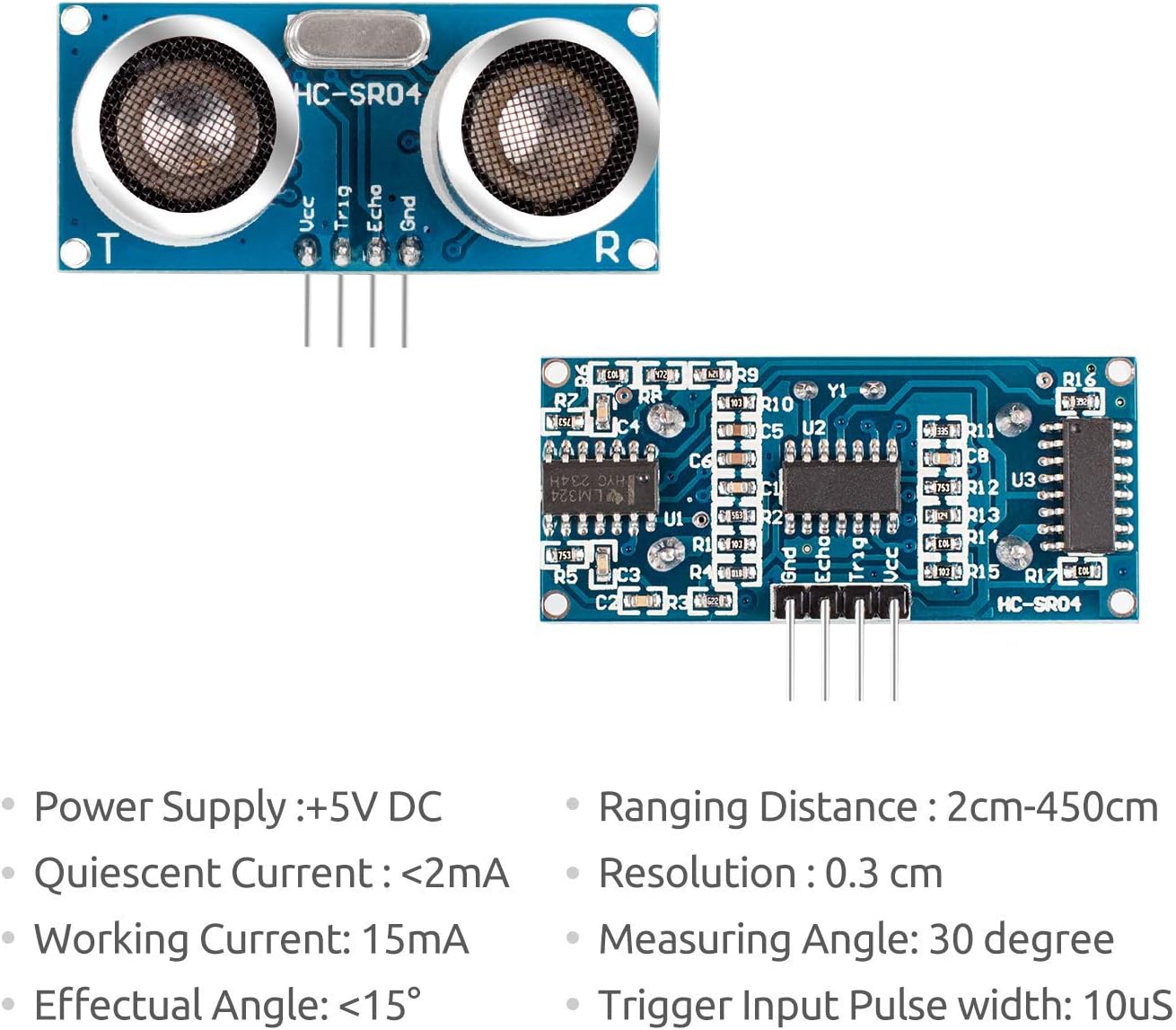

• Power Supply : 5V DC; Quiescent Current : <2mA,; Effectual Angle: <15° ; Detection Distance : 2cm~450 cm; Resolution : 0.3 cm
• Package Content: 5 HC-SR04 Ultrasonic Sensors , 10 Female-Male Dupont Cables , 10 Female-Female Dupont Cables , 1 Exquisite package box
