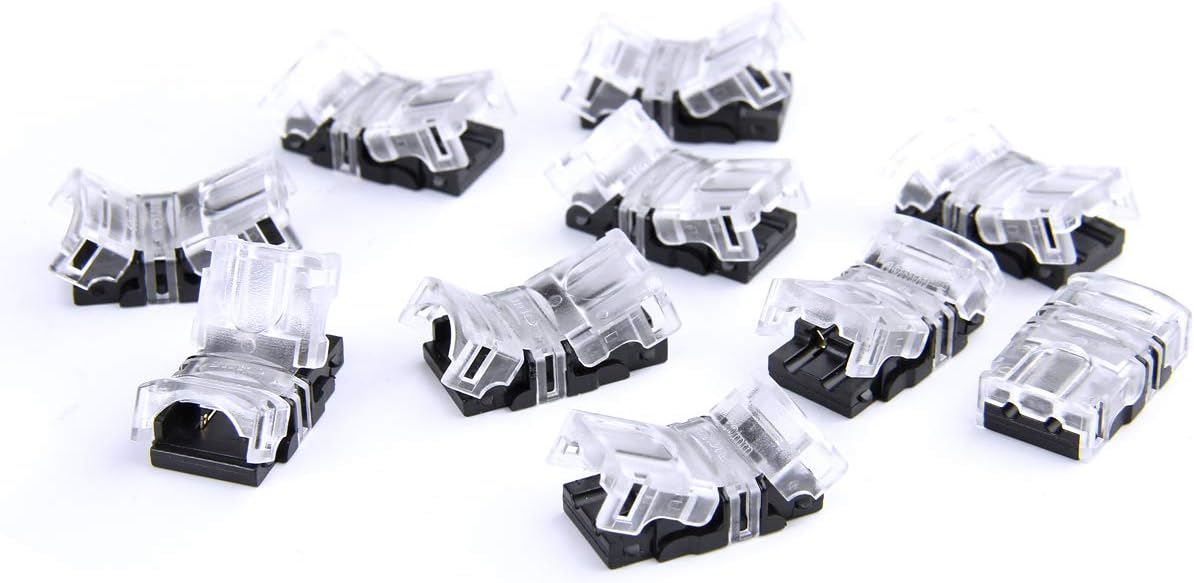

SUPERNIGHT 10 Pack 2 Pin LED Connector for Non-Waterproof 8mm 3528 2835 Single Color LED Strip Lights, Strip to Wire Quick Connection Without Stripping Wire

Specifications

About this product

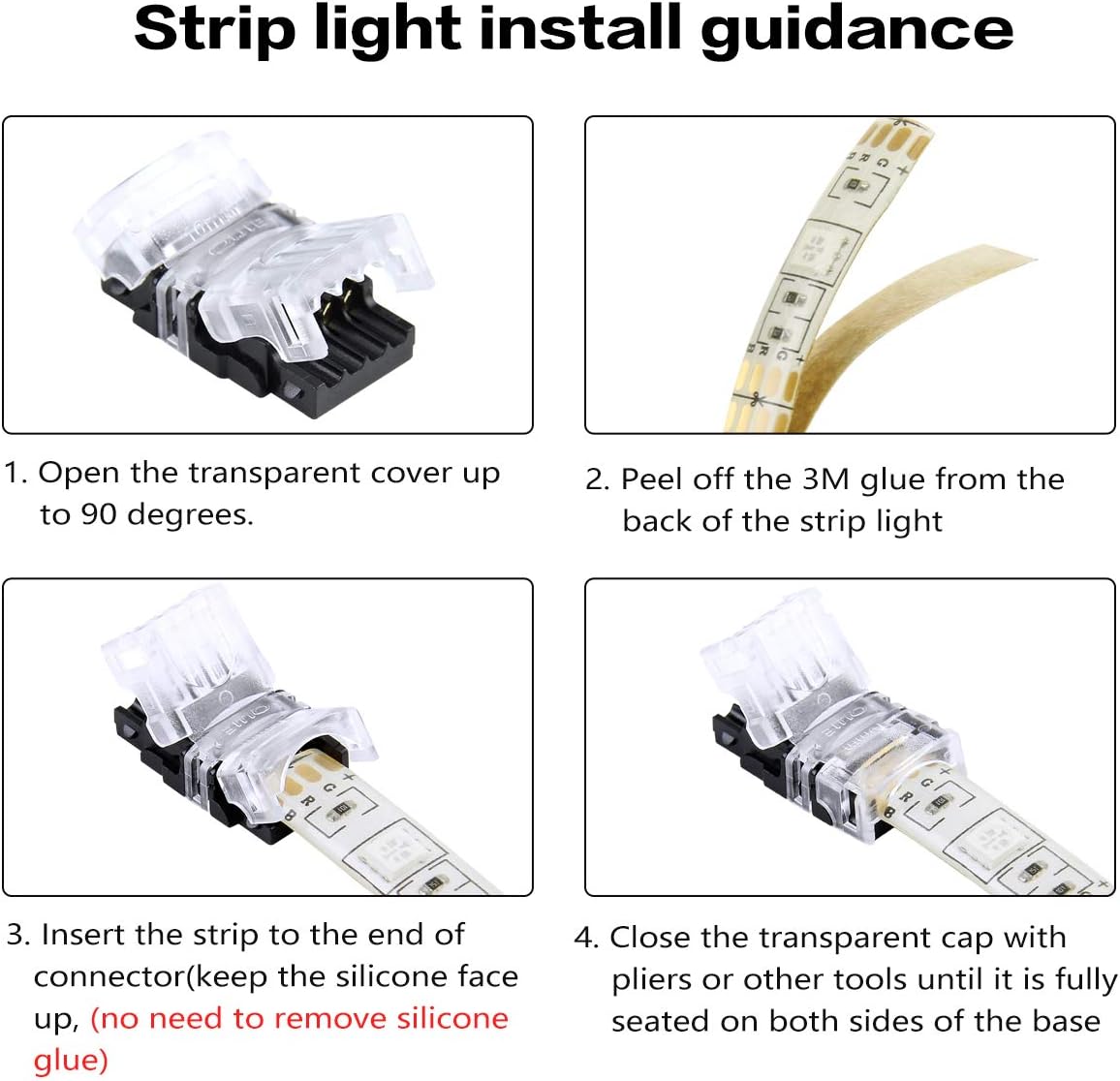

Improvement Connect--Insulation-Piercing Contact --The sharp pin of connector can pierce flexible PCB board on the backing of strip light and make contact inside PCB thickness without soldering. --The sharp pin of connector can pierce insulation of wire to contact conductor inside wire without stripping. NOTE: 1. Make sure your LED light strip is 8mm width 2 pin NON-WATERPROOF single color strip light. Not work for waterproof or 10mm width led strip lights. 2. Ensure your Wire Diameter is within range 20AWG-22AWG /0.34~0.75 mm2 and without stripping wire. Installation Guides --Strip End 1.Ensure your LED light strip is waterproof 10mm width and has 2 contacts (+, -). All contacts are clean and cut the strip straightly. 2.Open the transparent cover of connector up to 90 degrees. 3.Peel off the 3M tape around the cutting line area on the back of the LED strip, then insert the LED light strip into clasp side, with the 2 contacts of the LED strip sitting on the 2 pins of the clasp. --Wire End 1.Cut the desired wire length you need and separated the 2 wires (20-22AWG) around connection part. 2. Insert wires into the connector guide slot; Make sure that positive & negative on the strip light surface are corresponding to correct wires. 3.Close the transparent cap with a pliers until it is fully seated on both sides of the bottom base. Ensure the metal joint pierces through the wire insulation. (Note: No stripping wires. Positive wire is matched to "+" input power mark on the strip light surface) Tools Need: A pliers Package includes 10x Strip to Wire Connectors for 8mm Width Non-Waterproof 2 Pin LED Strip Light
