Tekpower
Tekpower Mastech MS8268 Digital AC/DC Auto/Manual Range Digital Multimeter Meter
See current price

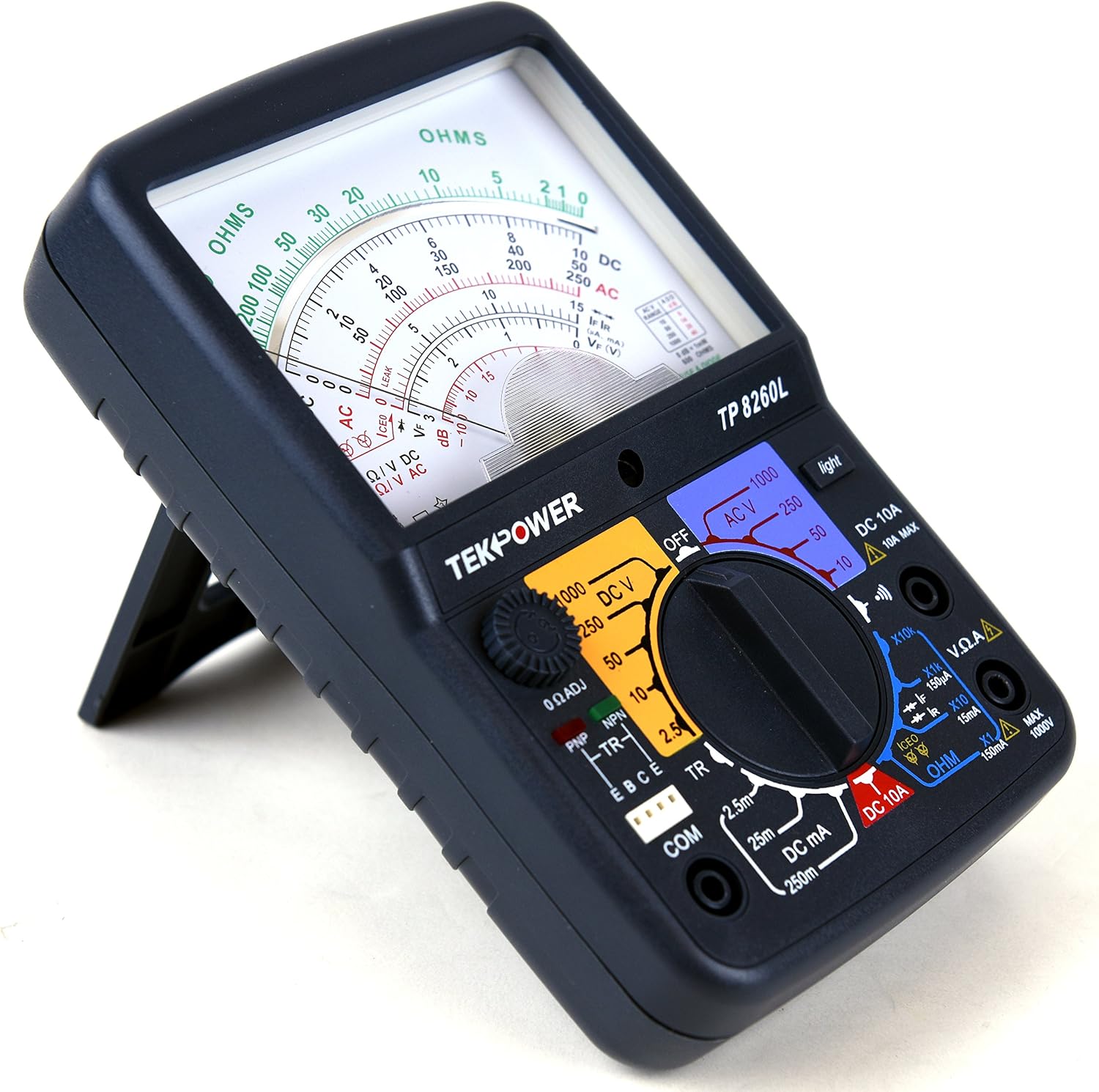

Tekpower TP8260L Analog Multimeter With Back Light, and Transistor Checking dock
See current price
Check the current price and availability on Amazon.com.
View on AmazonAffiliate link — we may earn a commission at no extra cost to you. Learn more
- Power Source
- Battery Powered
- Style
- Standard
- Color
- Black
- Item Weight
- 14 Ounces
Key features
- High accuracy & Ideal for AC and DC Voltage DC Current up to 10A
- Back light for use in dark, Decibel Value Measurement,Zero Adjustment
- The Transistor checker with PNP & NPN types and LED inidicator
- Confirms to the EN61010/IEC1010 standard CAT II 600V, 20Kohm/V,DC, 8Kohm/V AC
- Built in a strong protective case, it has 1 year warranty
Specifications
| Brand | Tekpower |
|---|---|
| Power Source | Battery Powered |
| Style | Standard |
| Color | Black |
| Item Weight | 14 Ounces |
| Item Dimensions LxWxH | 6.25 x 4 x 1.25 inches |
| Measurement Type | Multimeter |
| Manufacturer | Tekpower |
| Part Number | TP8260L |
| Product Dimensions | 6.25 x 4 x 1.25 inches |
| Item model number | TP8260L |
| Size | full size |
| Horsepower | 2 hp |
| Item Package Quantity | 1 |
| Number Of Pieces | 100 |
| Measurement System | Metric |
| Batteries Included? | No |
| Batteries Required? | No |
| ASIN | B00MJKS0EM |
About this product
The Tekpower TP8260L is a 20-Range Analog Multimeter, which you can use to measure AC/DC voltage, DC current, resistance, continuity, decibel values/dB and diode test. This meter is well known for its accuracy at its low DC voltage and current measurement, to measure a DC voltage up to 1000V, you have four ranges to choose, they are 2.5V, 10V, 50V,250Vand 1000V. For DC current, you can measure current as low as a few milli amps using the 2.5 mA range with 3% accuracy. The transistor dock is good for both PNP and NPN types. *General Specifications: *Power: 2 X AA, *Battery life: 10 hours of continuous use, *Dimensions: 6 1/2" X 3 1/2" X 1 1/2" *Weight: 14.3 Oz, *Fuses: 250 mA / 250 V & 10 A / 250 V. Technical Specifications: *DCV: 0 - 2.5V ± 3%/ 10 V / 50 V / 250 V / 1000V ± 3.0%, *ACV: 0 - 10 V / 50 V / 250 V / 500 V/1,000V ± 4.0%, *DCA: 2.5 mA / 25 mA / 250 mA / 10A ± 4.0%, (all ranges fused), *Resistance: 1-2K / 20K / 2M / 20M Ohm ± 3.0%, *Continuity, *Decibel value *Diode Test. Package includes: *TP8260L Analog Multimeter, *Test leads with shrouded plugs and capped tips, *User Manual
