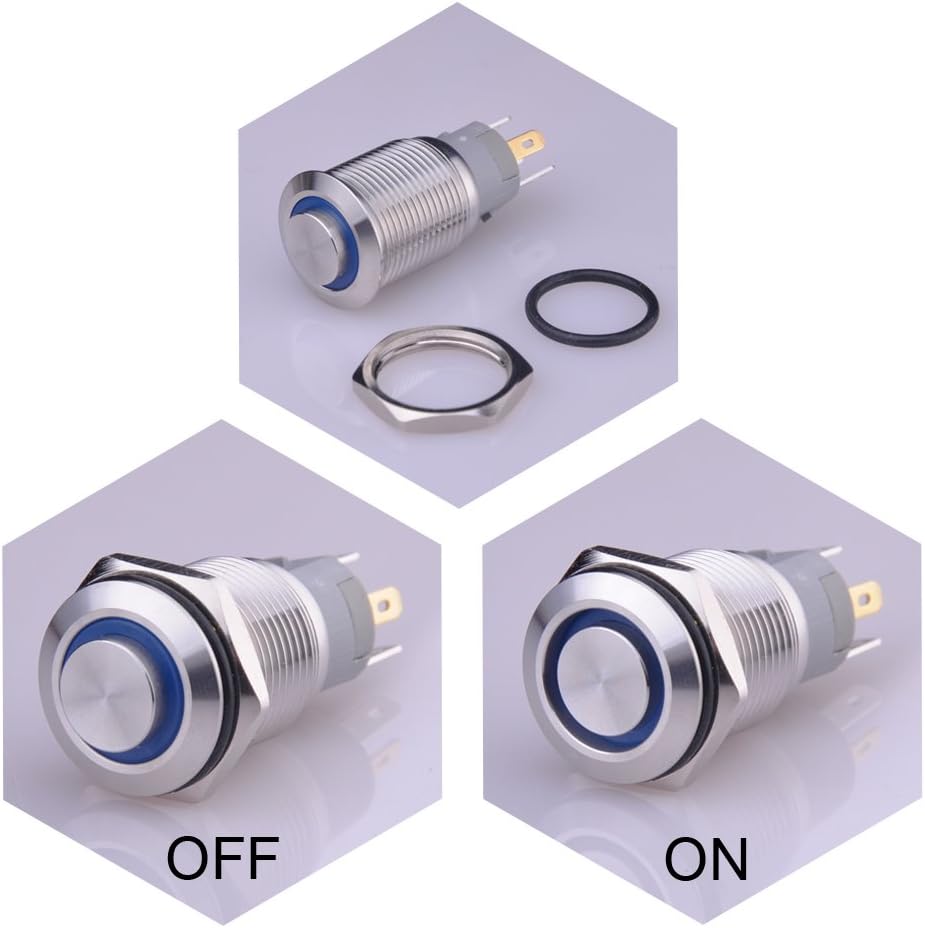

Ulincos® Latching Pushbutton Switch U16F2 1NO1NC SPDT ON/Off Silver Stainless Steel Shell with Blue LED Ring Suitable for 16mm 5/8" Mounting Hole (Blue)
See current price
Check the current price and availability on Amazon.com.
View on AmazonAffiliate link — we may earn a commission at no extra cost to you. Learn more
- Current Rating
- 5 Amps
- Operating Voltage
- 250 Volts
- Contact Type
- Spdt
- Connector Type
- Solder
Key features
- Latching switch: Push it, ON; Push it again, OFF
- Stainless steel shell,100% brand new and high quality,mechanical life for 500,000 cycles
- The switch and LED are separated, LED can be on all the time or only on when switch is on,depending on how you wire it
- Can be use as a switch for various additional electric equipment inside & outside the car.(Such as critical lights, chassis lamp, fog lamps, dome light)
- There is a wiring instruction in the packaging. You can get the wiring diagram in it, that can help you to install
Specifications
| Operation Mode | ON-NONE-OFF |
|---|---|
| Current Rating | 5 Amps |
| Operating Voltage | 250 Volts |
| Contact Type | Spdt |
| Connector Type | Solder |
| Brand | Ulincos |
| Terminal | Spdt |
| Actuator Type | Push Button |
| International Protection Rating | IP67 |
| Controller Type | Ring, Push Button |
| Control Method | App |
| Color | Blue |
| Unit Count | 1.0 Count |
| Number of Items | 1 |
| Manufacturer | Ulincos |
| Item Weight | 0.704 ounces |
| Package Dimensions | 1.97 x 1.97 x 0.39 inches |
| Item model number | U16F2SB |
| Manufacturer Part Number | U16F2SB |
| Mirror Lighting Type | led |
| ASIN | B0921X2TNL |
About this product
What You Get: 1 * pushbutton switch 1 * wiring instruction What's the Pushbutton Switch: This is a perfect choice if you are in need of a rugged push button! These metal push buttons are a very tough, small, panel-mount latching switch with an illuminated blue LED ring. It is a SPDT with 16mm threading and 1mm pitch. This button is perfect for basic On/Off functions. Overall length (including leads) is 1.3" and has small solder lugs for connection. These latched buttons are rated up to 5A and 250VAC while the LED is rated for 5-12V. What's the Latching Switch: Latching switch, push it down, it stays down and latched in the closed position, press the button again and it releases and "unlatches". What's the Latching Switch Used for: Most often latching switches are used for various additional electric equipment inside & outside the car.(Such as critical lights, chassis lamp, fog lamps, dome light) What's Note: * These switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged in the water. * The project and application you are going to be used for,don't let current go above 5 amps.Or the switch will get warm and to be burned out. What's the Customer Support: If you have any questions, feel free to contact us by E-mail any time.We get professional customer service staff and technician to help you. Specifications: Thread depth: 5/8" (16mm)Head diameter: 3/4" ( 18mm ) Button diameter: 0.36" ( 9mm ) Mounting hole size: 5/8" ( 16mm ) Depth inc contacts: 1.3" ( 34mm ) Switch combination: 1NO1NC Operation types: Latching Switch rating: 5A/250VAC, 5A/30VDC LED rating: 15mA, AC/DC 12V LED color : Blue Head shape : High flush Enclosure material : Stainless steel Protection level: IP67,IK10
