[Upgraded] AURSINC NanoVNA-H Vector Network Analyzer 10KHz -1.5GHz Latest HW Version 3.6 | HF VHF UHF Antenna Analyzer Measuring S Parameters, Voltage Standing Wave Ratio, Phase, Delay, Smith Chart

Key features

• [2022 UPGRADED HW V3.6] NEW HW VERSION: V3.6 with MicroSD card port now can have the measurement data or the screenshots saved in the it at anytime. Added battery circuit management, more secure. Redesigned PCB, you can connect to mobile phone with Type C-Type C cable( original PCB needs OTG cable), see a clear HD image on your phone. Added a case, which is protective and dust-proof. Disply: 2.8 inch TFT (320 x240)
• [IMPROVED FREQUENCY ALGORITHM: The improved frequency algorithm can use the odd harmonic extension of si5351 to support the measurement frequency up to 1.5GHz. The 50K-300MHz frequency range of the si5351 direct output provides better than 70dB dynamic, The extended 300M-900MHz band provides better than 60dB of dynamics, and the 900M-1.5GHz band is better than 40dB of dynamics

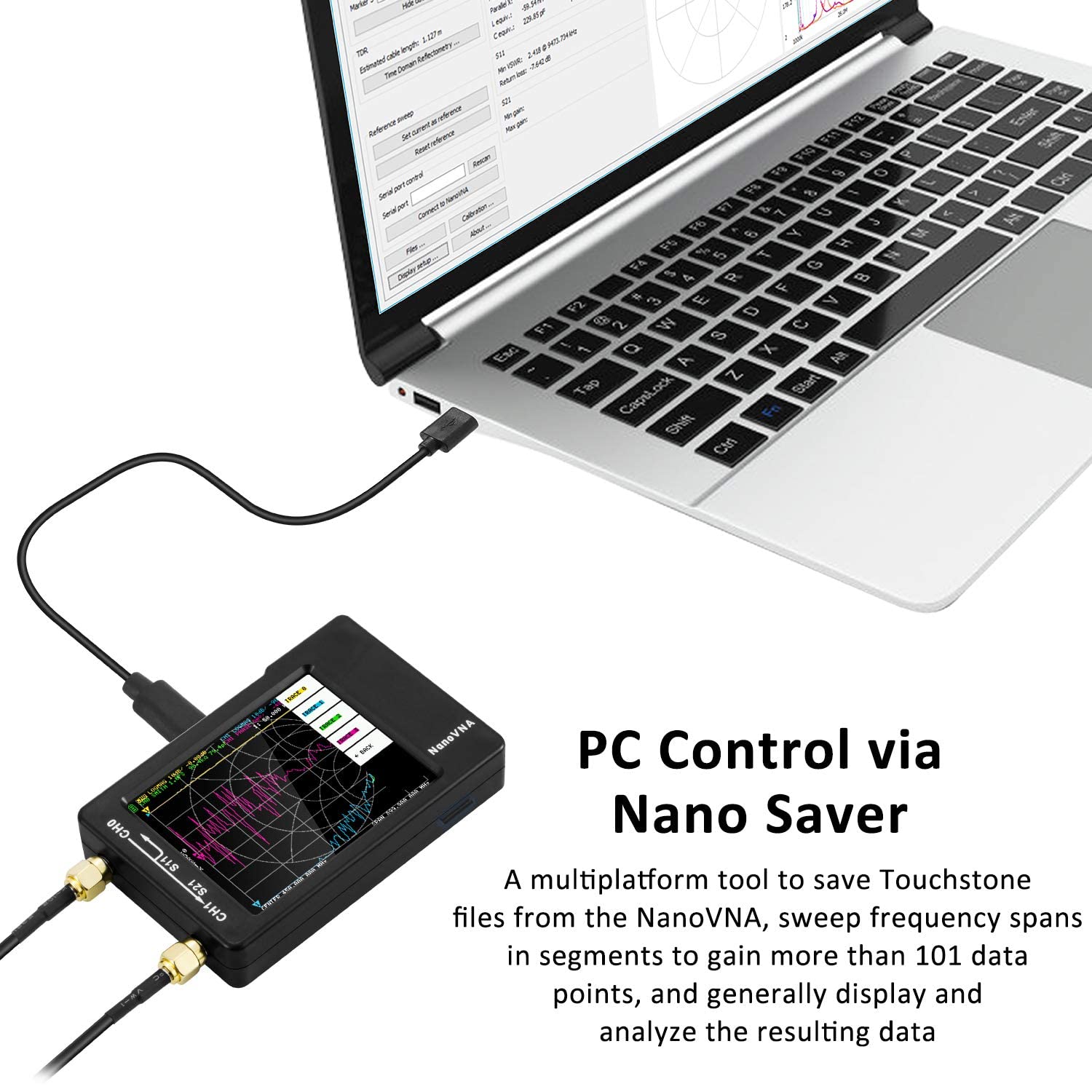

• [MULTIPLE FUNCTIONS] The default firmware main function is used for antenna performance measurement. The TX/RX method can measure the complete S11 and S21 parameters. If you need to obtain S12 and S22, you need to manually replace the transceiver port wiring. Designed a practical and simple control application on PC, you can download touchstone(SNP) files for radio design and simulation software
• [STRONG AND SECURE POWER SUPPLY] This VNA is battery powered or USB powered; Built in 650mAh battery, could work for 2 hours continuously, if need extra working time, it can be connected to power bank or power source.
• NOTE: Our nanovna is only compatible with low-speed and supports SPI mode SD card for now ; Package include NanoVNA host (with battery) display: 2.8 inch TFT x1, USB Type-C data cable x1, 30mm SMA male to male RG174 RF cable x2, SMA simple calibration kit x1, SMA female to female connector x1
