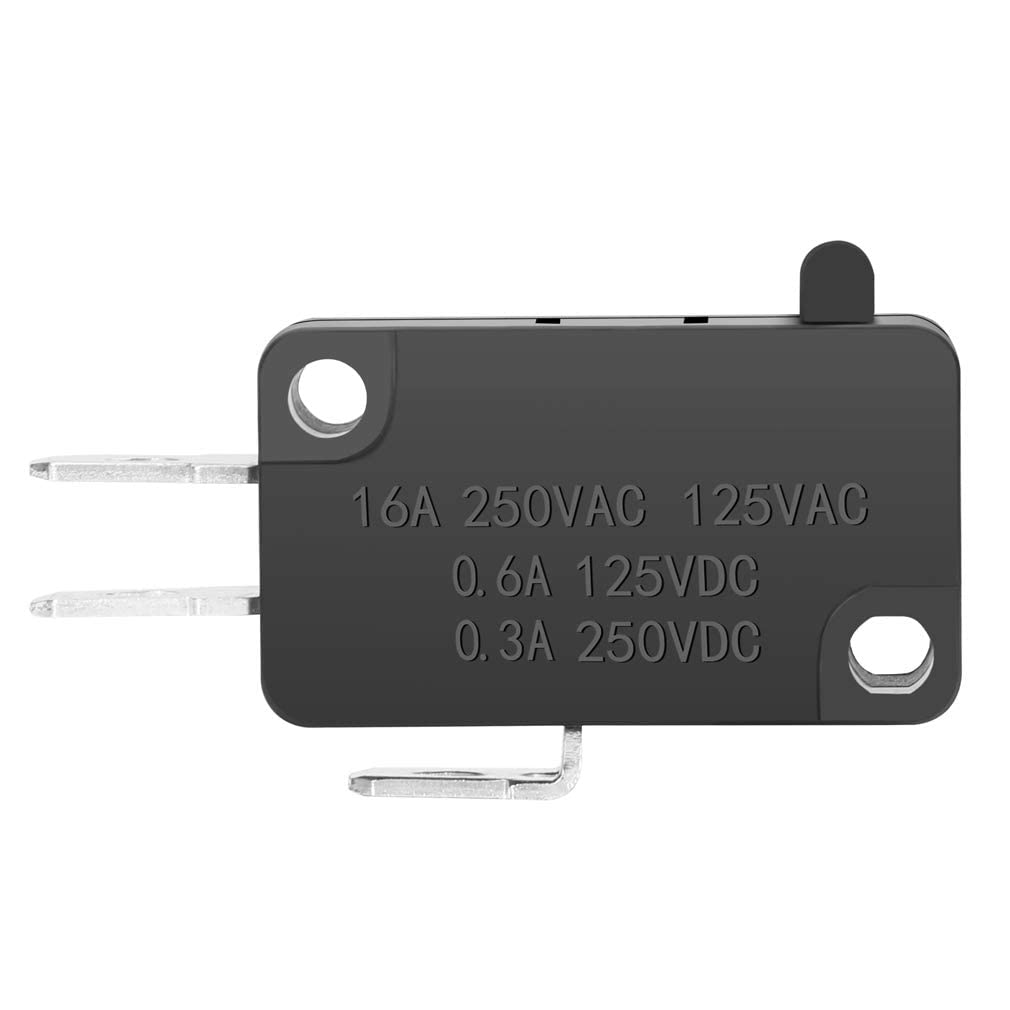

125V/250V 16A SPDT Snap Action Button Micro Limit Switch for Microwave Oven Door Arcade KW3 by MUZHI(12Pack)
See current price
Check the current price and availability on Amazon.com.
View on AmazonAffiliate link — we may earn a commission at no extra cost to you. Learn more
- Current Rating
- 16 Amps
- Operating Voltage
- 250 Volts
- Contact Type
- Spdt
- Brand
- MXRS
Key features
- Model: V-15-1C25
- Contact Type：SPDT 1NO 1NC , Actuator TypePush Button , Max. Rating: DC 0. 6A 125V DC 0. 3A 250V AC 15A 1/2HP 125V/250V
- Switch Body Size(Each):4 x 2.3 x1.1cm/1.6" x 0.9" x 0.43"(L*W*T) , Fixing Holes Diameter:3.5mm / 0.14" , Button Height: 0. 3cm / 0. 12"
- Country of Manufacture: CHINA; Material: Plastic, Metal;
- Package Content ：12 Pcs x V-15-1C25 Micro Switch
Specifications
| Operation Mode | ON-OFF |
|---|---|
| Current Rating | 16 Amps |
| Operating Voltage | 250 Volts |
| Contact Type | Spdt |
| Brand | MXRS |
| Switch Type | Push Button |
| Terminal | Button |
| Material | Plastic, Metal |
| Mounting Type | Door Mount |
| International Protection Rating | IP00 |
| Manufacturer | MXRS |
| ASIN | B08MTJ682H |
About this product
Product Name ： Micro limit Switch Color: black and silver; Model: V-15-1C25 Contact Type： SPDT 1NO 1NC , Actuator TypePush Button , Max. Rating: DC 0. 6A 125V DC 0. 3A 250V AC 15A 1/2HP 125V/250V; Switch Body Size(Each): 4 x 2.3 x1.1cm/1.6" x 0.9" x 0.43"(L*W*T) , Fixing Holes Diameter: 3.5mm / 0.14" , Button Height: 0. 3cm / 0. 12" Country of Manufacture: CHINA; Material: Plastic, Metal; Package Content ： 6 Pcs x V-15-1C25 Micro Switch
